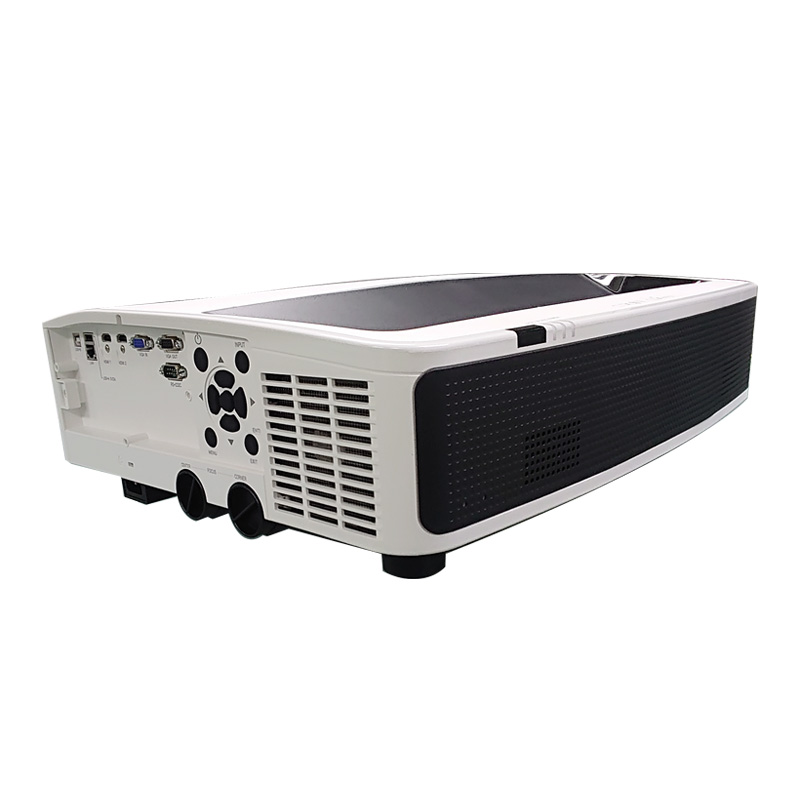

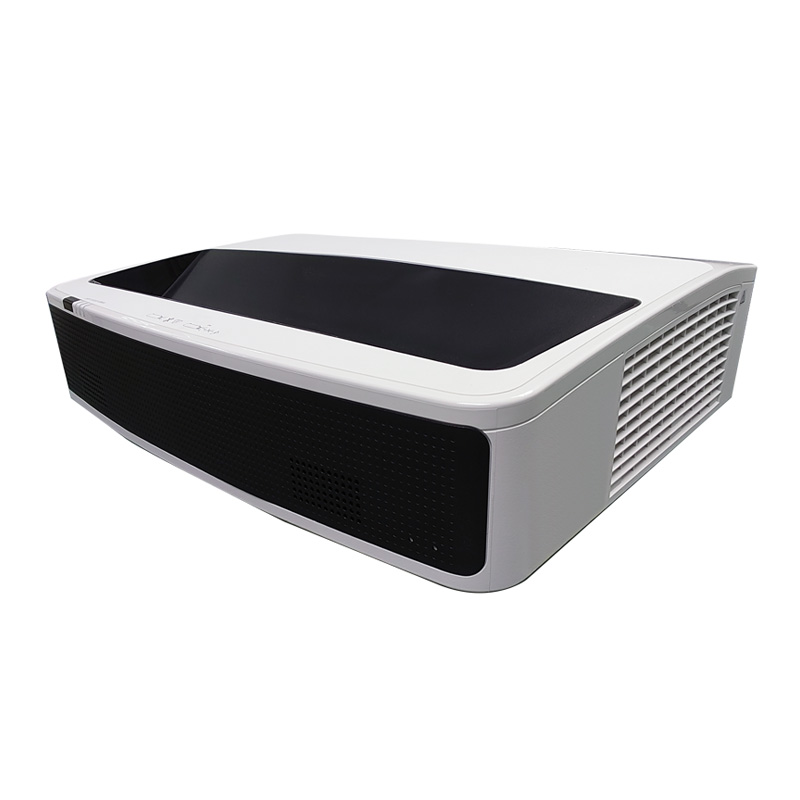

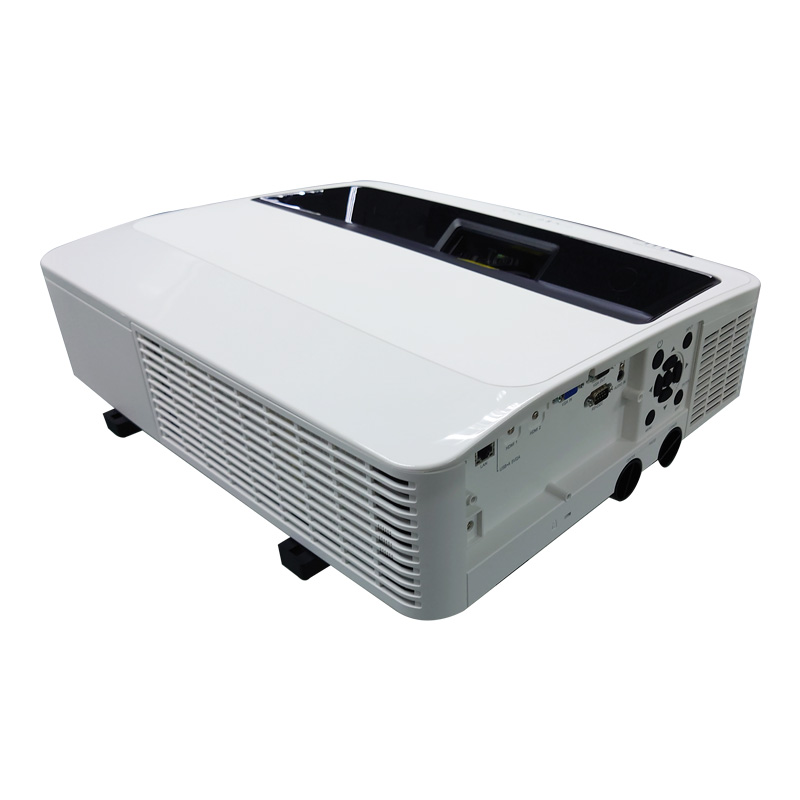

EK-65LU 3LCD Ultra Short Throw Laser Projector

6,500 Lumens
WUXGA (1920 x 1200)
Laser Light Source
Ultra Short Throw Lens
3LCD

Categories: 4K Ready, 5,000 - 7,000 Lumen Projectors, Classroom Projectors, EIKI Projectors, Fixed Lens Projectors, Laser Projectors, LCD Projectors, Meeting Room Projectors, Short Throw Projectors, Widescreen Projectors, WUXGA

Features
Specifications
Downloads
Lens Calculator
Related Products

Features

EK-65LU

Ultra Short Throw Laser Projector
6,500 Lumens / WUXGA / 3LCD

6,500 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
High brightness and contrast with long life 20,000 hour Laser Light Source.
Ultra Short Throw (0.235:1) manual focus lens.
10-bit color processing, for superior color reproduction.
Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
Supports 4K video input via HDMI.
Horizontal, Vertical & Corner Keystone Correction.
Pincushion/Barrel & 6 point Geometric Correction.
Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
Wired network control and monitoring.

Specifications

Brightness	6,500 lumens
Contrast Ratio	5,000,000:1
Display Technology	3LCD
Panel Size	0.64″ inorganic
Native Resolution	WUXGA (1920×1200)
Max. Computer Input	4K (3840×2160)
Max. Video Input	1080p
Lens Type (Throw:Width)	0.235:1
Keystone Correction	U/D 5°; L/R 5°

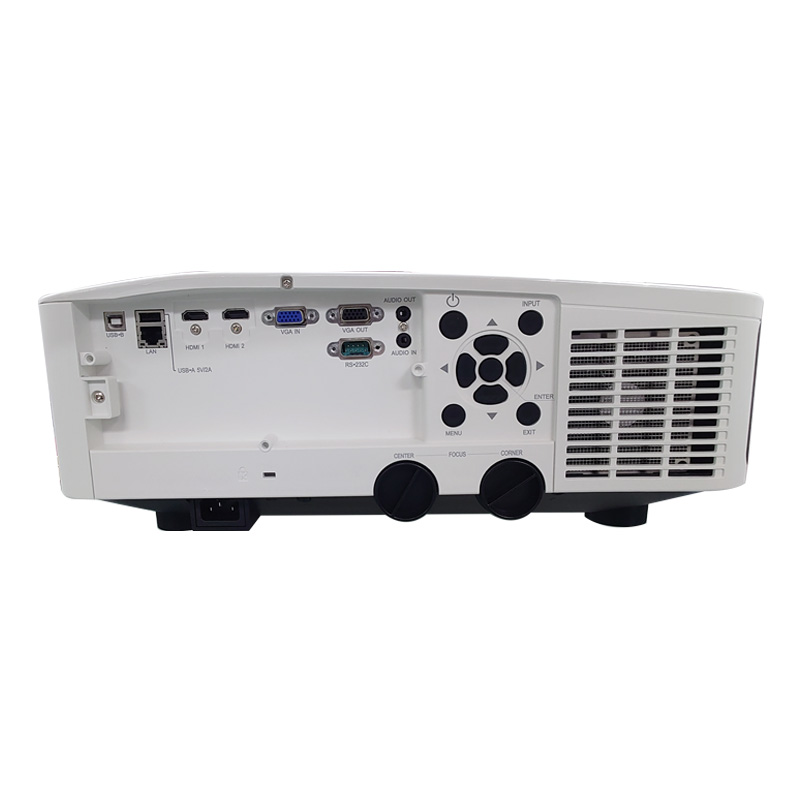

Inputs	HDMI x 2; Dsub15 x 1; USB-A x 1; USB-B x 1; MiniStereo x 1
Outputs	Dsub15 x 1; MiniStereo x 1
Sound System	16 Watt amplifier and speaker system
Network Control	Wired LAN monitor & control

Downloads

Lens Calculator

Use the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.

Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.

Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.

EK-65LU 3LCD Ultra Short Throw Laser Projector

EK-65LU

Ultra Short Throw Laser Projector 6,500 Lumens / WUXGA / 3LCD

0173-4293 Universal Ceiling Mount

0173-5026 Ultra Short Throw Universal Wall Mount Kit

63340119 Filter

63910016 Remote
