EK-700LU 3LCD Laser Projector
7,000 Lumens
WUXGA (1920 x 1200)
Laser Light Source
3LCD
- Features
- Downloads
- Lens Calculator
- Related Products

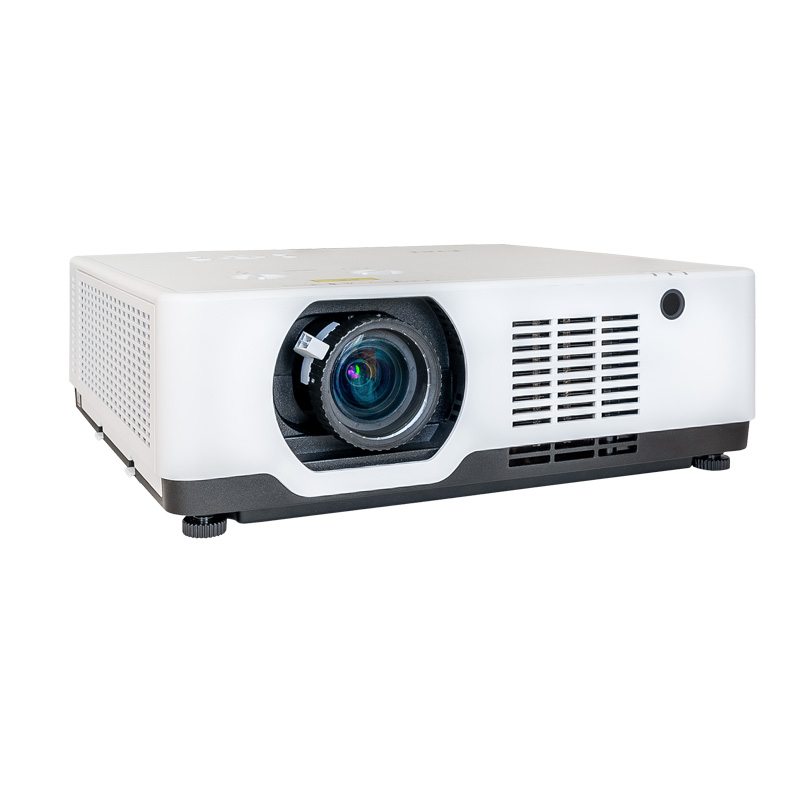

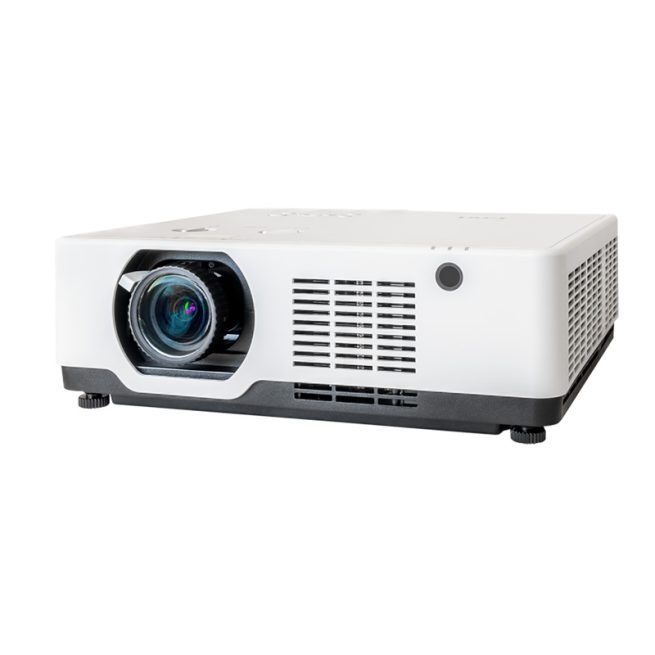

EK-700LU
Conference Series Laser Projector
7,000 Lumens / WUXGA / 3LCD
- 7,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
- High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
- 10-bit color processing, for superior color reproduction.
- Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
- Supports analog and digital video input in all color standards up-to 1080p.
- Supports 4K video input via HDMI.
- Convenient mid-range (1.6:1) manual zoom and focus lens.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6 point Geometric Correction.

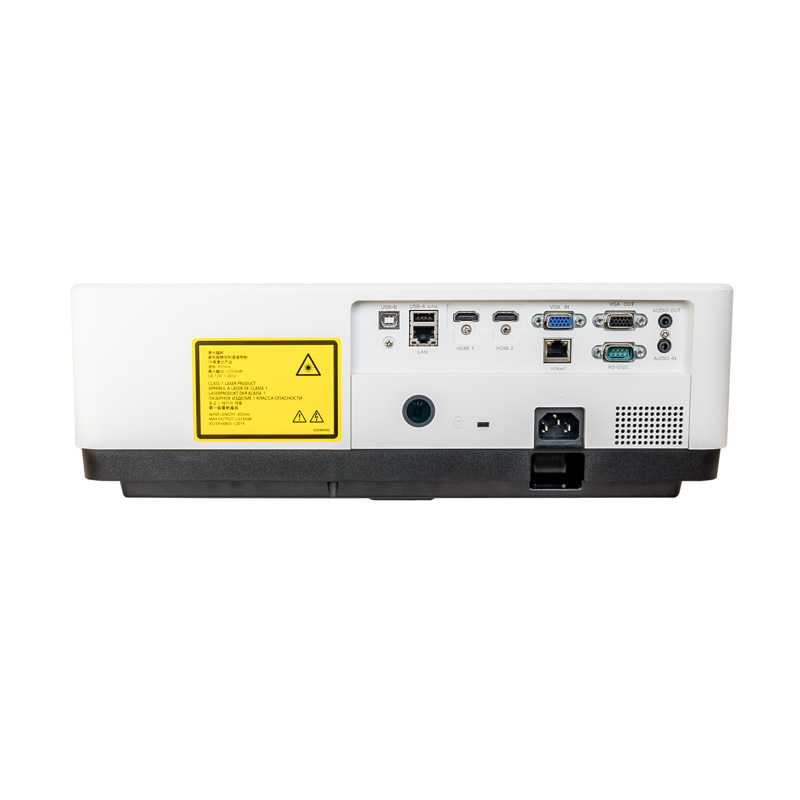

- Horizontal & Vertical Manual Lens Shift. Wired network control.
- Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
- Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
CAD Drawing - EK-700LU, EK-720LU
10.52 MB pdfHi-Res Images - EK-700LU, EK-720LU
3.69 MB zipLens Chart - EK-700LU, EK-720LU
66.12 KB pdfOwner's Manual - EK-700LU, EK-720LU
21.98 MB pdfQuick Start Guide
4.25 MB pdfRemote Control Codes - EK-700LU, EK-720LU
156.53 KB pdfRS232 Commands - EK-700LU, EK-720LU
98.62 KB pdfColor Data Sheet
283.88 KB pdfSpecifications
108.14 KB pdfUse the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.
Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.
Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.
63340119 Filter
Replacement Filter
C835, C735, C735P/PS
EK-820LU, EK-720LU, EK-700LU,
EK-65LU, EK-55LU
