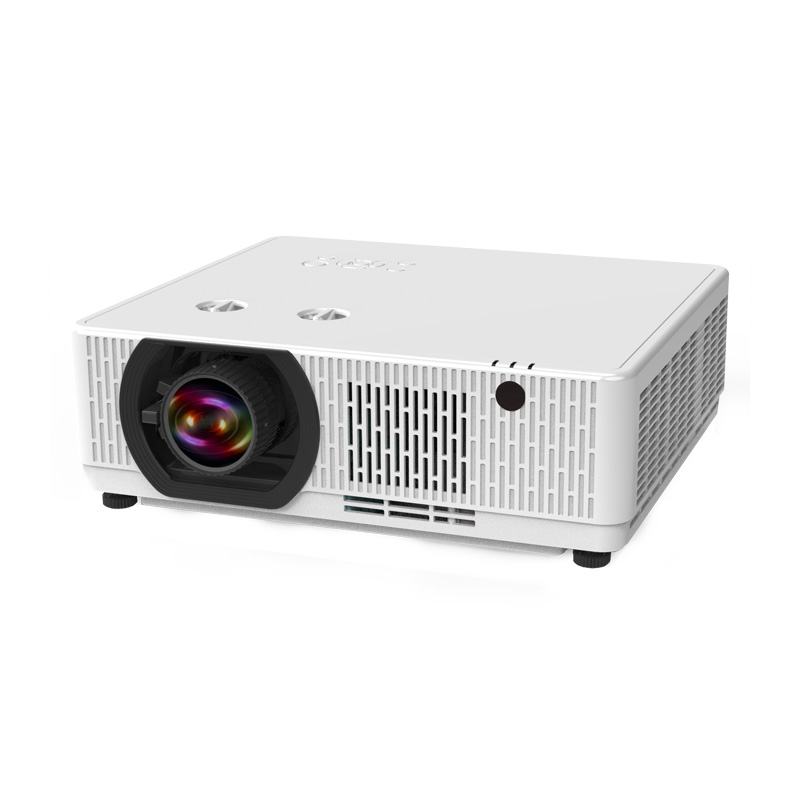

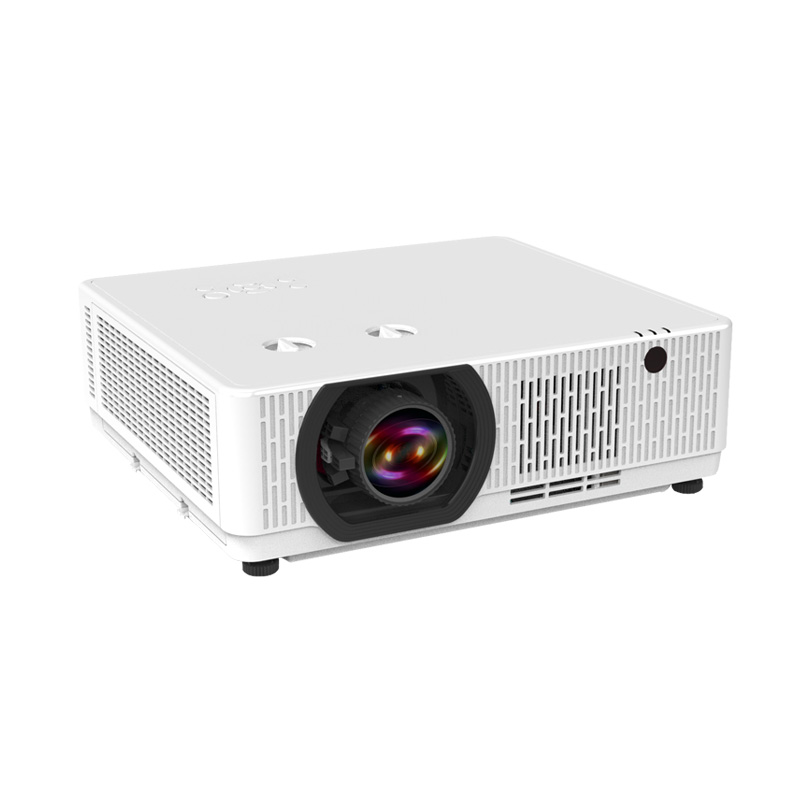

EK-820LU 3LCD Laser Projector
8,200 Lumens
WUXGA (1920 x 1200)
Laser Light Source
3LCD
EK-820LU
Conference Series Laser Projector
8,200 Lumens / WUXGA / 3LCD
- 8,200 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
- High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
- 10-bit color processing, for superior color reproduction.
- Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
- Supports analog and digital video input in all color standards up-to 1080p.
- Supports 4K video input via HDMI.
- Convenient mid-range (1.6:1) manual zoom and focus lens.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6 point Geometric Correction.
- Horizontal & Vertical Manual Lens Shift. Wired network control.
- Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
- Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.
| Brightness | 8,200 lumens |
|---|---|
| Contrast Ratio | 5,000,000:1 |
| Display Technology | 3LCD |
| Panel Size | 0.64″ inorganic |
| Native Resolution | WUXGA (1920×1200) |
| Max. Computer Input | 4K (3840×2160) |
| Max. Video Input | 1080p |
| Lens Type (Throw:Width) | 1.22-1.98:1 |
| Lens Shift | U/D +60%; L/R +/- 29% |
| Keystone Correction | U/D 30°; L/R 30° |

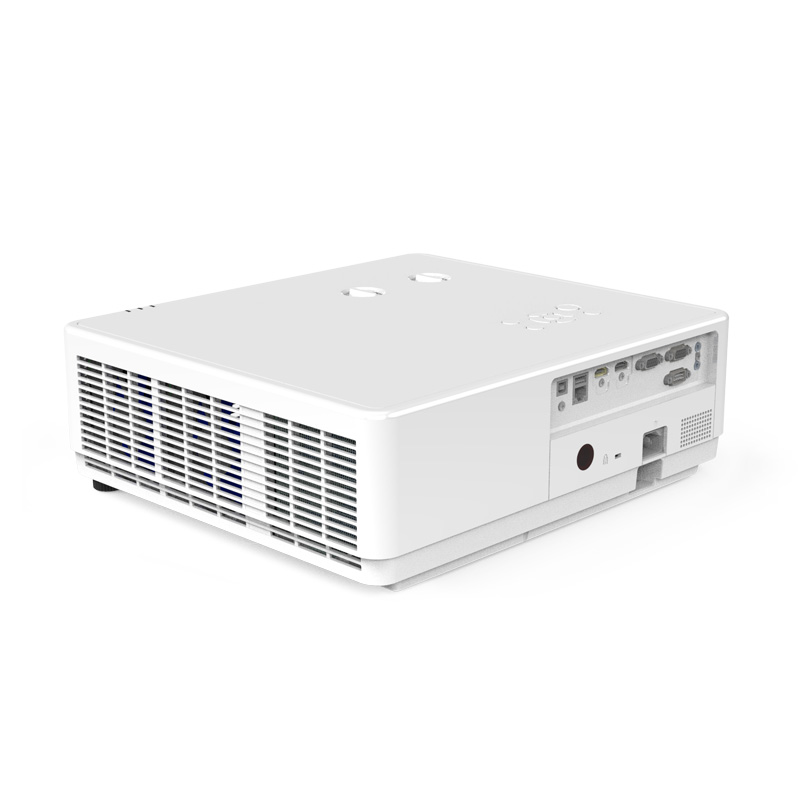

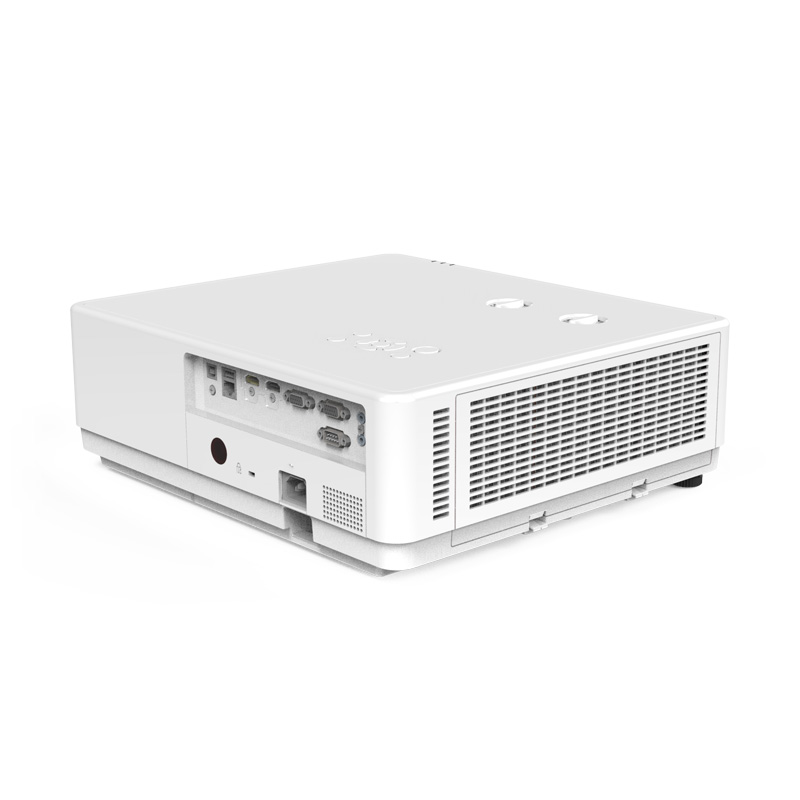

| Inputs | HDMI x 2; Dsub15 x 1; HDBaseT RJ45 x 1; USB-A x 1; USB-B x 1; MiniStereo x 1; |
| Outputs | Dsub15 x 1; MiniStereo x 1 |
| Sound System | 16 Watt amplifier and speaker system |
| Network Control | Wired LAN monitor & control |
CAD Drawing
2.22 MB pdf
Color Data Sheet
1.18 MB pdf
Hi-Res Images
2.41 MB zip
Owner's Manual
27.52 MB pdf
Quick Start Guide
6.25 MB pdf
Remote Control Codes
176.34 KB pdf
RS232 Commands
125.69 KB pdf
Specifications
111.41 KB pdfUse the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.
Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.
Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.
