C602S 3LCD Short Throw Laser Projector

6,000 Lumens
WUXGA (1920 x 1200)
Laser Light Source
Short Throw Lens
3LCD

Categories: 4K Ready, 5,000 - 7,000 Lumen Projectors, Classroom Projectors, EIKI Projectors, Fixed Lens Projectors, Laser Projectors, LCD Projectors, Meeting Room Projectors, Short Throw Projectors, Simulator Projectors, Widescreen Projectors, WUXGA

Features
Specifications
Downloads
Lens Calculator
Related Products

Features

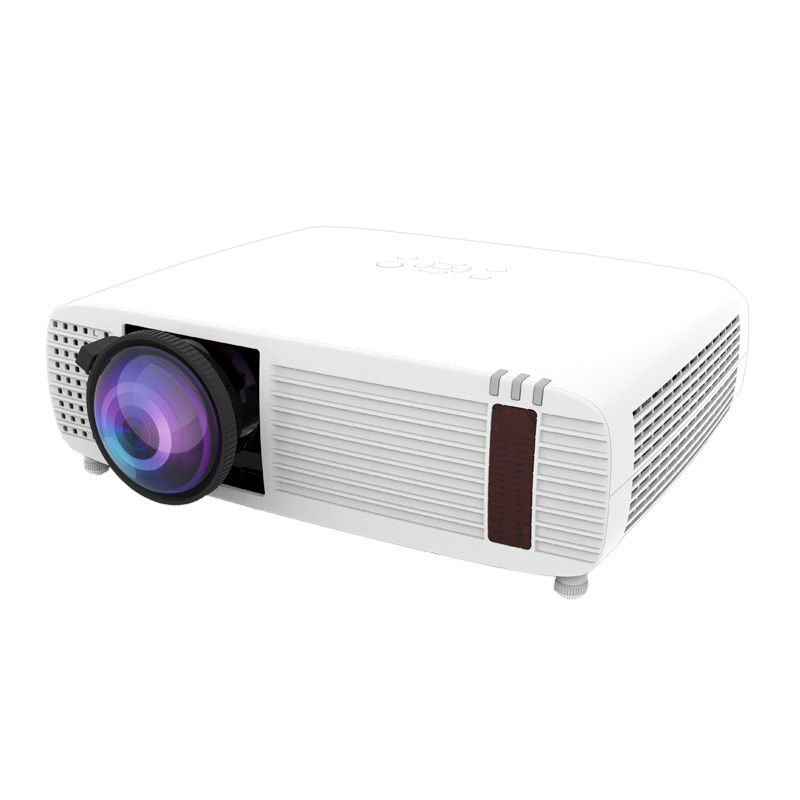

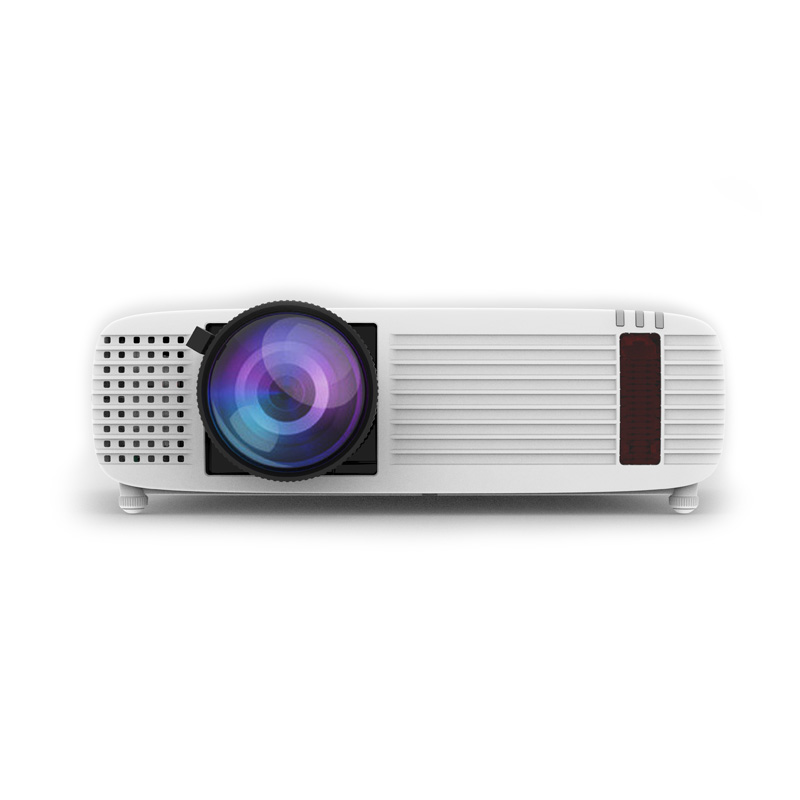

C602S

Short Throw Laser Projector
6,000 Lumens / WUXGA / 3LCD

6,000 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
High brightness and contrast with long life 20,000 hour Laser Light Source.
10-bit color processing, for superior color reproduction.
Native WUXGA resolution. Compatible with inputs up-to UXGA, WUXGA and 4K.
Supports analog and digital video input in all color standards up-to 1080p.
Supports 4K (3840×2160@60Hz) video input via HDMI.
Short Throw Lens (0.679-0.82:1) with manual zoom and focus.
Horizontal, Vertical & Corner Keystone Correction.
Pincushion/Barrel & 6 point Geometric Correction.
Vertical Manual Lens Shift. Wired network control.
Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
Built-in 16 Watt amplifier and speaker system. Closed Caption decoding.

Specifications

Brightness	6,000 lumens
Contrast Ratio	5,000,000:1
Display Technology	3LCD
Panel Size	0.64″ inorganic
Native Resolution	WUXGA (1920×1200)
Max. Computer Input	4K (3840×2160)
Max. Video Input	1080p
Lens Type (Throw:Width)	0.679-0.82:1
Lens Shift	U/D +50%
Keystone Correction	U/D 30°; L/R 30°
Inputs	HDMI x 2; Dsub15 x 1; USB-A x 1; USB-B x 1; MiniStereo x 1
Outputs	Dsub15 x 1; HDMI x 1; MiniStereo x 1
Sound System	16 Watt amplifier and speaker system
Network Control	Wired LAN monitor & control

Downloads

Lens Calculator

Use the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.

Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.

Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.

C602S 3LCD Short Throw Laser Projector

C602S

Short Throw Laser Projector 6,000 Lumens / WUXGA / 3LCD

0173-4293 Universal Ceiling Mount

63340228 Filter

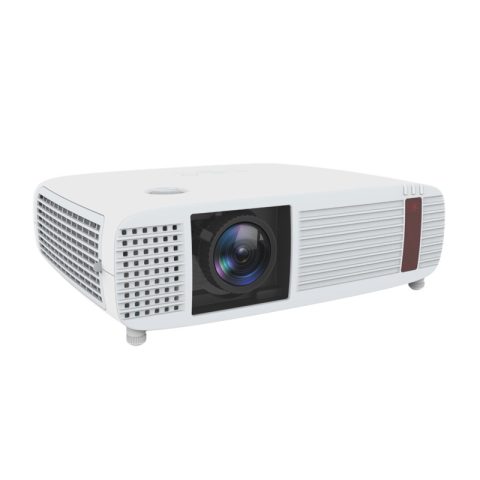

C602 3LCD Laser Projector
