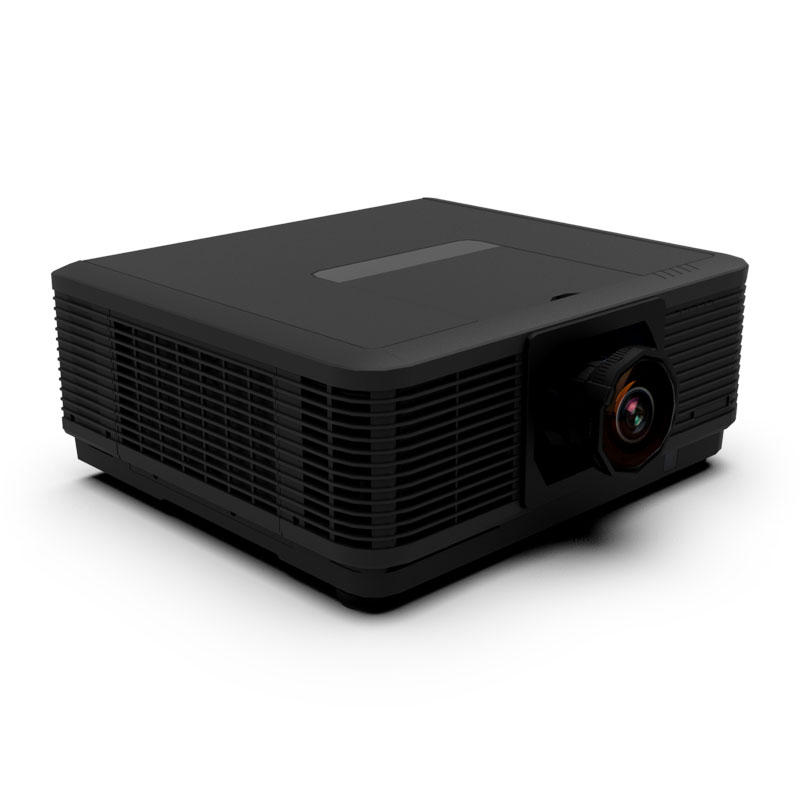

S1002P 3LCD Laser Projector
9,000 Lumens
4K Enhanced
Laser Light Source
3LCD
S1002P
4K Enhanced Optional Lens Laser Projector
9,000 Lumens / WUXGA with 4K Enhancement / 3LCD
- 9,000 center lumens bright with 80% uniformity and a 5,000,000:1 contrast ratio.
- WUXGA with 4K Enhancement doubles HD video resolution for sharper, more detailed picture.
- High brightness and contrast with long life 20,000 hour Laser + Phosphor Light Source.
- Supports digital video input in all color standards up-to 4K (3840×2400@60Hz).
- 10-bit color processing, for superior color reproduction.
- Horizontal, Vertical & Corner Keystone Correction.
- Pincushion/Barrel & 6 point Geometric Correction.
- Horizontal & Vertical Manual Lens Shift. Edge Blending.
- Wired network monitoring and control.
- Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
- Low maintenance filter-less design with sealed optical engine.
- 3 year Projector warranty. 20,000 hour Laser Light Engine warranty.
| Brightness | 9,000 lumens |
|---|---|
| Contrast Ratio | 5,000,000:1 |
| Display Technology | 3LCD |
| Panel Size | 0.64″ inorganic |
| Native Resolution | WUXGA (1920×1200) with 4K Enhancement |
| Max. Computer Input | 4K (3840 x 2400) |
| Max. Video Input | 1080p, 4K UHD, 4K DCI |
| Lens Shift | Manual Lens Shift – see Lens chart for shift range |
| Keystone Correction | U/D 30°; L/R 30° |

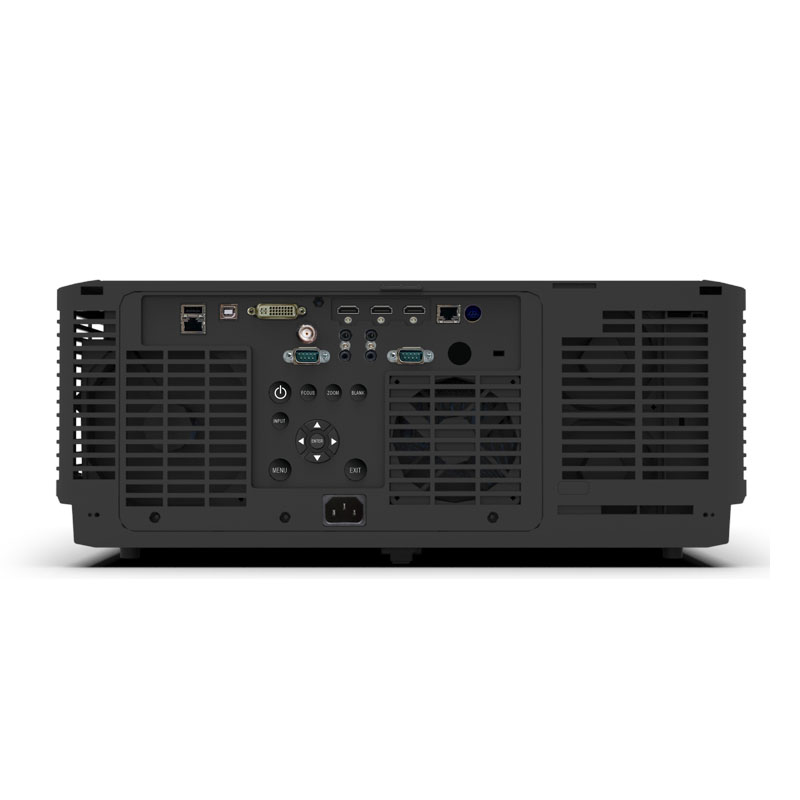

| Inputs | HDMI x 2; DVI-D (w/ HDCP) x 1; HDBaseT RJ45 x 1; 3G-SDI BNC x 1; USB-A x 1; USB-B x 1; MiniStereo x 1; |
| Outputs | HDMI x 1; MiniStereo x 1 |
| Network Control | Wired LAN monitor & control |
CAD Drawing
2.00 MB pdf
Color Data Sheet
1.80 MB pdf
Lens Chart
81.67 KB pdf
Removing the Lens Shift Cover
1.25 MB pdf
Owner's Manual
32.89 MB pdf
Quick Start Guide
5.39 MB pdf
Remote Control Codes
116.05 KB pdf
RS232 Commands
123.62 KB pdf
Specifications
95.24 KB pdfUse the Lens Calculator to calculate the image size and throw distance of a projector and lens combination.
Know the screen size required?
Use the Lens Calculator to find the throw distance, from the front of the projector lens to the screen, required to produce that image size with the available lenses.
Starting with a specific Throw Distance?
The Lens Calculator will show you the screen sizes available from that distance with the projector and lens combinations available.
0173-5042 Universal Heavy Duty Ceiling Mount
Universal Heavy Duty Ceiling Projector Mount
63910038 Remote
Remote control - Infrared & Wired w/ Laser Pointer
AH-S21030 Lens
Manual Zoom & Focus Lens
FL: 0.60~0.97" (15.3~24.6 mm)
f: 1.52~2.02
T:W 1.08~1.76:1
AH-S22070 Lens
Power Zoom & Focus Lens
FL: 0.38~0.46" (9.66~11.65 mm)
f: 1.7~1.8
T:W 0.68~0.82:1
AH-S24010 Lens
Manual Zoom & Focus Lens
FL: 0.95~1.64" (24.47~41.60 mm)
f: 1.6~1.98
T:W 1.74~2.97:1
