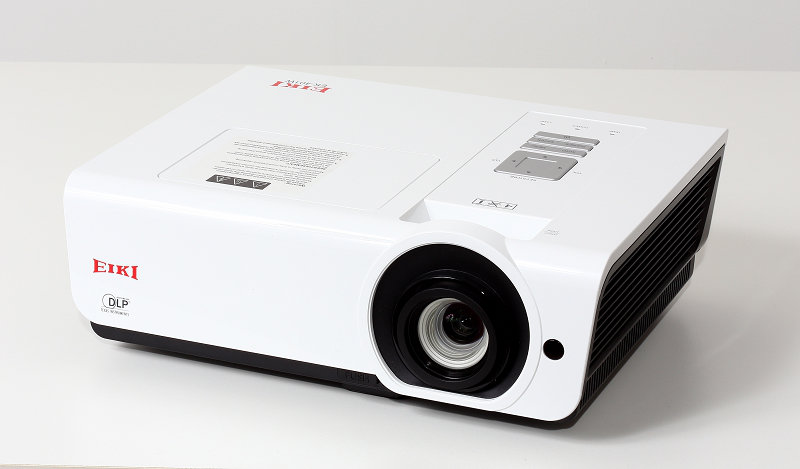

EK-400XA DLP® Projector

Key Features

  • 5,500 ANSI lumens bright with 80% uniformity and a 12,500:1 contrast ratio.
  • HDMI and Displayport Digital connectivity with HDCP compliance.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Compatible with Crestron RoomView™ & AMX Device Discovery Technology.
  • Manual zoom and focus lens. Fixed image offset.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 3 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network monitoring and control. Digital zoom: 50% to 400%.
  • 3D Function (glasses not included).
  • Top-accessed lamp for ease of maintenance.
  • Custom warm-up screen. Auto input selection.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 years / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Soft Carry Bag, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview


Display Technology 0.7" DMD™ DLP® chip x 1
Brightness (ANSI) 5,500 ANSI Lumens
Native Resolution XGA (1024 x 768)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 12,500:1 (Dynamic Eco mode)
Panel Size 0.67"
Lens Type (Throw:Width) Attached - Manual Zoom & Focus Lens (1.43 - 2.14:1)
Lens Shift -
Keystone Correction Digital: up-to 40° Up or Down
Inputs Dsub15 x 2 (component via optional adapter); HDMI x 2; Display Port x 1; S-Video x 1; RCA x 1 (composite); MiniStereo x 1 (computer audio); RCA x 2 (video audio);
Outputs Dsub15 x 1; Variable, Stereo: MiniStereo x 1
Sound System Mono 3 Watt amp; 1.4 in (3.7 cm) speaker x 1 (Mono)
Network Control Wired network monitoring and control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 4,000 hours
Lamp Part #
Fan Noise as low as 35 dBa
Air Filter -
Maximum Pitch up-to 15° Up or Down
Weight 8.4 lb (3.8 kg)
Ceiling Mount Part #  0173-5029
Icon of EK-400XA  Color Data SheetEK-400XA Color Data SheetEK-400XA Color Data Sheet1.9 MBPDF
Icon of EK-400XA Lens ChartEK-400XA Lens ChartEK-400XA Lens Chart104.8 KBPDF
Icon of EK-400XA SpecificationsEK-400XA SpecificationsEK-400XA Specifications107.0 KBPDF
