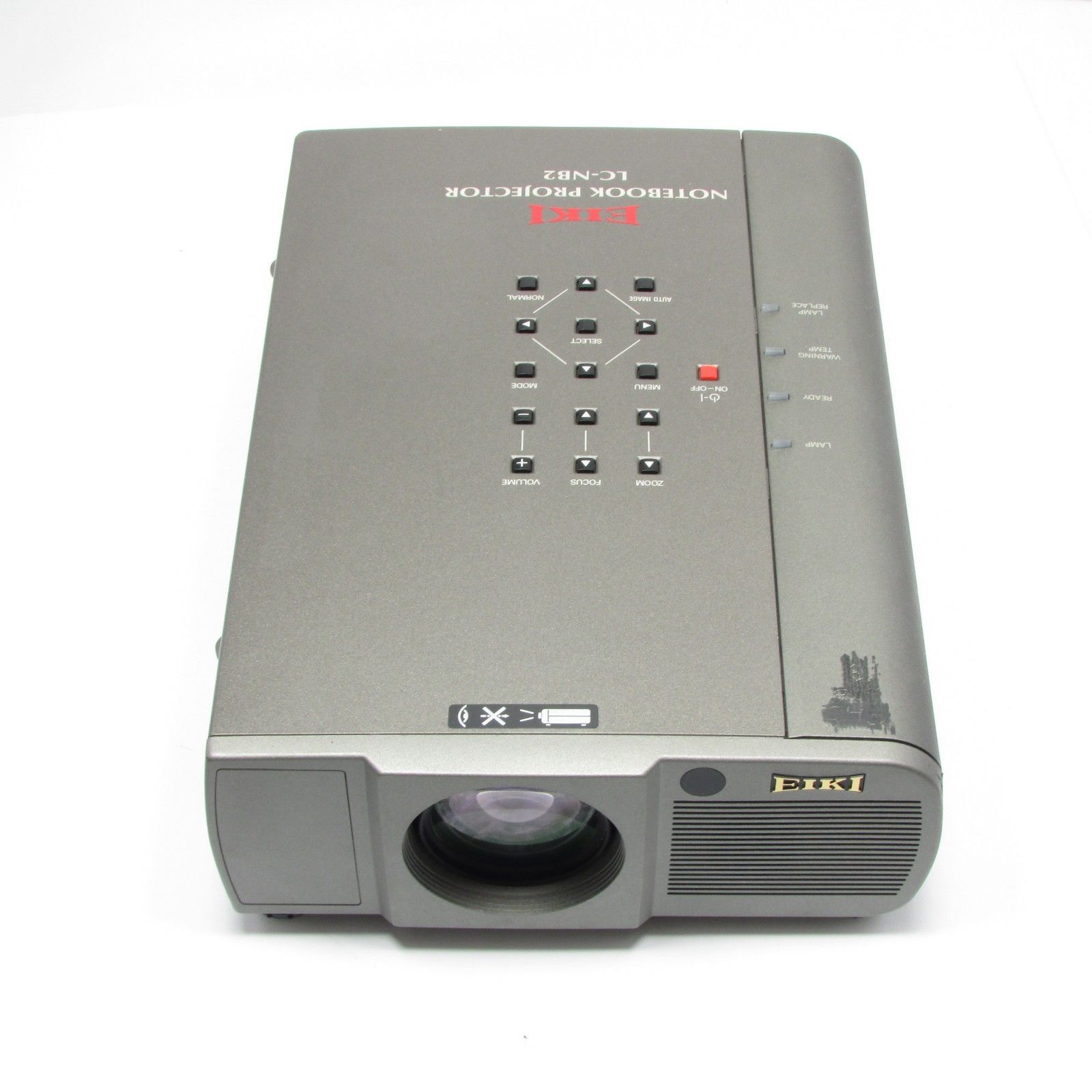

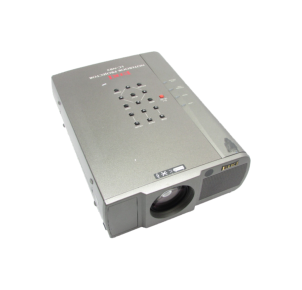

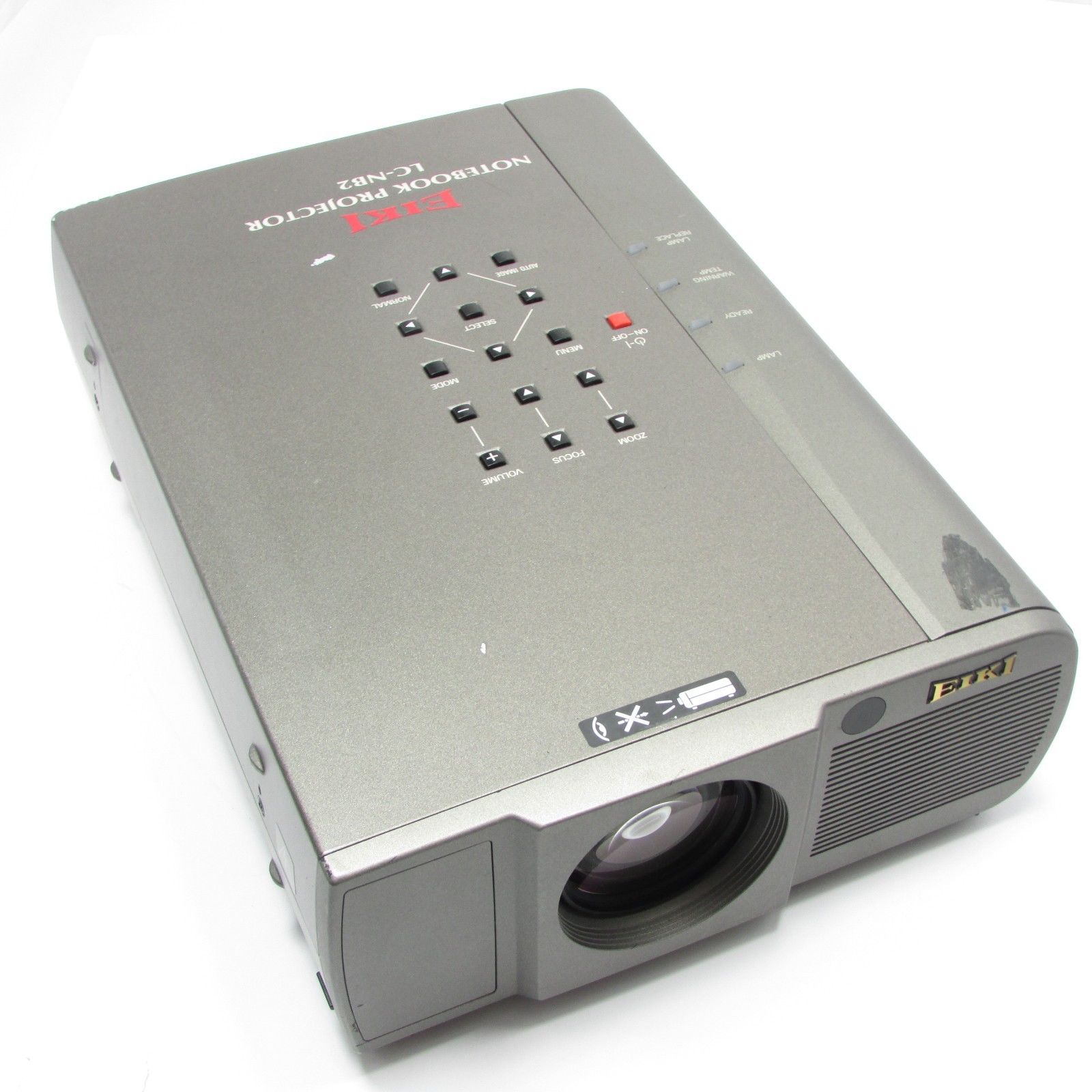

LC-NB2UW LCD Projector

Key Features

  • Weighs less than 9 lbs.! Footprint similar to a legal notepad!
  • 1200 ANSI Lumens at 90% uniformity with a 250:1 contrast ratio.
  • 3 panel LCD imaging delivers eye-popping, color saturated visuals.
  • True SVGA resolution. XGA, SVGA, and VGA compatible.
  • Smart data compression / expansion, and video scaling.
  • Power zoom and focus. Digital keystone correction.
  • Wireless remote with mouse. Laser pointer. 16X digital zoom.
  • Accepts Composite and S-Video Input in most major standards.
  • Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
  • 3 Year Projector Warranty!
  • 6 Month Lamp Warranty

Included Accessories: Owner's Manual. AC Power Cord. Lens Cover. VGA-type Computer Input Cable. Wireless Remote Control with Mouse and batteries (AA x2). Mouse cable for computer PS/2 port. Dust Cover.

Optional Accessories: Replacement Lamp. MAC Adapter. MAC Monitor Cable. 9 Pin Serial cable for mouse & RS-232 communications. Mouse cable for ADB port. Soft Carry Bag. Executive Carry Case with Computer Compartment. Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Mouse Extension Cable.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)



Display Technology 3LCD
Brightness (ANSI) 1200 lumens
Native Resolution SVGA (800x600)
Max. Computer Input XGA
Max. Video Input .NTSC / PAL / SECAM / NTSC 4.43 / PAL-M&N
Contrast Ratio 250:1
Panel Size 0.9” PolySilicon active matrix TFT Panels
Lens (Throw:Width) 1.97~3.15:1
Power Lens Shift .Fixed Image Offset, Ratio (Top:Bottom) 20:1
Keystone Correction Digital (>+/- 12 degrees)

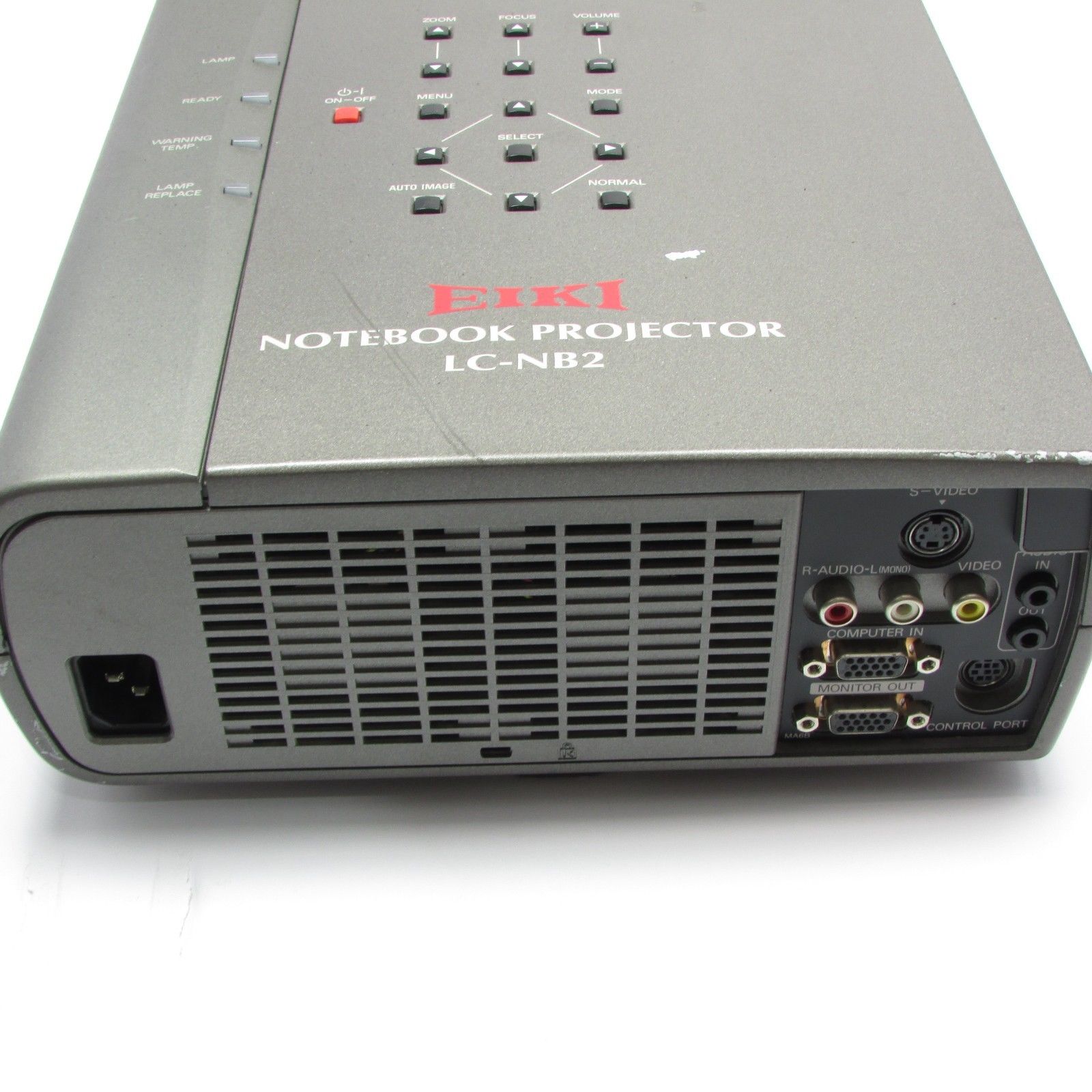

Inputs Dsub15 x 2; PCMCIA x 1; RCA x 1; S-Video x 1; Stereo: MiniStereo x 1; RCA x 2
Outputs Monitor HD15 x 1
Stereo: MiniStereo x 1
Sound System Mono: 1 Watts RMS
Built in Speakers -.1.58 x 1.18 in. (4x3cm) x 1
Network Control --
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life ---
Lamp Part # 610 280 6939
Fan Noise 39 dBA
Air Filter --
Maximum Pitch 10° up
Weight 8.6 lbs. (3.9kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of LC-NB2UW Cad Drawing DxfLC-NB2UW Cad Drawing Dxf172.8 KB
Icon of LC-NB2UW Lens ChartLC-NB2UW Lens ChartLC-NB2UW Lens Chart13.1 KBPDF
Icon of LC-NB2UW Owners ManualLC-NB2UW Owners ManualLC-NB2UW Owners Manual2.1 MBPDF
Icon of LC-NB2UW SpecificationsLC-NB2UW SpecificationsLC-NB2UW Specifications45.4 KBPDF
