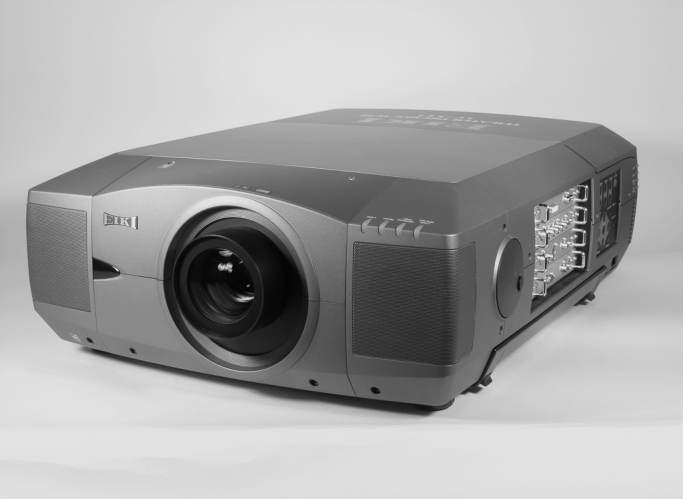

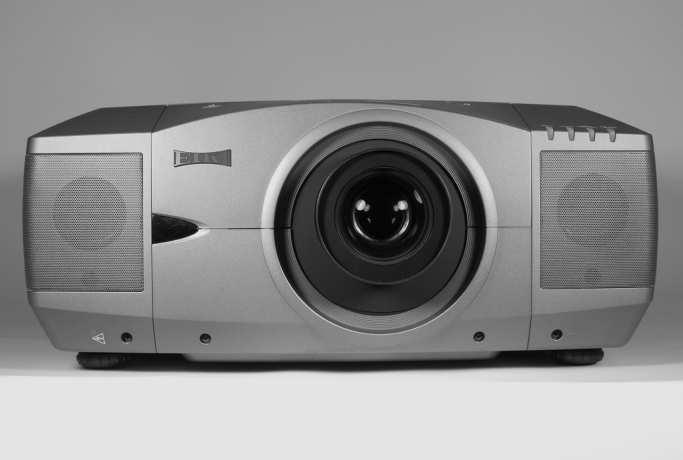

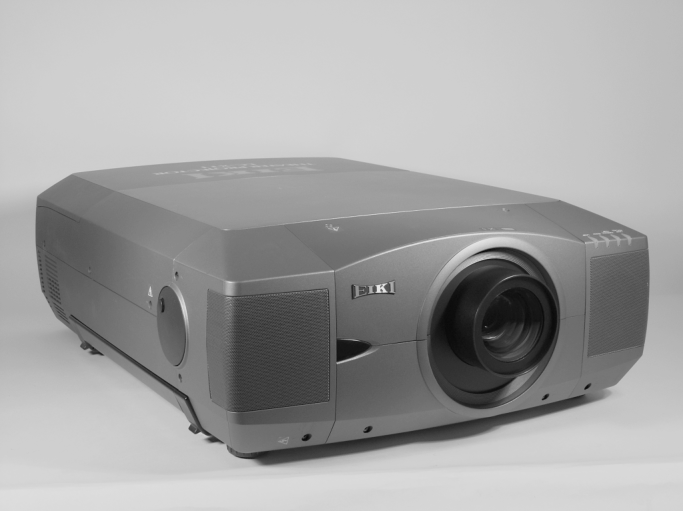

LC-UXT3 LCD Projector

Key Features

  • 7,700 ANSI Lumens bright at 90% uniformity and a 1000:1 contrast ratio.
  • Optimized for color rendition, with a 6500° Kelvin color temperature.
  • Native UXGA. Compatible with UXGA through VGA. Video scaling.
  • Works on 120V AC power (15 amp circuit). No special wiring required.
  • Projects images up to 40' wide (600" diagonal). (Supplied without lens.)
  • New Quick Change Lens Installation system. Wide choice of lenses available.
  • Improved Power Lens Shift. Lens can be shifted vertically and horizontally.
  • Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
  • 4 input channels. Interchangeable input modules permit reconfiguration.
  • Supplied software permits the preconfiguring of color adjustments.
  • Optional Network Control module permits network monitoring and control.
  • 3 Year* / 6000 Hr.* Warranty

Included Accessories: Owner's Manual. AC Power Cord 10' (3.m), Lens Aperature Cover. Computer Input Cable 6' (1.8m) HD15~HD15. DVI Input Cable. DVI~HD15 Adapter, MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover. Color Management Software.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, Y/C and PC Input Modules. HD-SDI Input Module. Upconverter Input Module. Network Control Module. SD-SDI Input Module. Hard Shipping Case with wheels and Telescoping handle. Ceiling Mount and Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 7,700 lumens
Native Resolution UXGA (1600x1200)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 1000:1
Panel Size 1.8"
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift T:B 10:0~0:10; L:R 11:9~9:11
Keystone Correction Variable Adjustment +40°~ -40°

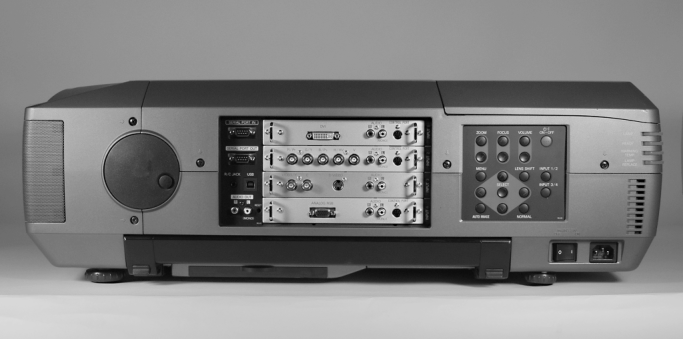

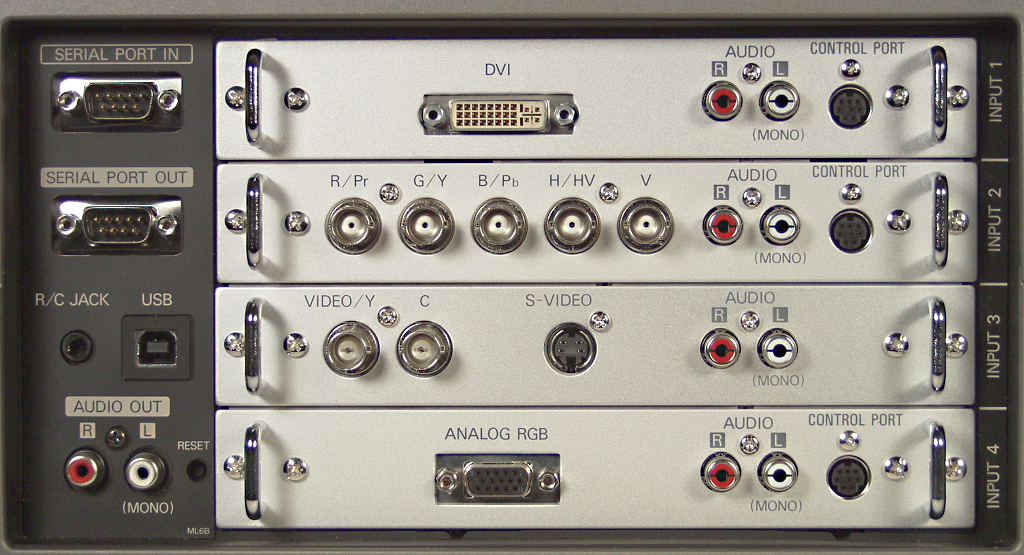

Inputs DVI-I x 1 data/video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 5 video, RCA x 2 audio, 8-pin DIN x 1 control
BNC x 2 & S-Video x 1 video, RCA x 2 audio
HD15 x 1 data, RCA x 2 audio, 8-pin DIN x 1 control
Outputs Audio: Output - Line (Stereo) RCA x 2 (L & R)
Sound System 3 Watts Stereo; Speakers 8 cm. (3.1") x 2
Network Control Wired LAN monitor & control & system management with optional module
Warranty 3 Yr / 6000 Hr

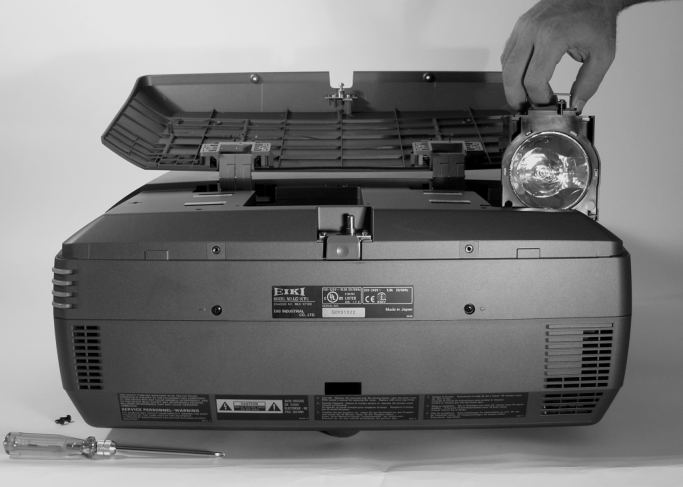

Lamp Life Up to 2,000 hours per lamp
Lamp Part # 610 300 0862 (4)
Fan Noise As low as 46 dBA

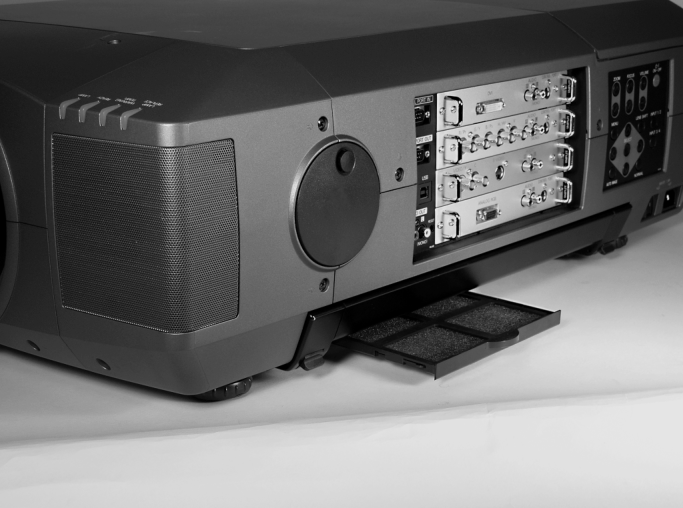

Air Filter Standard

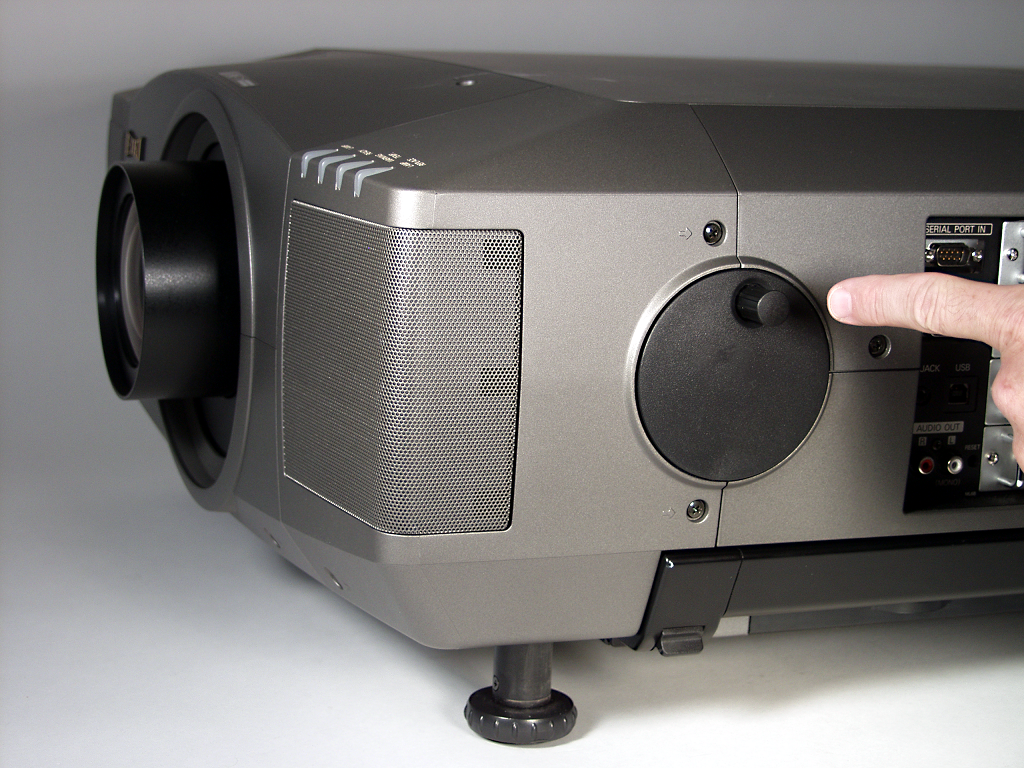

Maximum Pitch up to 5.7° up
Weight 81.6 lbs.(37.0 kg )
Ceiling Mount Part # 0173-4149
NameDescriptionSizeType
LC-UXT3 Cad Drawing134.6 KB
LC-UXT3 Cad Drawing Dxf284.4 KB
LC-UXT3 Lens ChartLC-UXT3 Lens Chart12.5 KBPDF
LC-UXT3 Owners ManualLC-UXT3 Owners Manual1.1 MBPDF
LC-UXT3 RS-232 Control SoftwareLC-UXT3 RS-232 Control Software1.5 MB
LC-UXT3 RS-232 Basic Serial CommandsLC-UXT3 RS-232 Basic Serial Commands170.0 KBPDF
LC-UXT3 RS-232 Extended Serial CommandsLC-UXT3 RS-232 Extended Serial Commands314.2 KBPDF
LC-UXT3 SpecificationsLC-UXT3 Specifications31.6 KBPDF

Related Products

610 300 0862 Lamp
610 300 0862 Lamp
Rated Power: 250W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days / 500h (whichever comes first) (Pro-Rata)
(4) used in each projector
945 044 0978 Lens
945 044 0978 Lens
Power Zoom & Focus FL:2.98″ ~ 3.84″ ( 75.7 ~ 97.5mm ) f:2.00 ~ 2.30
0001-4297 Lens
0001-4297 Lens
Manual Zoom & Focus FL: 2.75" ~ 5.00" ( 70.0 ~ 125.0mm ) f:2.0
0001-4261 Lens
0001-4261 Lens
Manual Zoom & Focus FL: 7.25″~12.38″ ( 184 ~ 314mm ) f:2.8
0001-4260 Lens
0001-4260 Lens
Manual Zoom & Focus FL: 4.49″ ~ 7.72″ ( 114 ~ 196mm ) f:2.00
AH-72181 Module
AH-72181 Module
5 BNC / S-Video ( CV/Y, Pb/Cb, Pr/Cr ) ( Sound: S-Video w/o Composite )
AH-72162 Module
AH-72162 Module
HD & SD-SDI; DUAL-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A)
AH-72031 Module
AH-72031 Module
VGA ( D-Sub15 VGA ) ( Sound: RCA x 2, Control: Min DIN 8-Pin)
AH-72015 Module
AH-72015 Module
5 BNC ( Y, Pr, Pb ) ( Sound: RCA x 2, Control: N/A)
AH-72003 Module
AH-72003 Module
DVI Supports HDCP ( Sound: RCA x 2, Control: Min DIN 8-Pin)
