LC-WUL100A HD Widescreen Projector
LC-WUL100AL HD Widescreen Projector (no lens)

A most versatile mid-range projector, the LC-WUL100A delivers true High Definition 1080p video and UXGA & WUXGA computer imaging without scaling. Combining large venue projection features with durable components and reduced maintenance, the EIKI LC-WUL100A comes complete with a wide-range power zoom and focus lens, or, as the LC-WUL100AL, it is available without lens and ready for a selection from a suite of optional lenses.

Key Features

  • 5,000 ANSI lumens bright with 90% uniformity and a 2000:1 contrast ratio.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 10-bit color processing, for superior color reproduction.
  • Power zoom and focus lens. Optional wide-angle and telephoto lenses.
  • Vertical and horizontal power lens shift and digital keystone correction.
  • HDMI® input supports digital data, plus digital video with HDCP.
  • Built-in 10 Watt amplifier and speaker system. Closed Caption decoding.
  • Built-in wired LAN connection for projector monitoring and control.
  • Self-advancing cartridge air filter reduces maintenance: up-to 13,000 hour life.
  • Mechanical shutter for true black screen in "No Show" mode.
  • Physically centered lens with push-button lens change.
  • Picture-in-Picture & Picture-by-Picture. Wireless/wired remote with mouse.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote with Mouse Control (with 2 AAA Batteries), Wired Remote Cable (MiniStereo-MiniStereo), Lens Cover.

Optional Accessories: Replacement Lamp, Wideangle, Midrange and Telephoto Lenses, Replacement Cartridge Air Filter, Pj - NetDirector and NetCapture software, ATA Style Shipping Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD
Brightness (ANSI) 5,000 lumens
Native Resolution WUXGA (1920x1200)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.76" (inorganic)
Lens Type (Throw:Width) 1.63~2.74:1
Power Lens Shift U/D 60%; L/R 10%
Keystone Correction U/D 30º; L/R 30º

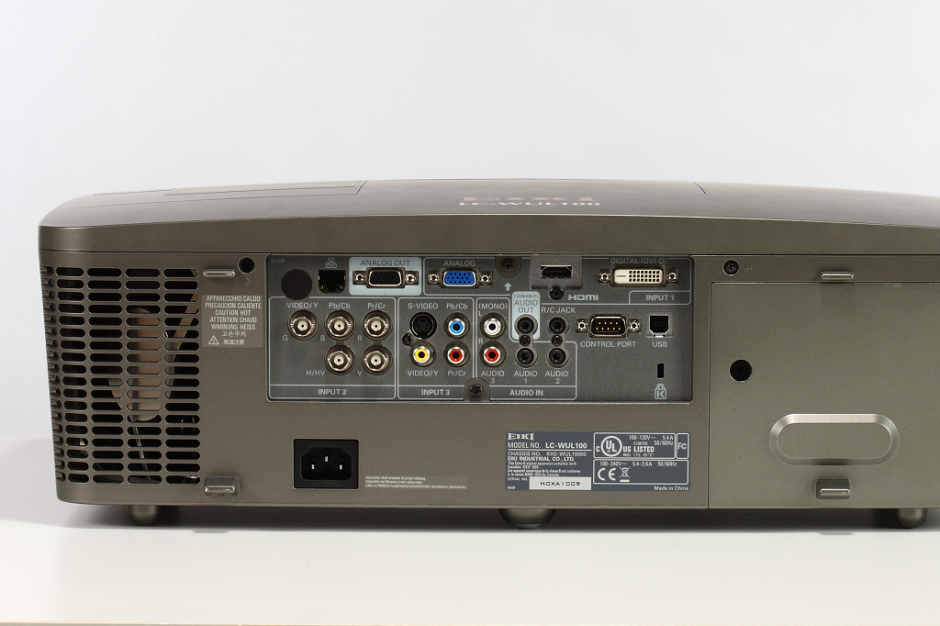

Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5; RCA x 3; S-Video x 1;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 10 Watt; 1.46" Speaker x 1
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # 610 346 9607
Fan Noise As low as 29 dBa
Air Filter Cartridge (13,000 hours)
Maximum Pitch Up to 360º
Weight 21.6 lb (9.8 kg)
Ceiling Mount Part # 0173-4343
NameDescriptionSizeType
LC-WUL100A Color Data Sheet872.1 KB
LC-WUL100A Lens ChartLC-WUL100A Lens Chart25.1 KBPDF
LC-WUL100A Owners ManualLC-WUL100A Owners Manual14.3 MBPDF
LC-WUL100A RS-232 Basic Serial CommandLC-WUL100A RS-232 Serial Basic Commands261.4 KBPDF
LC-WUL100A RS-232 Expand Serial CommandLC-WUL100A RS-232 Expand Serial Command464.7 KBPDF
LC-WUL100A SpecificationsLC-WUL100A Specifications56.8 KBPDF
