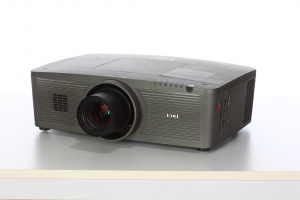

LC-WXL200AL (no lens)

LC-WXL200A Key Features

  • 5,500 ANSI Lumens bright, with 90% uniformity and a 2000:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 10-bit color processing, for superior color reproduction.
  • Power zoom and focus lens. Optional wide-angle and telephoto lenses.
  • Vertical and Horizontal power lens shift and digital keystone correction.
  • HDMI® input supports digital data, plus digital video with HDCP.
  • Built-in 7 Watt amplifier and speaker system. Closed Caption decoding.
  • Wired LAN connection for monitoring and control. Optional PjNET interface.
  • Self-advancing cartridge air filter provides up-to 13,000 hours use.
  • Centered lens with 1-button release. Top-accessed lamp, side-accessed filter.
  • Variable power management option. Optional local or remote keylock.
  • Mechanical shutter for true black screen. Corner keystone correction.

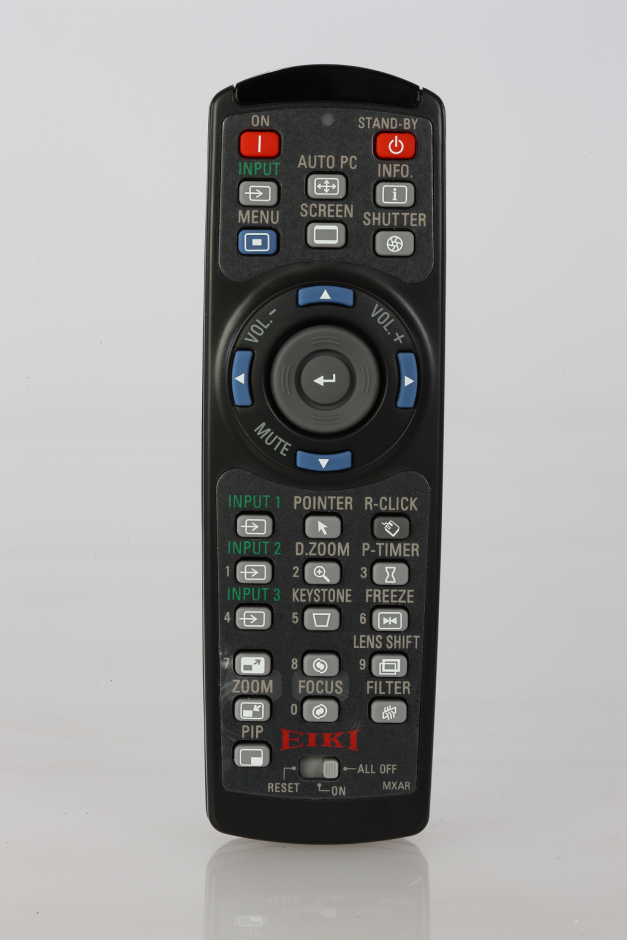

  • Wireless/wired remote with mouse control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, Lens Cover, VGA Computer Input Cable (Dsub15-Dsub15), Wireless/Wired Remote with Mouse Control (with 2 AAA Batteries), USB Cable for Computer Mouse Control.

Optional Accessories: Replacement Lamp, Wideangle, Midrange and Telephoto Lenses, ATA-Style Shipping Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post & Plate, PjNet Network Interface.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)

Display Technology 3LCD
Brightness (ANSI) 5,500 ANSI lumens
Native Resolution WXGA (1280x800)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 0.8" (inorganic)
Lens Type (Throw:Width) 1.70-2.89:1
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 40°; L/R 20°
Inputs Dsub15 x 1; HDMI (w/HDCP) x 1; BNC x 5; S-Video x 1;RCA x 1; MiniStereo x 2; RCA (audio) x 2
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 7 Watt; 1.46" speaker x 1
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours
Lamp Part # 610 346 9607
Fan Noise As low as 31 dBa
Air Filter Cartridge (13,000 hours)
Maximum Pitch Up to 360°
Weight 22.3 lb (9.7 kg)
Ceiling Mount Part # 0173-4343


LC-WXL200A Color Data Sheet873.2 KB
LC-WXL200A Hi-res Image Beauty1LC-WXL200A Hi-res Image Beauty13.9 MBJPG, ZIP
LC-WXL200A Hi-res Image Beauty2LC-WXL200A Hi-res Image Beauty24.0 MBJPG, ZIP
LC-WXL200A Hi-res Image BottomLC-WXL200A Hi-res Image Bottom4.7 MBJPG, ZIP
LC-WXL200A Hi-res Image ConnectionsLC-WXL200A Hi-res Image Connections4.1 MBJPG, ZIP
LC-WXL200A Hi-res Image FrontLC-WXL200A Hi-res Image Front3.9 MBJPG, ZIP
LC-WXL200A Hi-res Image RemoteLC-WXL200A Hi-res Image Remote4.6 MBJPG, ZIP
LC-WXL200A Hi-res Image Side1LC-WXL200A Hi-res Image Side13.6 MBJPG, ZIP
LC-WXL200A Hi-res Image Side2LC-WXL200A Hi-res Image Side23.7 MBJPG, ZIP
LC-WXL200A Hi-res Image TopLC-WXL200A Hi-res Image Top5.0 MBJPG, ZIP
LC-WXL200A Lens ChartLC-WXL200A Lens Chart89.1 KBPDF
LC-WXL200A Owners ManualLC-WXL200A Owners Manual13.9 MBPDF
LC-WXL200A RS-232 Serial Basic CommandsLC-WXL200A RS-232 Serial Basic Commands261.5 KBPDF
LC-WXL200A RS-232 Serial Expand CommandsLC-WXL200A RS-232 Serial Expand Commands460.9 KBPDF
LC-WXL200A SpecificationsLC-WXL200A Specifications56.5 KBPDF
