LC-X4A LCD Projector
LC-X4LA (no lens) LCD Projector

Key Features

  • 5,200 ANSI Lumens bright at 90% uniformity and a 800:1 contrast ratio.
  • Native XGA. Campatible with UXGA through VGA. Video scaling.
  • Works on 120V AC power (15 amp circuit). No special wiring required!
  • Projects images up to 40' wide (600" diagonal). Wide choice of lenses.
  • New Quick Change Lens Installation System. Improved Power Lens Shift.
  • Compatible with most video signal input, including DVI, RGB, Y/C, DVD, HDTV.
  • Displays video 4:3 & 16:9 in NTSC/PAL/SECAM/NTSC 4.43/PAL-M/PAL-N.
  • Improved progressive scan with HDTV at 1080i and 2-3 pulldown support.
  • 3 input channels. Interchangeable input modules permit reconfiguration.
  • Supplied software permits the preconfiguring of color adjustments.
  • Optional Network Control module permits network monitoring and control.
  • 3 Year / 6000 Hr.* Warranty

Included Accessories: Owner's Manual. AC Power Cord 10’ (3.m), Lens Aperture Cover. Computer Input Cable 6’ (1.8m) HD15~HD15. DVI Input Cable. HD-SDI Input Module. DVI~HD15 Adapter, MAC Adapter. Wireless/wired Remote with Mouse Control and Laser Pointer & 2 x AA batteries and 1.5M wired remote cable. Mouse cables 9’ (2.75m) each for PS/2, Serial Port, ADB Port. Dust Cover. Color Management Software.

Optional Accessories: Telephoto, Midrange and Wideangle Lenses. Replacement Lamps. Additional DVI, 5 BNC, and Y/C Input Modules. VGA (HD15) Input Module. Upconverter Input Module. Network Control Module. SD-SDI Input Module. Hard Shipping Case with wheels and telescoping handle. Ceiling Mount and Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD+One
Brightness (ANSI) 5,200 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 4000:1
Panel Size 1.8" (inorganic)
Lens Type (Throw:Width) 2.1~2.6:1 (supplied lens)
Power Lens Shift  Power Lens Shift, Ratio (T:B) >10:0~0:10
Keystone Correction U/D 40º;
Inputs Dsub15 x 1 or DVI-I (w/HDCP); RCA x 4 audio, 8-pin DIN x 2; BNC x 5 or BNC x 3 or BNC x 1 or S-Video x 1; BNC x 2 & S-Video x 1 video, RCA x 2 audio; Empty module bay x 2
Outputs Audio: Output - Line (Stereo) RCA x 2 (L & R)
Sound System Audio: Output - Amplifier 3 Watts RMS (each L&R) Stereo
Audio: Output - Speakers 2 x 3.5 in. (5 x 9 cm) x 2
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 Yr./ 6000 Hr.*(Parts/Labor to Correct Defects)
Lamp Life 2,000 hours
Lamp Part # 610 341 9497 (2)
Fan Noise 45 dBA
Air Filter Cartridge (up to 10,000 hours)
Maximum Pitch ---
Weight 49.7 lbs. (22.5 kg)
Ceiling Mount Part # ---
 NameDescriptionSizeType
Icon of LC-X4A Cad DrawingLC-X4A Cad Drawing115.8 KB
Icon of LC-X4A Cad Drawing DxfLC-X4A Cad Drawing Dxf169.5 KB
Icon of LC-X4A Cad Drawing Opt Lens ProtrusionsLC-X4A Cad Drawing Opt Lens Protrusions96.3 KB

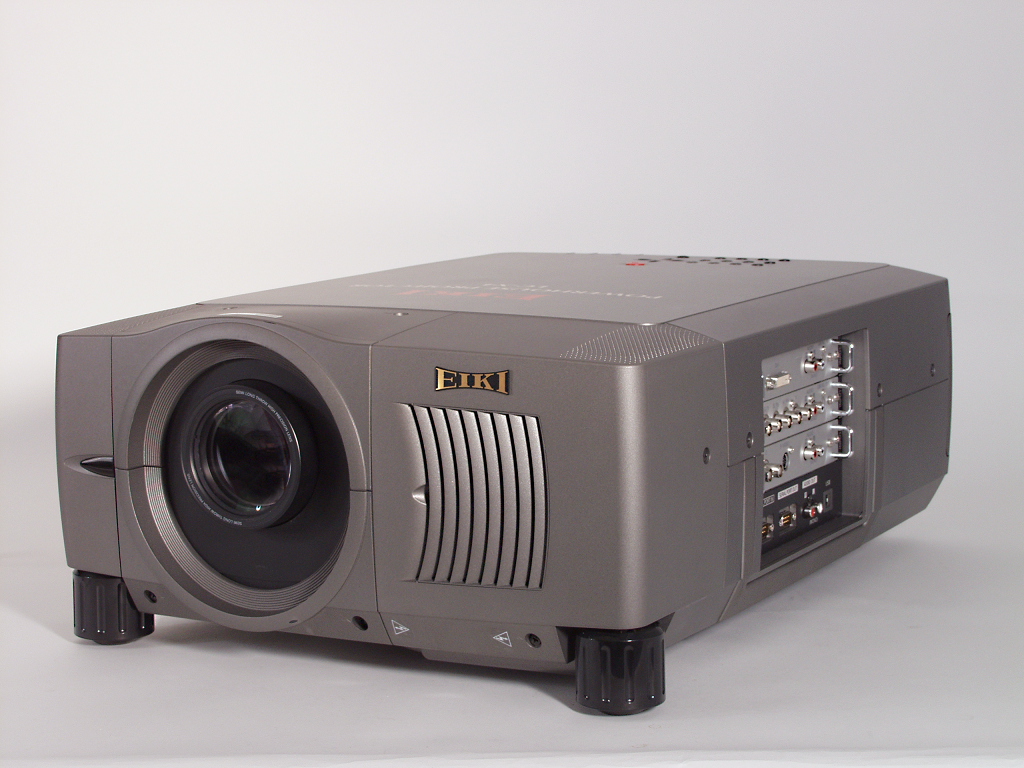

Icon of LC-X4A Hi-res Image BeautyLC-X4A Hi-res Image BeautyLC-X4A Hi-res Image Beauty7.7 MBZIP, TIF

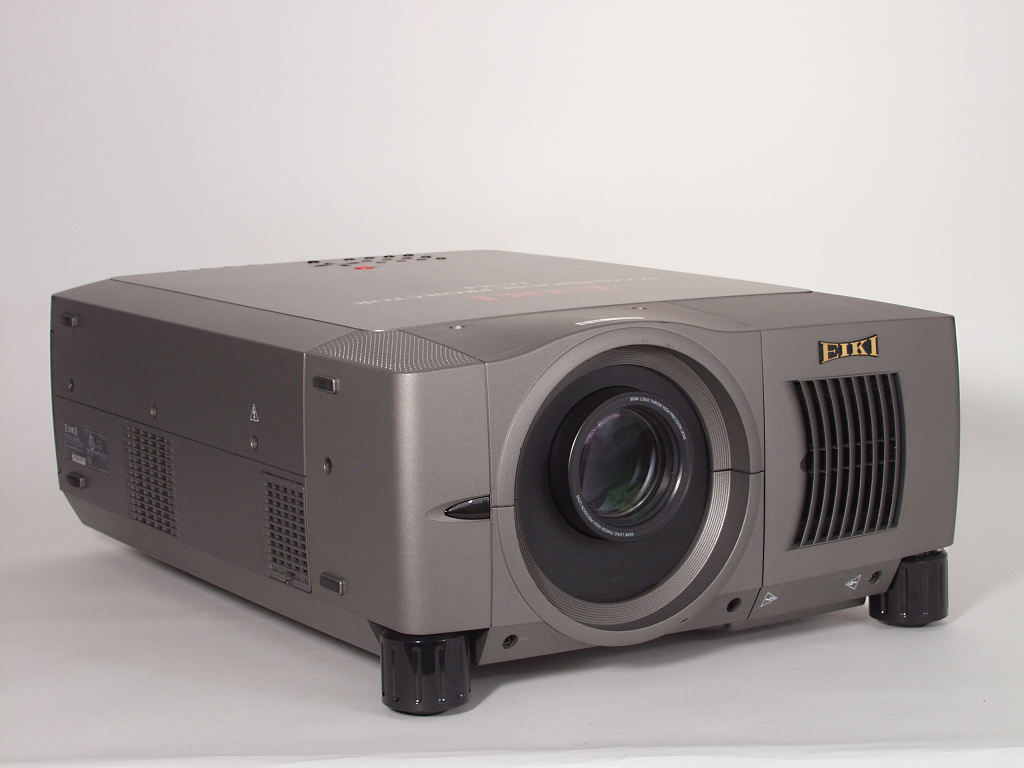

Icon of LC-X4A Hi-res Image Beauty2LC-X4A Hi-res Image Beauty2LC-X4A Hi-res Image Beauty27.7 MBZIP, TIF

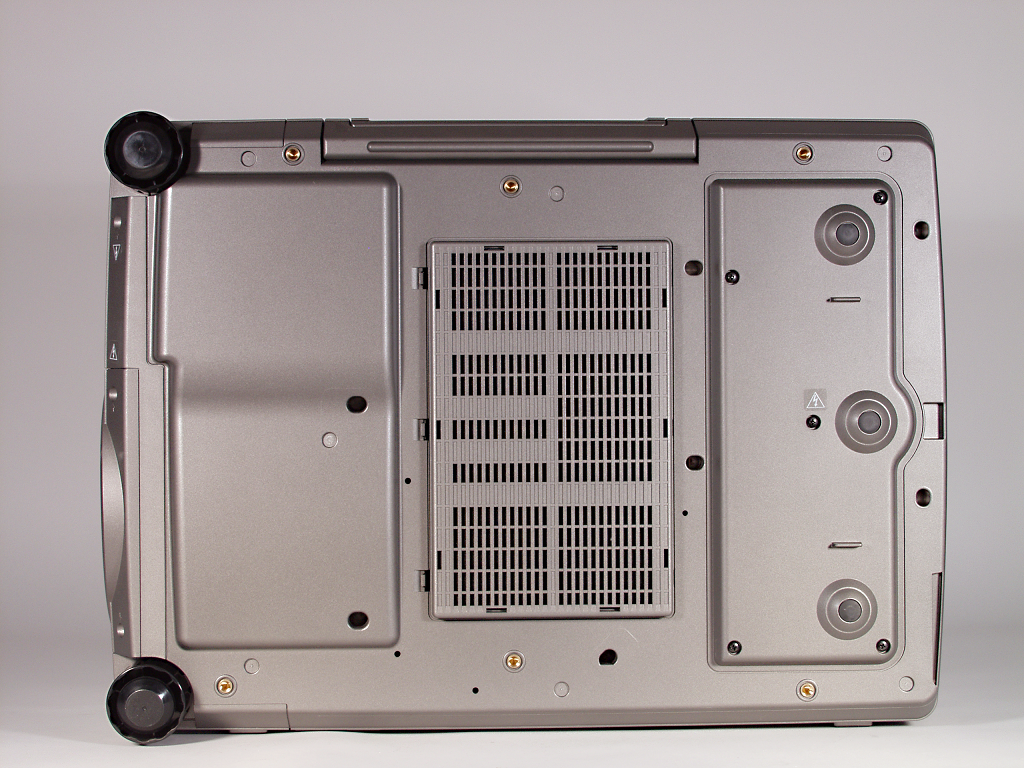

Icon of LC-X4A Hi-res Image BottomLC-X4A Hi-res Image BottomLC-X4A Hi-res Image Bottom9.6 MBZIP, TIF

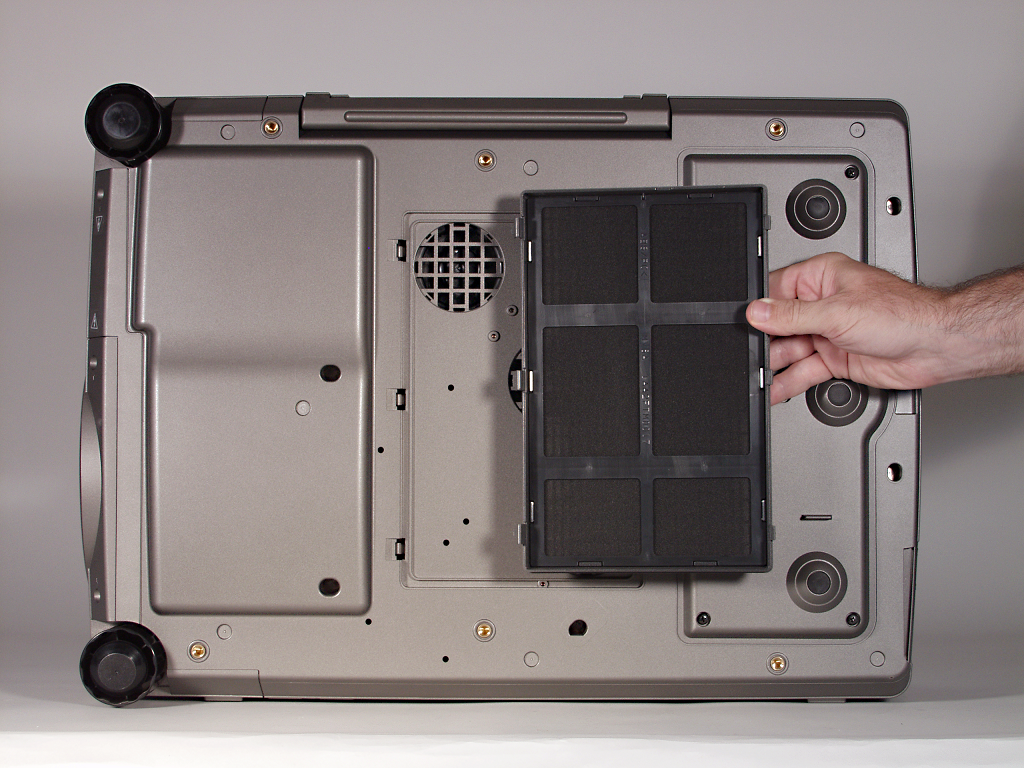

Icon of LC-X4A Hi-res Image Filters1LC-X4A Hi-res Image Filters1LC-X4A Hi-res Image Filters19.6 MBZIP, TIF

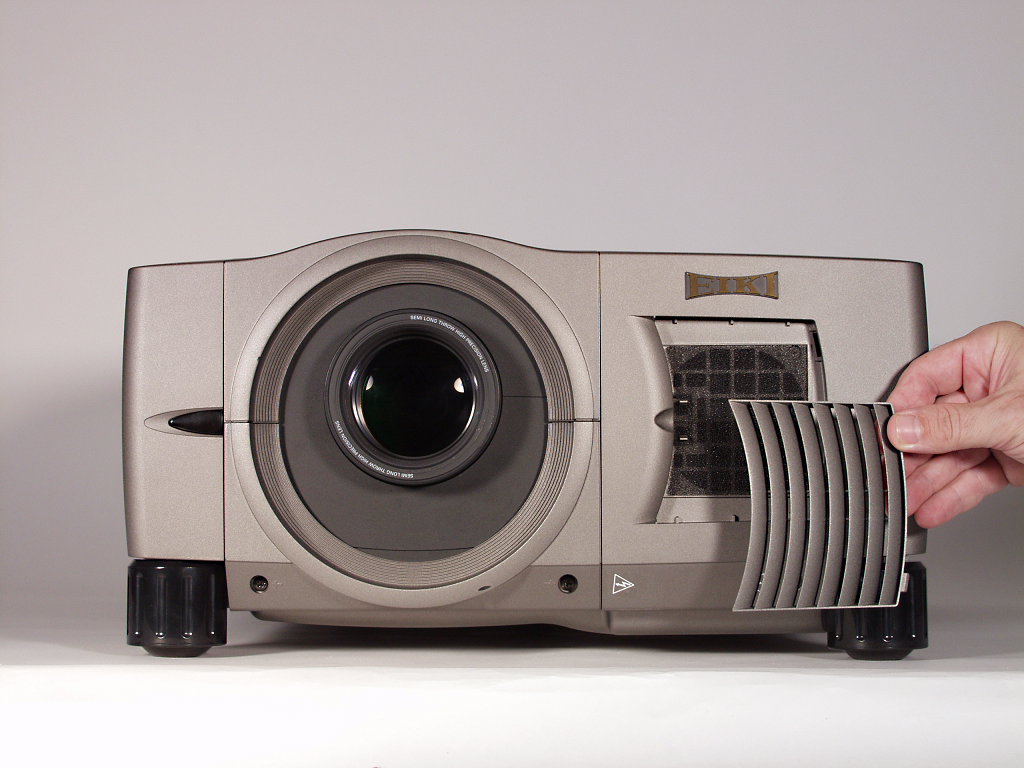

Icon of LC-X4A Hi-res Image Filters2LC-X4A Hi-res Image Filters2LC-X4A Hi-res Image Filters28.5 MBZIP, TIF

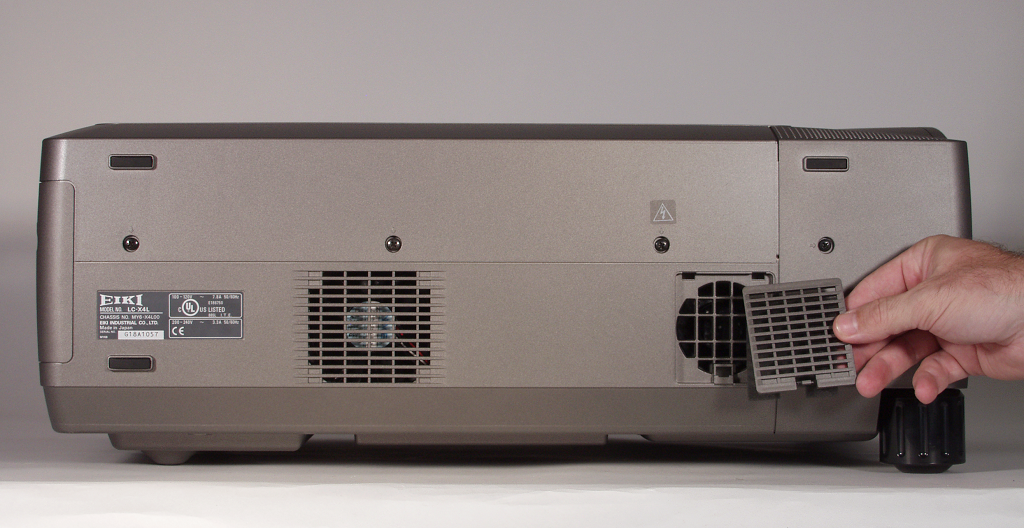

Icon of LC-X4A Hi-res Image Filters3LC-X4A Hi-res Image Filters3LC-X4A Hi-res Image Filters312.0 MBZIP, TIF

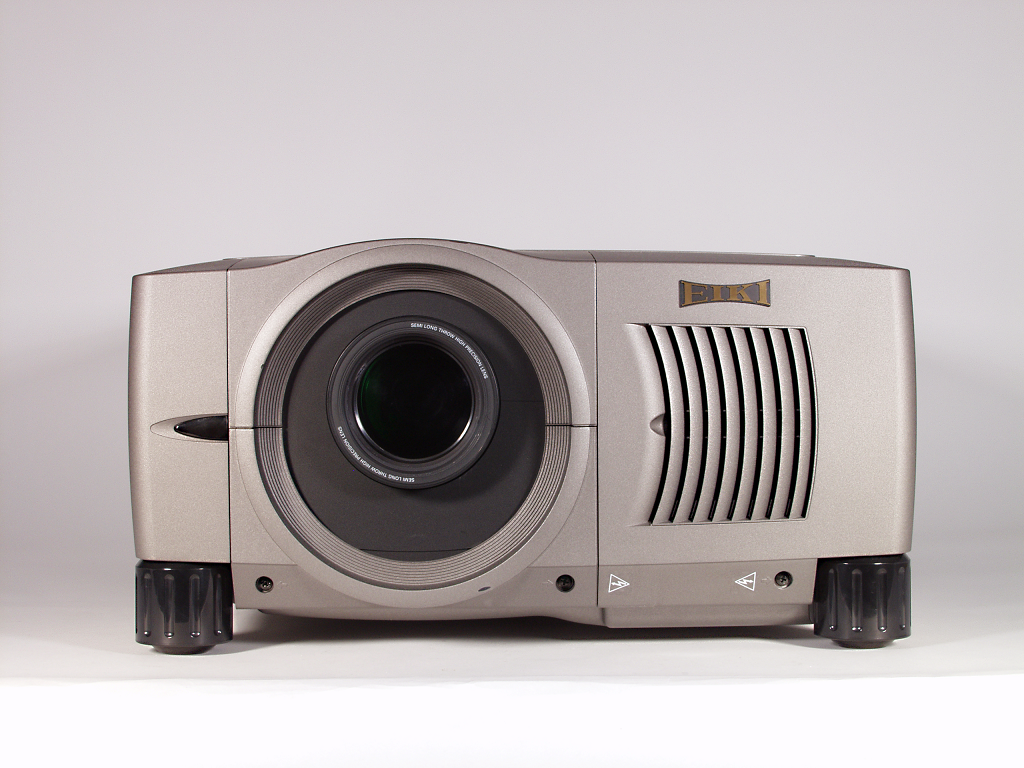

Icon of LC-X4A Hi-res Image FrontLC-X4A Hi-res Image FrontLC-X4A Hi-res Image Front7.4 MBZIP, TIF

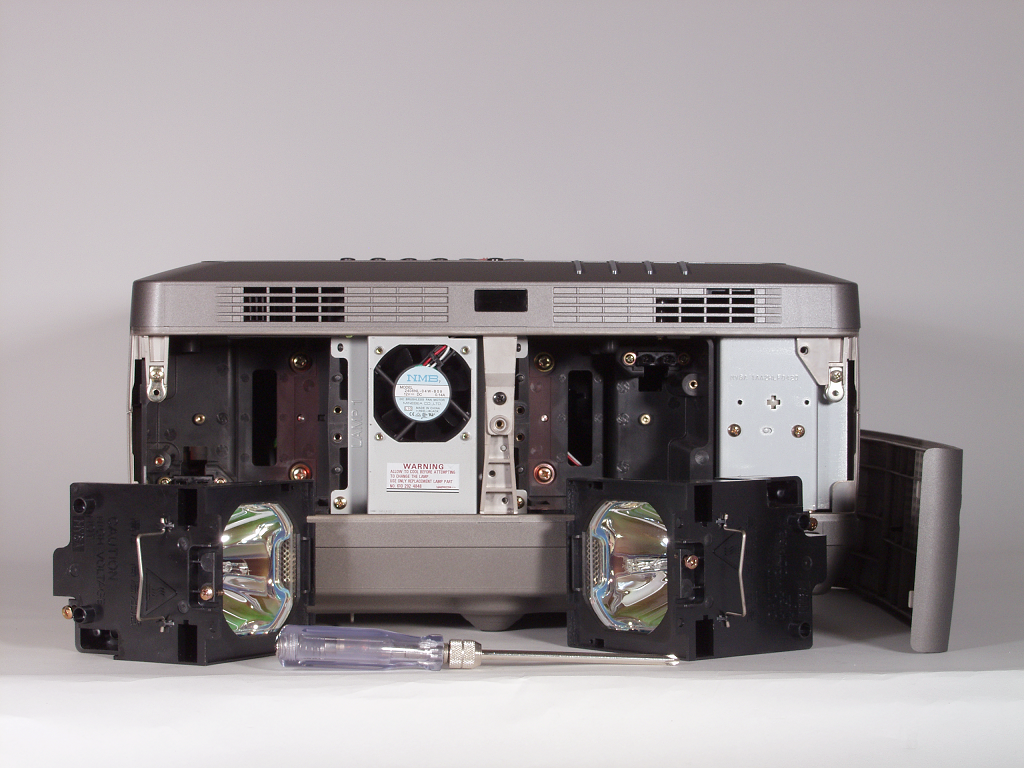

Icon of LC-X4A Hi-res Image LampsLC-X4A Hi-res Image LampsLC-X4A Hi-res Image Lamps8.1 MBZIP, TIF

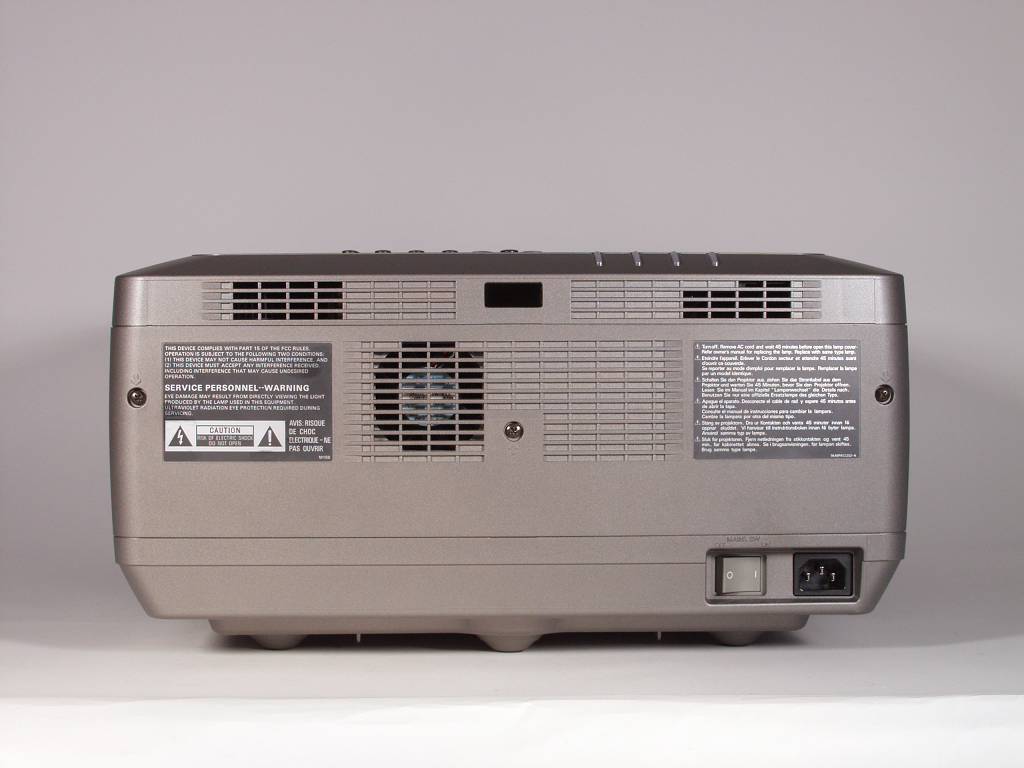

Icon of LC-X4A Hi-res Image RearLC-X4A Hi-res Image RearLC-X4A Hi-res Image Rear7.8 MBZIP, TIF

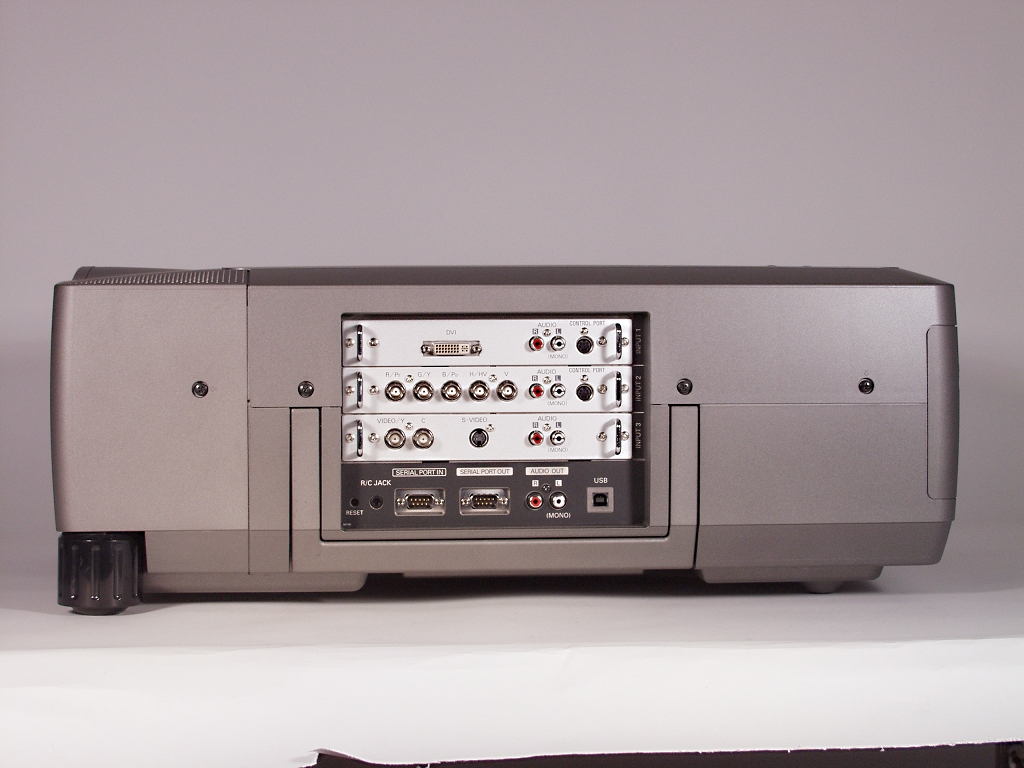

Icon of LC-X4A Hi-res Image Side1LC-X4A Hi-res Image Side1LC-X4A Hi-res Image Side17.8 MBZIP, TIF

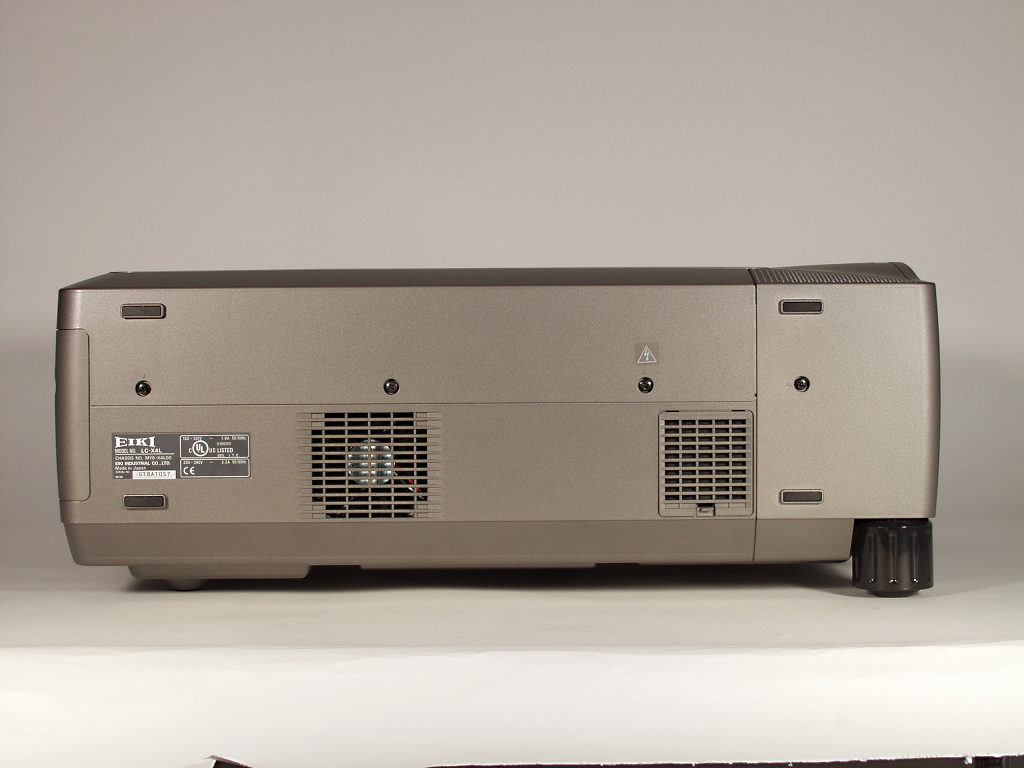

Icon of LC-X4A Hi-res Image Side2LC-X4A Hi-res Image Side2LC-X4A Hi-res Image Side216.3 MBZIP, TIF
Icon of LC-X4A Lens ChartLC-X4A Lens ChartLC-X4A Lens Chart14.8 KBPDF
Icon of LC-X4A Owners ManualLC-X4A Owners ManualLC-X4A Owners Manual1.3 MBPDF
Icon of LC-X4A Remote Control CodesLC-X4A Remote Control CodesLC-X4A Remote Control Codes18.4 KBPDF
Icon of LC-X4A RS-232 Control SoftwareLC-X4A RS-232 Control Software1.5 MB
Icon of LC-X4A RS-232 Basic Serial CommandsLC-X4A RS-232 Basic Serial CommandsLC-X4A RS-232 Basic Serial Commands10.5 KBPDF
Icon of LC-X4A RS-232 Extended Serial CommandsLC-X4A RS-232 Extended Serial CommandsLC-X4A RS-232 Extended Serial Commands314.2 KBPDF
Icon of LC-X4A SpecificationsLC-X4A SpecificationsLC-X4A Specifications36.1 KBPDF
