LC-X80 LCD Projector

Breakthrough Features

  1. Our brightest portable projector: 6500 Ansi Lumens!
  2. New LCD panels deliver a remarkable 2000:1 contrast ratio.
  3. New Inorganic imaging engine is optimized for extended use.
  4. New self-advancing cartridge air filter reduces maintenance.
  5. New horizontal lens shift and vertical projector orientation.
  6. Compatibility up to analog UXGA, digital 1080p(psf/24/25/30).

Key Features

  • 6500 ANSI Lumens bright, at 90%+ uniformity, and a 2000:1 contrast ratio.
  • A true portable / installation projector, engineered for extended use.
  • 3 panel LCD imaging for rich, color saturated computer and video projection.
  • XGA resolution. Smart data compression / expansion, and video scaling.
  • Includes most professonal input configurations, including 5BNC and DVI.
  • Accepts analog and digital computer input, analog and digital w/HDCP video.
  • Compatible with Computer sources up to UXGA, video sources up to 1080p.
  • Power zoom and focus. V & H power lens shift. V & H keystone correction.
  • Optional Wideangle and Telephoto lenses. Quick Lens Change System.
  • Quiet operation: fan noise as low as 31.8 dBA. Roll air filter.
  • Wireless/wired remote with mouse. Up to 49x digital zoom.
  • Converts Interlace to Progressive scan. 2-3 pulldown support.
  • Variable Power Management Option. Optional Local or Remote Keylock.
  • Custom Warmup Screen Image Option. Built-in Color Auto Picture Control.
  • 3 Year* Projector Warranty!

Included Accessories: Owner’s Manual on CD-ROM. QuickStart Manual. AC Power Cord. VGA-type Computer Input Cable. Wireless/wired Remote with Mouse Control & 2 x AAA batteries. USB Cable for Computer Mouse control. Remote Control Cable,Lens Mount Attachment, Lens Light Block, Lens Spacer.

Optional Accessories: Replacement Lamp. Soft Carry Bag with Wheels and Telescoping Handle. ATA-Style Shipping Case with Wheels and Telescoping Handle. A Range of Wideangle and Telephoto Lenses. Ceiling Mount. Ceiling Post and Plate. 100' (30 M) Wired Remote Cable. EZ-250 Local Control. PjNET Network Interface. NPC-1 Network Control. Replacement Air Filter Cartridge.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD+One
Brightness (ANSI) 6,500 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 2000:1
Panel Size 1.3" (inorganic)
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 10:0~1:1; L/R 2:3~3:2
Keystone Correction U/D 35º; L/R 15º
Inputs Dsub15 x 1 or DVI-D (w/HDCP); BNC x 5 or BNC x 3;RCA x 1 or RCA x 3 or S-Video x 1;
Outputs Dsub15 x 1;
Sound System  ---
Network Control - -
Warranty 3 years
Lamp Life Up to 3,000 hours
Lamp Part # 610 334 2788
Fan Noise As low as 31.8 dBA
Air Filter Self-advancing Cartridge
Maximum Pitch Up to 360°
Weight 25.8 lb. (11.7 kg.) without lens
Ceiling Mount Part # - -
NameDescriptionSizeType
LC-X80 Cad Drawing131.1 KB
LC-X80 Cad Drawing Dxf158.0 KB
LC-X800 Cad Drawing42.0 KB
LC-X800 Cad Drawing Dxf200.7 KB
LC-X800A Cad Drawing42.0 KB
LC-X800A Cad Drawing Dxf200.7 KB
LC-X80 Color Data Sheet568.9 KB
LC-X800 Color Data Sheet941.4 KB
LC-X800A Color Data Sheet879.1 KB
LC-X80 Hi-res Image Beauty1LC-X80 Hi-res Image Beauty112.3 MBZIP, TIF
LC-X80 Hi-res Image Beauty2LC-X80 Hi-res Image Beauty211.9 MBZIP, TIF
LC-X80 Hi-res Image BottomLC-X80 Hi-res Image Bottom14.6 MBZIP, TIF
LC-X80 Hi-res Image ConnectionsLC-X80 Hi-res Image Connections14.0 MBZIP, TIF
LC-X80 Hi-res Image FilterLC-X80 Hi-res Image Filter11.9 MBZIP, TIF
LC-X80 Hi-res Image FrontLC-X80 Hi-res Image Front13.7 MBZIP, TIF
LC-X80 Hi-res Image RemoteLC-X80 Hi-res Image Remote12.1 MBZIP, TIF
LC-X80 Hi-res Image Side1LC-X80 Hi-res Image Side111.8 MBZIP, TIF
LC-X80 Hi-res Image Side2LC-X80 Hi-res Image Side211.5 MBZIP, TIF
LC-X80 Hi-res Image TopLC-X80 Hi-res Image Top14.4 MBZIP, TIF
LC-X800A Hi-res Image Beauty1LC-X800A Hi-res Image Beauty19.6 MBZIP, TIF
LC-X800A Hi-res Image Beauty2LC-X800A Hi-res Image Beauty210.0 MBZIP, TIF
LC-X800A Hi-res Image ConnectionsLC-X800A Hi-res Image Connections10.0 MBZIP, TIF
LC-X800A Hi-res Image FrontLC-X800A Hi-res Image Front8.5 MBZIP, TIF
LC-X800A Hi-res Image RearLC-X800A Hi-res Image Rear8.8 MBZIP, TIF
LC-X800A Hi-res Image Side1LC-X800A Hi-res Image Side18.0 MBZIP, TIF
LC-X800A Hi-res Image Side2LC-X800A Hi-res Image Side27.6 MBZIP, TIF
LC-X80 Lens ChartLC-X80 Lens Chart26.0 KBPDF
LC-X800 Lens ChartLC-X800 Lens Chart42.0 KBPDF
LC-X800A Lens ChartLC-X800A Lens Chart41.5 KBPDF
LC-X80 Owners ManualLC-X80 Owners Manual6.5 MBPDF
LC-X80 Pjnet-30 ManualLC-X80 Pjnet-30 Manual10.3 MBPDF
LC-X80 Pjnet-50 ManualLC-X80 Pjnet-50 Manual11.8 MBPDF
LC-X800 Owners ManualLC-X800 Owners Manual7.6 MBPDF
LC-X800A Owners ManualLC-X800A Owners Manual7.6 MBPDF
LC-X800A Owners Manual Correction NoticeLC-X800A Owners Manual Correction Notice44.5 KBPDF
LC-X80 Remote Control CodesLC-X80 Remote Control Codes71.7 KBPDF
LC-X800 Remote Control CodesLC-X800 Remote Control Codes111.1 KBPDF
LC-X800A Remote Control CodesLC-X800A Remote Control Codes111.1 KBPDF
LC-X80 RS-232 Control SoftwareLC-X80 RS-232 Control Software1.4 MB
LC-X800 RS-232 Control SoftwareLC-X800 RS-232 Control Software1.4 MB
LC-X800A RS-232 Control SoftwareLC-X800A RS-232 Control Software1.4 MBZIP
LC-X80 RS-232 Basic Serial CommandsLC-X80 RS-232 Basic Serial Commands295.5 KBPDF
LC-X80 RS-232 Extended Serial CommandsLC-X80 RS-232 Extended Serial Commands484.8 KBPDF
LC-X800 RS-232 Basic Serial CommandsLC-X800 RS-232 Basic Serial Commands260.2 KBPDF
LC-X800 RS-232 Extended Serial CommandsLC-X800 RS-232 Extended Serial Commands579.6 KBPDF
LC-X800A RS-232 Basic Serial CommandsLC-X800A RS-232 Basic Serial Commands260.2 KBPDF
LC-X800A RS-232 Extended Serial CommandsLC-X800A RS-232 Extended Serial Commands579.6 KBPDF
LC-X80 SpecificationsLC-X80 Specifications44.0 KBPDF
LC-X800 SpecificationsLC-X800 Specifications69.4 KBPDF
LC-X800A SpecificationsLC-X800A Specifications73.8 KBPDF

Related Products

610 334 2788 Lamp
610 334 2788 Lamp
Rated Power: 330W
Lamp type: NSH
Life Expectancy: 3000h
Lamp Warranty: 90 days (Pro-Rata)
610 334 3747 Filter
610 334 3747 Filter
Replacement Filter Cartridge (Auto Rolling Filter)
AH-32012 Lens
AH-32012 Lens
Fixed Focus FL:.88″ (22.3mm) f: 2.5 On Axis only!
AH-24241 Lens
AH-24241 Lens
Power Zoom & Focus FL: 4.41″ ~ 6.10″ ( 112 ~ 155mm ) f: 2.10 ~ 2.70
AH-23132 Lens
AH-23132 Lens
Power Zoom & Focus FL: 2.50"~4.39" (63.5~111.5mm) f: 2.00~2.90
AH-23122 Lens
AH-23122 Lens
Power Zoom & Focus FL: 1.35″~1.90″ (34.3~48.2mm) f: 2.50~3.00
945 047 2771 Lens
945 047 2771 Lens
Power Zoom & Focus FL: 1.90″~2.47″ (48.2mm~62.6mm) f: 1.7~2.0
0001-4322 Lens
0001-4322 Lens
Manual Zoom & Focus FL: 6.00″~ 9.00″ (150~230 mm) f:3.5
0001-4321 Lens
0001-4321 Lens
Manual Zoom & Focus FL: 5.20″~ 8.70″ ( 132 ~ 220 mm ) f:3.0
0001-4320 Lens
0001-4320 Lens
Manual Zoom & Focus FL: 2.75″ ~ 5.00″ ( 70.0 ~ 125.0mm ) f:2.8
0001-4319 Lens
0001-4319 Lens
Fixed Focus FL: 1.2″ (30.5mm) f: 2.8 On-Axis only!
0001-4317 Lens
0001-4317 Lens
Fixed Focus FL: 1.0″ (25.4mm) f: 2.8 On-Axis only!
0001-4316 Lens
0001-4316 Lens
Fixed Focus FL:.826″ ( 21.0mm ) f: 2.5 On Axis only!
610 331 7601 Lens Adapter
610 331 7601 Lens Adapter
Quick Change Lens Mount Bracket ( for multiple optional lenses )
PjNET - 50 Network Manager
PjNET - 50 Network Manager
LC-HDT700, LC-WUL100A, LC-WUL100, LC-WXL200A, LC-WXL200AL, LC-X85, LC-XL200A, LC-XL200AL, LC-XL200, LC-XL200L, LC-XL100A, LC-XL100AL, LC-XL100, LC-XL100L

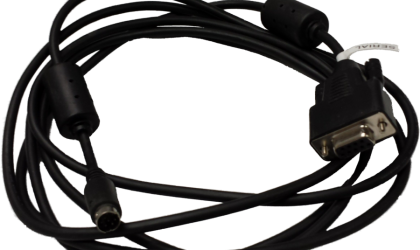

945 039 7210 Serial Cable
