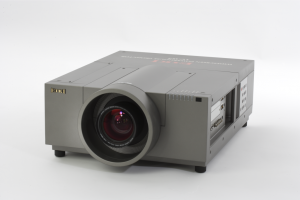

LC-X800A LCD Projector

Outstanding Features

Our brightest projector to operate on “household” current, the EIKI® LC-X800A sports the same optical and input configuration features that have made Powerhouse series projectors legendary for large venue applications. New with the LC-X800A, 3LCD+One imaging adds discrete yellow control to high contrast inorganic imaging, for vivid color.

Key Features

  • 12,000 ANSI lumens bright with 90% uniformity and a 4000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 10-bit color processing. 3LCD+One imaging expands color richness.
  • Supplied without lens. Range of power zoom and focus lenses available.
  • Vertical and horizontal power lens shift and digital keystone correction.
  • Includes a full set of analog and digital computer and video inputs.
  • Optional input modules are available for customization, including dual SDI.
  • Optional network interface module for browser-based projection management.
  • Self-advancing cartridge air filter reduces maintenance: up-to 11,000 hour life.
  • Power lens shift travels down as well as up, making inversion unnecessary.
  • Mechanical shutter for true black screen in "No Show" mode.
  • Includes wireless/wired remote control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote Control (with 2 AA Batteries), Wired Remote Cable (MiniStereo-MiniStereo), Color Management Software on CD-ROM, Lens Light Block Sheets x 3, Lens Adapter x 2, Lens Spacer, Lens Mounting Clamp.

Optional Accessories: Wideangle, Midrange and Telephoto Lenses, Replacement Lamps, Additional DVI-D & Dsub15 Input Module, Additional 5BNC/Video Input Module, DVI, Dsub15, 5BNC, and HD/SD-SDI Input Modules, ATA-Style Shipping Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post & Plate, Network Interface Module.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD+One
Brightness (ANSI) 12,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 4000:1
Panel Size 1.8" (inorganic)
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 40º; L/R 20º
Inputs Dsub15 x 1 or DVI-D (w/HDCP); BNC x 5 or BNC x 3 or BNC x 1 or S-Video x 1; Empty module bay x 2
Outputs  ---
Sound System  ---
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 341 9497 (2)
Fan Noise As low as 42 dBA
Air Filter Cartridge (up to 10,000 hours)
Maximum Pitch Up to 360°
Weight 60.85 lb (27.6 kg)
Ceiling Mount Part # 0173-4325
 NameDescriptionSizeType
Icon of LC-X800A Cad DrawingLC-X800A Cad Drawing42.0 KB
Icon of LC-X800A Cad Drawing DxfLC-X800A Cad Drawing Dxf200.7 KB
Icon of LC-X800A Color Data SheetLC-X800A Color Data Sheet879.1 KB
Icon of LC-X800A Hi-res Image Beauty1LC-X800A Hi-res Image Beauty1LC-X800A Hi-res Image Beauty19.6 MBZIP, TIF
Icon of LC-X800A Hi-res Image Beauty2LC-X800A Hi-res Image Beauty2LC-X800A Hi-res Image Beauty210.0 MBZIP, TIF
Icon of LC-X800A Hi-res Image ConnectionsLC-X800A Hi-res Image ConnectionsLC-X800A Hi-res Image Connections10.0 MBZIP, TIF
Icon of LC-X800A Hi-res Image FrontLC-X800A Hi-res Image FrontLC-X800A Hi-res Image Front8.5 MBZIP, TIF
Icon of LC-X800A Hi-res Image RearLC-X800A Hi-res Image RearLC-X800A Hi-res Image Rear8.8 MBZIP, TIF
Icon of LC-X800A Hi-res Image Side1LC-X800A Hi-res Image Side1LC-X800A Hi-res Image Side18.0 MBZIP, TIF
Icon of LC-X800A Hi-res Image Side2LC-X800A Hi-res Image Side2LC-X800A Hi-res Image Side27.6 MBZIP, TIF
Icon of LC-X800A Lens ChartLC-X800A Lens ChartLC-X800A Lens Chart41.5 KBPDF
Icon of LC-X800A Owners ManualLC-X800A Owners ManualLC-X800A Owners Manual7.6 MBPDF
Icon of LC-X800A Owners Manual Correction NoticeLC-X800A Owners Manual Correction NoticeLC-X800A Owners Manual Correction Notice44.5 KBPDF
Icon of LC-X800A Remote Control CodesLC-X800A Remote Control CodesLC-X800A Remote Control Codes111.1 KBPDF
Icon of LC-X800A RS-232 Control SoftwareLC-X800A RS-232 Control Software1.4 MB
Icon of LC-X800A RS-232 Basic Serial CommandsLC-X800A RS-232 Basic Serial CommandsLC-X800A RS-232 Basic Serial Commands260.2 KBPDF
Icon of LC-X800A RS-232 Extended Serial CommandsLC-X800A RS-232 Extended Serial CommandsLC-X800A RS-232 Extended Serial Commands579.6 KBPDF
Icon of LC-X800A SpecificationsLC-X800A SpecificationsLC-X800A Specifications73.8 KBPDF

Related Products

0173-4325 Ceiling Mount
0173-4325 Ceiling Mount
Heavy Duty Ceiling Projector Mount
0183-4326 Shipping Case
0183-4326 Shipping Case
Shipping Case "Tilt & Roll" ( hard ATA type ) With Lens Storage Dim: 44" x 26" x 16" Net Weight: 61 lbs.
AH-72148A Module
AH-72148A Module
Network Module ( Sound: N/A, Control: RJ-45, D-Sub 9 Pin)
AH-72217A Module
AH-72217A Module
HD / SD-SDI ( BNC x 3 ) ( Sound: N/A, Control: N/A) Max Resolution = HD 1080p
AH-72223A Module
AH-72223A Module
DVI-D / D-sub 15 ( Sound: D-sub 15 pin )
AH-72225A Module
AH-72225A Module
5 BNC / S-Video ( CV/Y, Pb, Pr )
610 353 1335 lens adapter type 1
610 353 1335 lens adapter type 1
Quick Change Lens Mount Brkt ( Type 1 lenses - 4 hole outer side )
610 353 1342 Lens Adapter type 2
610 353 1342 Lens Adapter type 2
Quick Change Lens Mount Bracket ( for Type 2 lenses - old type
0001-4260 Lens
0001-4260 Lens
Manual Zoom & Focus FL: 4.49″ ~ 7.72″ ( 114 ~ 196mm ) f:2.00
0001-4261 Lens
0001-4261 Lens
Manual Zoom & Focus FL: 7.25″~12.38″ ( 184 ~ 314mm ) f:2.8
0001-4297 Lens
0001-4297 Lens
Manual Zoom & Focus FL: 2.75" ~ 5.00" ( 70.0 ~ 125.0mm ) f:2.0
945 044 0978 Lens
945 044 0978 Lens
Power Zoom & Focus FL:2.98″ ~ 3.84″ ( 75.7 ~ 97.5mm ) f:2.00 ~ 2.30
610 335 9830 Filter
610 335 9830 Filter
Replacement Filter Cartridge (Auto Rolling Filter)
610 341 9497 Lamp
610 341 9497 Lamp
Rated Power: 330W
Lamp type: NSHA
Life Expectancy: 3000h
Lamp Warranty: 6 months / 500h (whichever comes first)
(2) used in each projector
