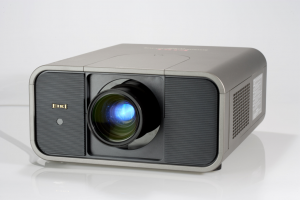

LC-X85 LCD Projector

Breakthrough Features

New 3LCD+ imaging system for high brightness and color purity.  Our brightest portable: 7000 ANSI Lumens at 2200:1 contrast.  Inorganic imaging engine is optimized for extended use.  Self-advancing cartridge air filter reduces maintenance.  Horizontal lens shift and vertical projector orientation.  Compatibility up to WUXGA analog, 1080p(psf/24/25/30)digital.  NEW Mechanical Shutter for true “black screen.”  NEW assignable audio inputs for “audio-follows-video” switching.

Key Features

  • 7,000 ANSI lumens bright with 90% uniformity and a 2200:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • 3LCD+One imaging system delivers more sophisticated color.
  • 10-bit color processing, for superior color reproduction.
  • A wide range of optional lenses is available. Projects images up-to 400” diagonal.
  • Vertical and horizontal power lens shift and digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Includes most professional input configurations, including DVI-D and 5BNC.
  • Optional network module for projector monitoring and control.
  • Self-advancing cartridge air filter provides up-to 10,000 hours use.
  • Wireless/wired remote with mouse control. Up-to 49x digital zoom.
  • Variable power management option. Optional local or remote keylock.
  • Custom warm-up screen option. Built-in color auto picture control.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Owner's Manual on CD-ROM, Quick Start Guide, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote with Mouse Control (with 2 AAA Batteries), USB Cable for Computer Mouse Control, Wired Remote Cable (MiniStereo- MiniStereo), Lens Mount Attachment, Lens Spacer, Lens Light Block Sheet.

Optional Accessories: Replacement Lamp, Soft Carry Bag with Wheels and Telescoping Handle, ATA-Style Shipping Case with Wheels and Telescoping Handle, Wideangle, Midrange and Telephoto Lenses, Ceiling Mount, Ceiling Post & Plate, 100 ft (30 m) Wired Remote Cable, PjNET Network Interface, Replacement Air Filter Cartridge.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)
()

Display Technology 3LCD+One
Brightness (ANSI) 7,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080p
Contrast Ratio 2200:1
Panel Size 1.3" (inorganic)
Lens Type (Throw:Width) Supplied without lens
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction U/D 40º; L/R 20º
Inputs Dsub15 x 1 or DVI-D (w/HDCP); BNC x 5 or BNC x 3;RCA x 1 or RCA x 3 or S-Video x 1; MiniStereo x 2
Outputs Dsub15 x 1; MiniStereo x 1
Sound System  ---
Network Control Wired LAN monitor & control and system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 341 1941
Fan Noise As low as 35 dBA
Air Filter Cartridge (10,000 hours)
Maximum Pitch Up to 360°
Weight 25.1 lb (11.4 kg)
Ceiling Mount Part # 0173-4313
NameDescriptionSizeType
LC-X85 Cad Drawing Without Lens42.7 KB
LC-X85 Cad Drawing Without Lens Dxf142.4 KB
LC-X85 Color Data Sheet335.2 KB
LC-X85 Hi-res Image Beauty1LC-X85 Hi-res Image Beauty112.3 MBZIP, TIF
LC-X85 Hi-res Image Beauty2LC-X85 Hi-res Image Beauty211.9 MBZIP, TIF
LC-X85 Hi-res Image ConnectionsLC-X85 Hi-res Image Connections4.6 MBZIP, TIF
LC-X85 Hi-res Image FrontLC-X85 Hi-res Image Front13.7 MBZIP, TIF
LC-X85 Hi-res Image RemoteLC-X85 Hi-res Image Remote1.0 MBZIP, TIF
LC-X85 Hi-res Image Side1LC-X85 Hi-res Image Side111.8 MBZIP, TIF
LC-X85 Hi-res Image Side2LC-X85 Hi-res Image Side211.5 MBZIP, TIF
LC-X85 Lens ChartLC-X85 Lens Chart26.0 KBPDF
LC-X85 Owners ManualLC-X85 Owners Manual7.7 MBPDF
LC-X85 Remote Control CodesLC-X85 Remote Control Codes68.9 KBPDF
LC-X85 RS-232 Control SoftwareLC-X85 RS-232 Control Software1.4 MB
LC-X85 RS-232 Basic Serial CommandsLC-X85 RS-232 Basic Serial Commands195.6 KBPDF
LC-X85 RS-232 Extended Serial CommandsLC-X85 RS-232 Extended Serial Commands533.6 KBPDF
LC-X85 SpecificationsLC-X85 Specifications46.1 KBPDF

Related Products

610 341 1941 Lamp
610 341 1941 Lamp
Rated Power: 330W
Lamp type: NSH
Life Expectancy: 3000h
Lamp Warranty: 6 months / 500h (whichever comes first)

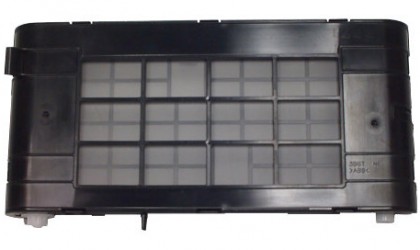

610 334 3747 Filter
610 334 3747 Filter
Replacement Filter Cartridge (Auto Rolling Filter)
AH-32012 Lens
AH-32012 Lens
Fixed Focus FL:.88″ (22.3mm) f: 2.5 On Axis only!
AH-24241 Lens
AH-24241 Lens
Power Zoom & Focus FL: 4.41″ ~ 6.10″ ( 112 ~ 155mm ) f: 2.10 ~ 2.70
AH-23132 Lens
AH-23132 Lens
Power Zoom & Focus FL: 2.50"~4.39" (63.5~111.5mm) f: 2.00~2.90
AH-23122 Lens
AH-23122 Lens
Power Zoom & Focus FL: 1.35″~1.90″ (34.3~48.2mm) f: 2.50~3.00
945 047 2771 Lens
945 047 2771 Lens
Power Zoom & Focus FL: 1.90″~2.47″ (48.2mm~62.6mm) f: 1.7~2.0
0001-4322 Lens
0001-4322 Lens
Manual Zoom & Focus FL: 6.00″~ 9.00″ (150~230 mm) f:3.5
0001-4321 Lens
0001-4321 Lens
Manual Zoom & Focus FL: 5.20″~ 8.70″ ( 132 ~ 220 mm ) f:3.0
0001-4320 Lens
0001-4320 Lens
Manual Zoom & Focus FL: 2.75″ ~ 5.00″ ( 70.0 ~ 125.0mm ) f:2.8
0001-4319 Lens
0001-4319 Lens
Fixed Focus FL: 1.2″ (30.5mm) f: 2.8 On-Axis only!
0001-4317 Lens
0001-4317 Lens
Fixed Focus FL: 1.0″ (25.4mm) f: 2.8 On-Axis only!
0001-4316 Lens
0001-4316 Lens
Fixed Focus FL:.826″ ( 21.0mm ) f: 2.5 On Axis only!

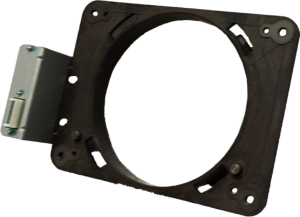

610 331 7601 Lens Adapter
610 331 7601 Lens Adapter
Quick Change Lens Mount Bracket ( for multiple optional lenses )
PjNET - 50 Network Manager
PjNET - 50 Network Manager
LC-HDT700, LC-WUL100A, LC-WUL100, LC-WXL200A, LC-WXL200AL, LC-X85, LC-XL200A, LC-XL200AL, LC-XL200, LC-XL200L, LC-XL100A, LC-XL100AL, LC-XL100, LC-XL100L
0183-4311 Shipping Case
0183-4311 Shipping Case
Shipping Case "Tilt & Roll" ( hard ATA type ) Dim: 29.8" x 19" x 13" Net Weight: 38 lbs.
0173-4313 Ceiling Mount
0173-4313 Ceiling Mount
LC-HDT700, LC-X85
