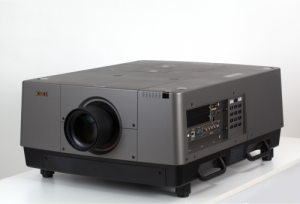

LC-XT6 LCD Projector

Key Features

  • 16,000 ANSI lumens bright with 90% uniformity and a 2500:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WXGA.
  • Supports analog and digital video input in all color standards.
  • 3LCD+One imaging system delivers more sophisticated color.
  • 10-bit color processing, for superior color reproduction.
  • Supplied without lens. Range of power zoom and focus lenses available.
  • Bi-directional Vertical & Horizontal power lens shift, keystone and corner correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Compatible with AMX Device Discovery System.
  • DVI-D (with HDCP) and HDMI® inputs support digital computer and video.
  • Built-in wired LAN connection for projector monitoring and control.
  • Pleated air filter (up to 5,000 hours). Optional smoke filter.
  • Edge Blending functions and color matching.
  • Mechanical shutter for true black screen. 2 and 4 lamp operation.
  • Four hot-swappable lamps. Half inch (1.2 cm) steel plate chassis.
  • 3 year/6000 hrs. (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Color Management Software on CD-ROM, Power Cord, Power Cord Clamp, Lens Attachment, Lens Light Block Sheets x 3, Lens Spacers x 3, Lens Safety Clamps x 2, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless/Wired Remote Control (with 2 AAA Batteries), Wired Remote Cable (MiniStereo-MiniStereo).

Optional Accessories: Replacement Lamps, Wideangle, Midrange and Telephoto Lenses, Additional DVI-D & Dsub15 Input Module, Additional 5BNC & S-Video Input Module, HD/SD-SDI Input Module, Dual-Link SDI Input Module, Replacement Air Filter, Smoke Resistant Filter Kit, ATA-Style Shipping Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file) () ()

Display Technology 3LCD+One
Brightness (ANSI) 16,000 lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080i/p
Contrast Ratio 2500:1
Panel Size 1.8" (inorganic)
Lens (Throw:Width) Changeable - Does not come with Lens
Power Lens Shift U/D 50%; L/R 10%
Keystone Correction Digital: U/D up-to 40º; L/R up-to 40º
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI x 1; BNC x 5; 3BNC; 1BNC; S-Video x 1;Empty module bay x 2; (requires 240 V/60 Hz power)
Outputs  ---
Sound System  ---
Network Control Wired LAN monitor & control & system management with optional module
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life Up to 3,000 hours per lamp
Lamp Part # 610 350 9051 (4)
Fan Noise As low as 48 dBA
Air Filter up-to 5,000 hours
Maximum Pitch up-to 360°
Weight 102.5 lb (46.5 kg)
Ceiling Mount Part # 0173-4352
LC-XT6 Cad Drawing87.2 KB
LC-XT6 Cad Drawing Dxf3.8 MB
LC-XT6 Color Data Sheet505.6 KB
LC-XT6 Hi-res Image Beauty1LC-XT6 Hi-res Image Beauty16.8 MBZIP, TIF
LC-XT6 Hi-res Image Beauty2LC-XT6 Hi-res Image Beauty28.5 MBZIP, TIF
LC-XT6 Hi-res Image FilterLC-XT6 Hi-res Image Filter8.5 MBZIP, TIF
LC-XT6 Hi-res Image RemoteLC-XT6 Hi-res Image Remote6.1 MBZIP, TIF
LC-XT6 Lens ChartLC-XT6 Lens Chart11.9 KBPDF
LC-XT6 Lens ChartLC-XT6 Lens Chart76.1 KBPDF
LC-XT6 Network Setup ManualLC-XT6 Network Setup Manual2.8 MBPDF
LC-XT6 Owners ManualLC-XT6 Owners Manual7.7 MBPDF
LC-XT6 Remote Control CodesLC-XT6 Remote Control Codes199.2 KBPDF
LC-XT6 RS-232 Basic Serial CommandsLC-XT6 RS-232 Basic Serial Commands174.4 KBPDF
LC-XT6 RS-232 Extended Serial CommandsLC-XT6 RS-232 Extended Serial Commands445.5 KBPDF
LC-XT6 SpecificationsLC-XT6 Specifications119.2 KBPDF
