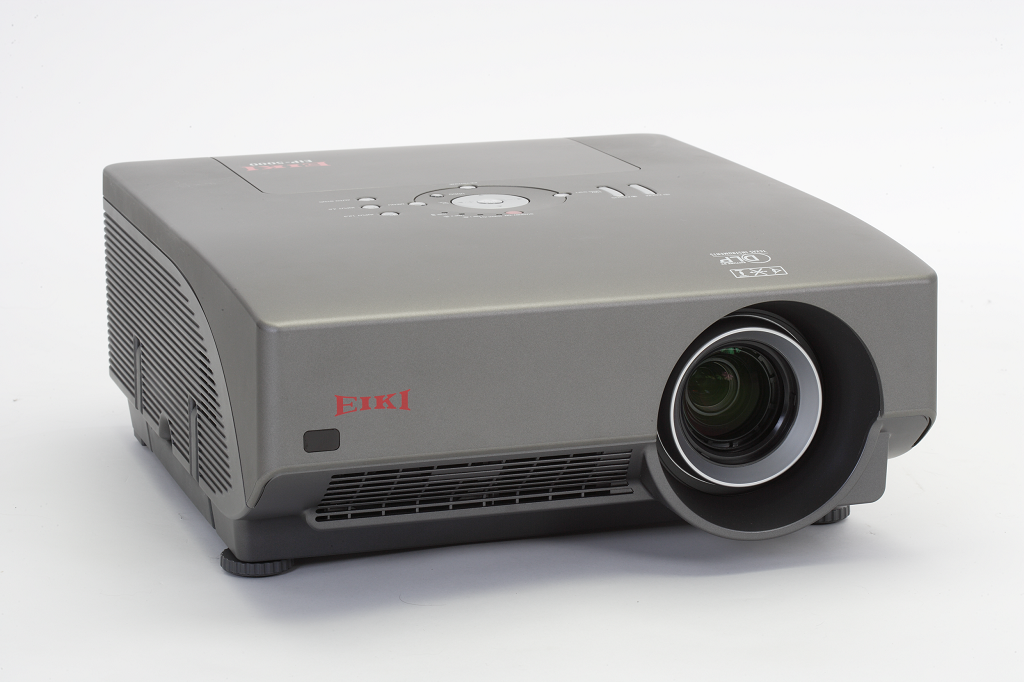

EIP-5000 DLP™ Projector
EIP-5000L (no lens) DLP™ Projector

Features:

  • 5200 ANSI Lumens bright, at 90% uniformity, and 1200:1 contrast ratio.
  • XGA resolution. UXGA, SXGA+, SXGA, SVGA, VGA & MAC compatible.
  • DLP® imaging technology delivers a "seamless" high contrast image.
  • Power Zoom and Focus Lens. Optional Wideangle and Telephoto lenses.
  • Horizontal & Vertical Lens Shift. H. V & Geometric Keystone Correction.
  • Dual Lamp System provides redundancy and permits 4 brightness levels.
  • Wireless/wired remote. Computer mouse control. 8-power digital zoom.
  • RS-232 and LAN Control Compatible: Built in DB9, and RJ45 & web server.
  • Smart data compression / expansion, and video scaling. sRGB Compatibility.
  • Displays both Regular 4:3 and Widescreen 16:9 ratio video formats.
  • Converts Interlace video to Progressive scan. 2-3 Pulldown Support.
  • Accepts Analog, and (DVI w/HDCP) video input signals.
  • Power Management, Keylock Security, and Custom Warmup Screen options.
  • Unique Projector Stack Control and VideoWall Signal Division features.
  • 3 Year Projector Warranty!

Included Accessories:

  • Operation manual.
  • CD-Rom (Setup Guide).
  • System lock caution.
  • Quick guide.
  • AC Power Cord 12 ft. (3.6M).
  • Lens Cover.
  • VGA type Computer Input Cable 9.8 ft. (3m).

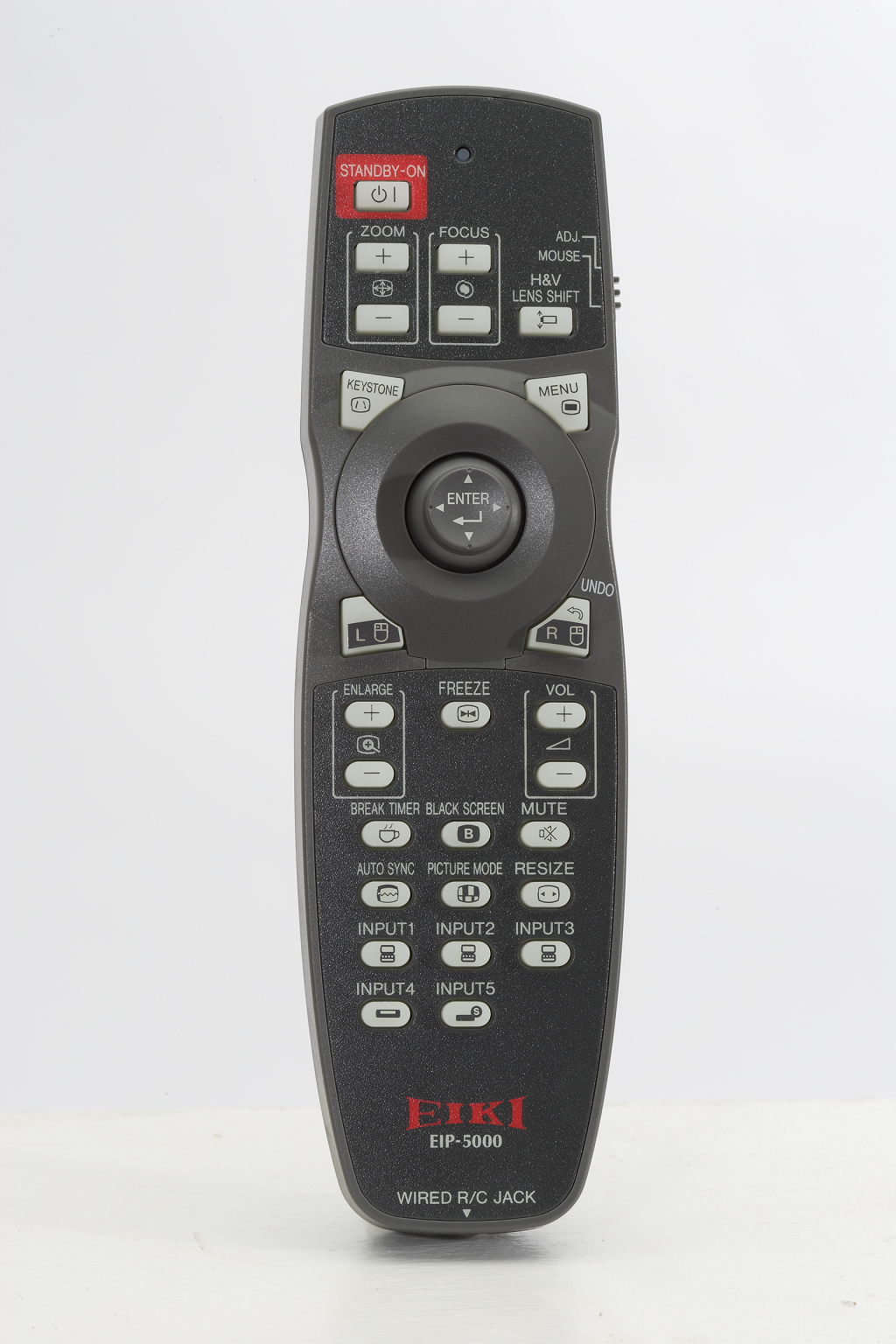

  • Wireless/wired Remote With Mouse Control and & (2 x AA) Batteries.
  • Remote Mouse Receiver on 5.25ft. (1.6M)
  • USB-A cable.

Optional Accessories:

  • Replacement Lamp.
  • Soft Carry Bag with Wheels and Telescoping Handle.
  • ATA-Style Shipping Case with Wheels and Telescoping Handle.
  • Wideangle and Telephoto lenses.
  • Ceiling Mount.
  • Ceiling Post and Plate.
  • Eztrol Local Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology DDR DLP™ Single DMD™
Brightness (ANSI) 5200 ANSI lumens;3600 hours in ECO mode
Native Resolution 1024 x 768
Max. Computer Input UXGA
Max. Video Input 1080i (50/60)
Contrast Ratio 1200 :1
Panel Size 0.7"
Lens Type (Throw:Width) 1.8~2.2:1
Power Lens Shift Power Lens Shift (L:R~R:L) 6.5:3.5 ~ 3.5:6.5
Keystone Correction Power Lens Shift (Top:Bottom) 10:0 ~ 1:1

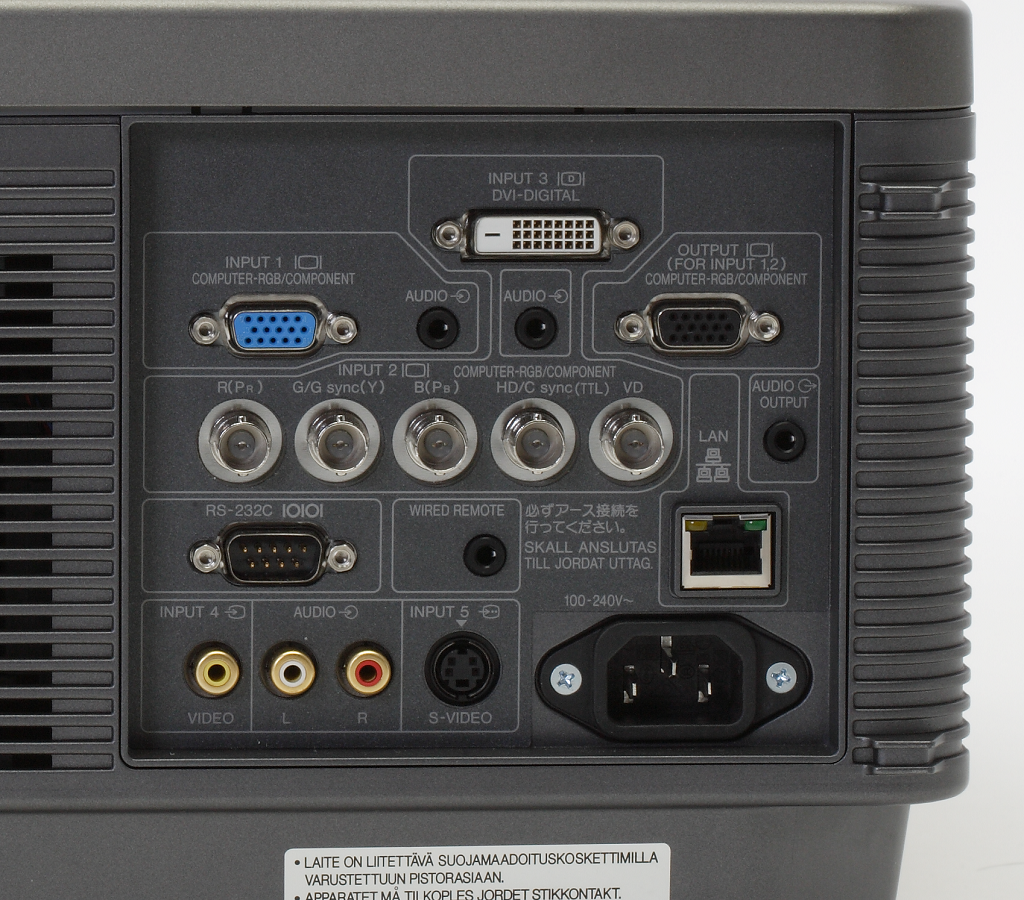

Inputs Dsub15 x 1 - Analog RGB; Dsub15 x 1 #2 - Data/Video Monitor (shared: input 1 & 2); ministereo x 1 - Audio: Stereo: (L & R); 3 BNC or ( Composite/Component: Y, Pb/Cb, Pr/Cr ); 5 BNC - either Computer: (RGBHV) or Video: (RGBHV); ministereo x 1 - Audio: Stereo: (L&R) (shared with input 3); DVI-D - either Computer - Digital RGB or Video - Digital HDCP: (same); MiniStereo x 1 - Audio: Stereo: (L&R) (shared with input 2); RCA x 1 - Video: Composite; MiniStereo x 1 - Audio: Stereo: (L&R) (shared with input 5); S-Video x 1 - Video: S-Video; MiniStereo x 1 Audio: Stereo: (L&R) (shared with input 4); Dsub9 x 1 - RS-232 Control Port; MiniStereo x 1 - Wired Remote Port; MiniStereo x 1 #2 - Stereo: (L&R) (follows video); RJ45f LAN Interface - 100Base-TX 10/100 Mbps, auto-detecting.; RCA x 1 (yellow) - Video In (Composite); 4 pin DIN (S-Video) x 1 - S-Video Input (Y/C)
Outputs
Sound System Stereo: 3 WATTS RMS (each L & R); Stereo: 1.3 in. (3.3 cm) dia. (round) x 2
Network Control Full Function
Warranty 3 years
Lamp Life 2500 hours
Lamp Part # AH-50001 - Lamp #1; AH-50002 - Lamp # 2
Fan Noise as low as 35 dBA
Air Filter Standard
Maximum Pitch up to 9º up
Weight 33.2 lbs.
Ceiling Mount Part # 0173-5002
 NameDescriptionSizeType
Icon of EIP-5000 Cad DrawingEIP-5000 Cad Drawing47.5 KB
Icon of EIP-5000 Cad Drawing DxfEIP-5000 Cad Drawing Dxf97.6 KB
Icon of EIP-5000 Cad Drawing Opt Lens ProtrusionsEIP-5000 Cad Drawing Opt Lens Protrusions26.9 KB
Icon of EIP-5000 Color Data SheetEIP-5000 Color Data Sheet660.4 KB
Icon of EIP-5000 Hi-res Image Beauty1EIP-5000 Hi-res Image Beauty1EIP-5000 Hi-res Image Beauty13.9 MBZIP, TIF

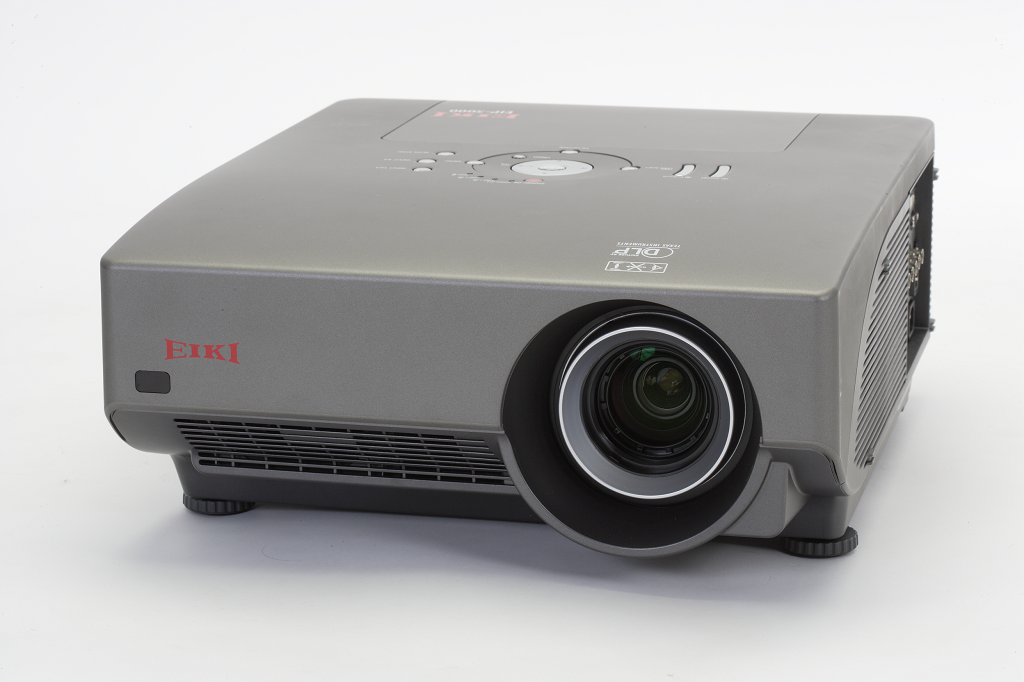

Icon of EIP-5000 Hi-res Image Beauty2EIP-5000 Hi-res Image Beauty2EIP-5000 Hi-res Image Beauty24.0 MBZIP, TIF

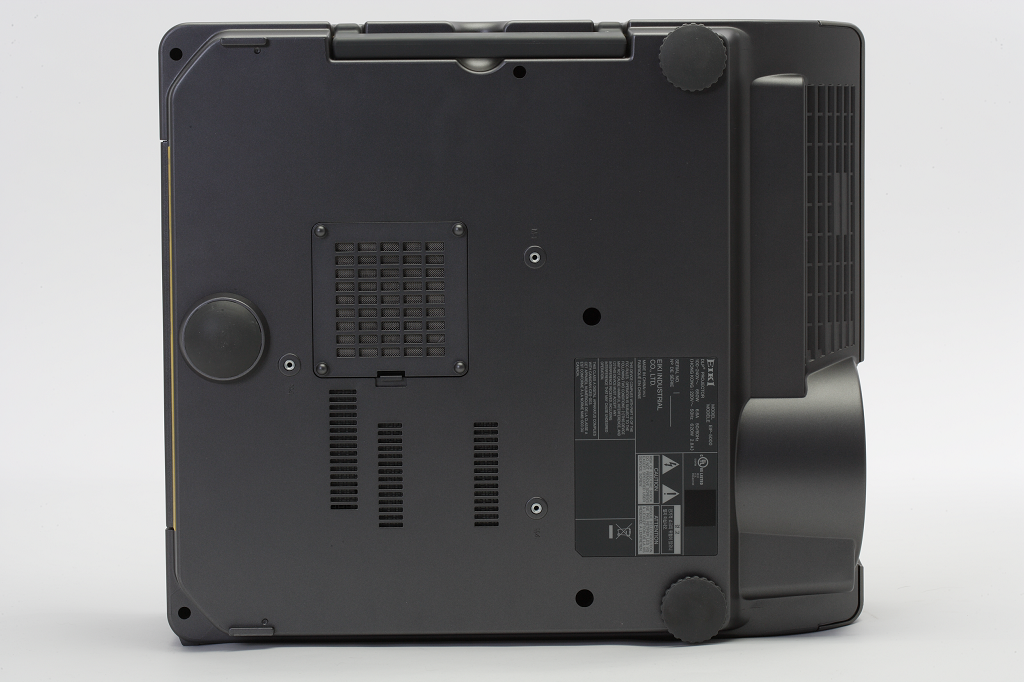

Icon of EIP-5000 Hi-res Image BottomEIP-5000 Hi-res Image BottomEIP-5000 Hi-res Image Bottom5.0 MBZIP, TIF
Icon of EIP-5000 Hi-res Image ConnectionsEIP-5000 Hi-res Image ConnectionsEIP-5000 Hi-res Image Connections4.0 MBZIP, TIF
Icon of EIP-5000 Hi-res Image ControlsEIP-5000 Hi-res Image ControlsEIP-5000 Hi-res Image Controls5.0 MBZIP, TIF

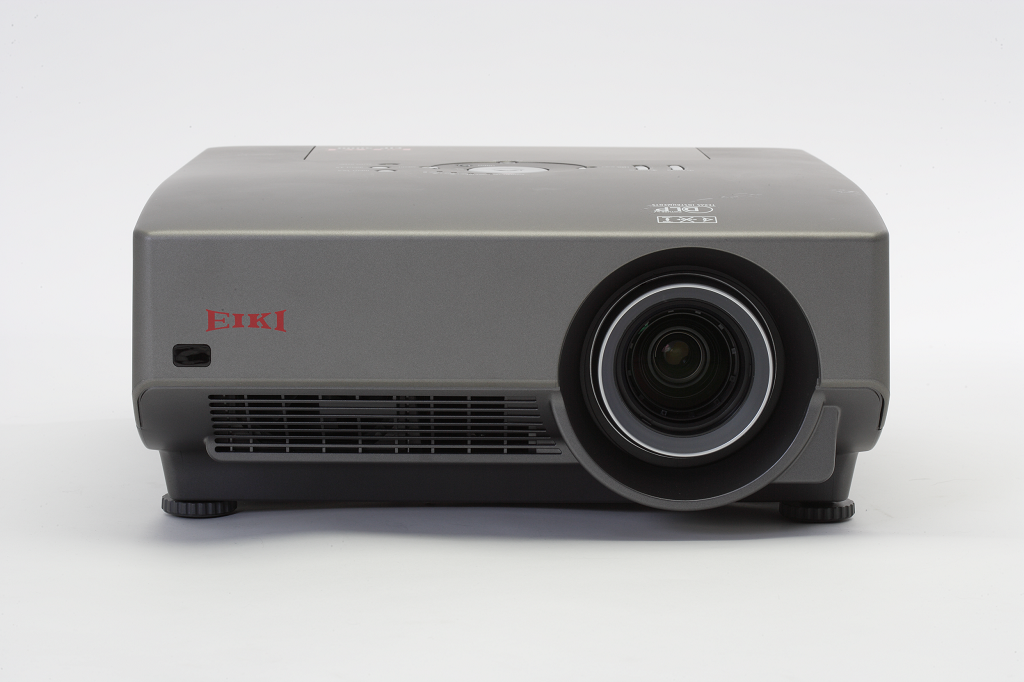

Icon of EIP-5000 Hi-res Image FrontEIP-5000 Hi-res Image FrontEIP-5000 Hi-res Image Front3.7 MBZIP, TIF

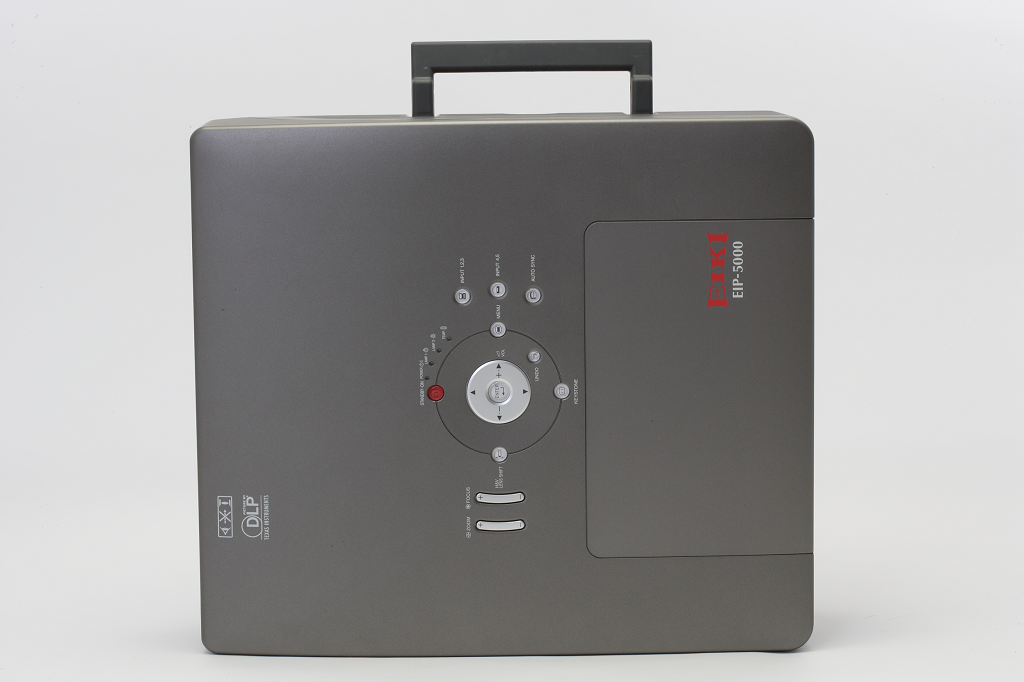

Icon of EIP-5000 Hi-res Image HandleEIP-5000 Hi-res Image HandleEIP-5000 Hi-res Image Handle4.3 MBZIP, TIF

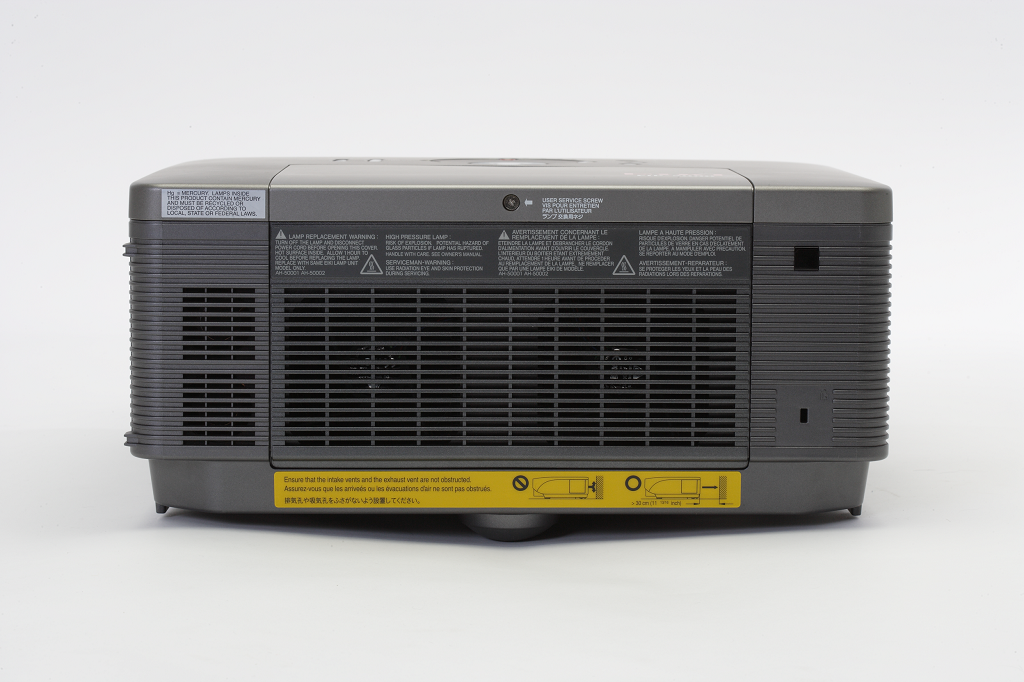

Icon of EIP-5000 Hi-res Image RearEIP-5000 Hi-res Image RearEIP-5000 Hi-res Image Rear4.1 MBZIP, TIF
Icon of EIP-5000 Hi-res Image RemoteEIP-5000 Hi-res Image RemoteEIP-5000 Hi-res Image Remote4.1 MBZIP, TIF

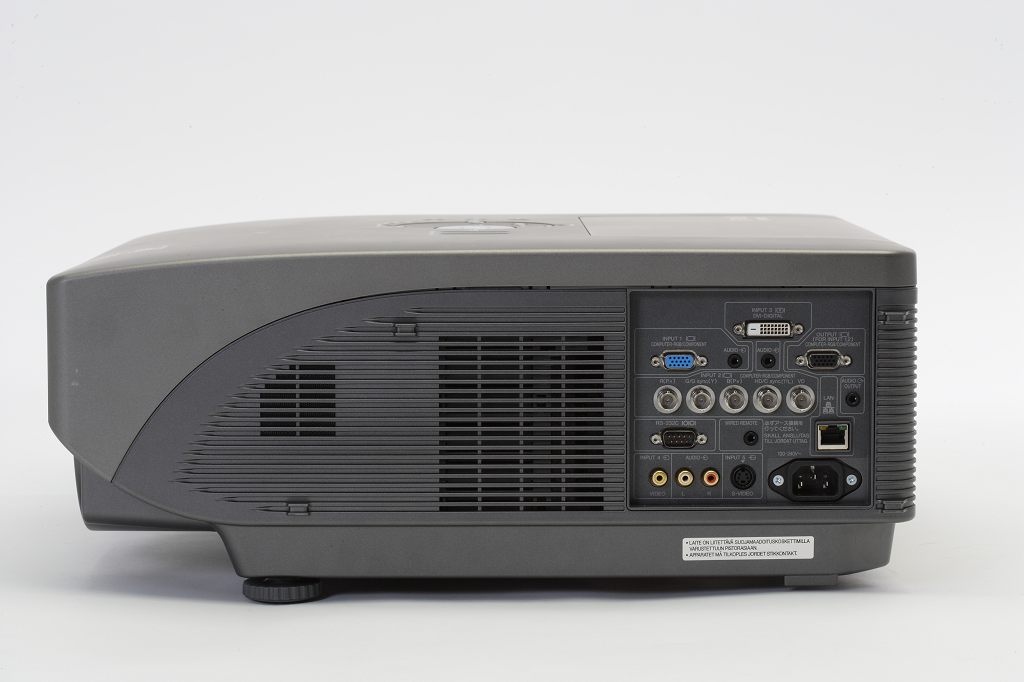

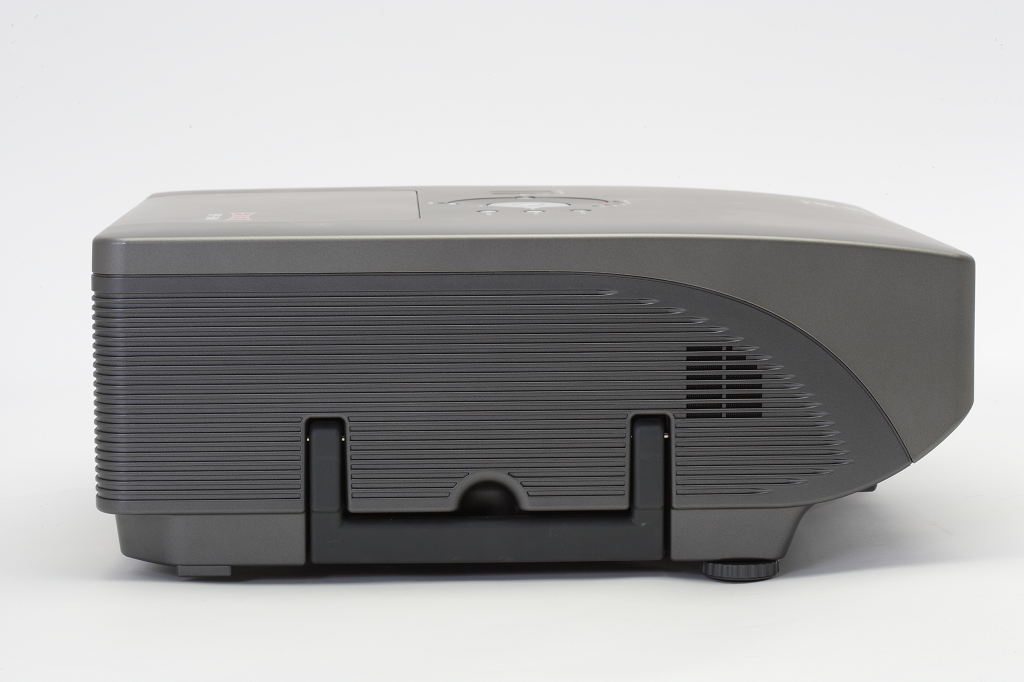

Icon of EIP-5000 Hi-res Image Side1EIP-5000 Hi-res Image Side1EIP-5000 Hi-res Image Side14.0 MBZIP, TIF
Icon of EIP-5000 Hi-res Image Side2EIP-5000 Hi-res Image Side2EIP-5000 Hi-res Image Side24.2 MBZIP, TIF
Icon of EIP-5000 Lens ChartEIP-5000 Lens ChartEIP-5000 Lens Chart28.2 KBPDF
Icon of EIP-5000 Owners ManualEIP-5000 Owners ManualEIP-5000 Owners Manual8.5 MBPDF
Icon of EIP-5000 Remote Control CodesEIP-5000 Remote Control CodesEIP-5000 Remote Control Codes190.3 KBPDF
Icon of EIP-5000 RS-232 Basic Serial CommandsEIP-5000 RS-232 Basic Serial CommandsEIP-5000 RS-232 Basic Serial Commands84.1 KBPDF
Icon of EIP-5000 SpecificationsEIP-5000 SpecificationsEIP-5000 Specifications117.4 KBPDF

Related Products

0173-5002 Ceiling Mount
0173-5002 Ceiling Mount
Custom Ceiling Projector Mount (Black)
9NK5041815100 Remote
9NK5041815100 Remote
Infrared & Wired and Mouse Control
AH-50001 Lamp
AH-50001 Lamp
Rated Power: 260W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days
(EIP-5000 needs one (1) each of AH-50001 and AH-50002 BOTH ARE REQUIRED)
AH-50002 Lamp
AH-50002 Lamp
Rated Power: 260W
Lamp type: UHP
Life Expectancy: 2000h
Lamp Warranty: 90 Days
(EIP-5000 needs one (1) each of AH-50001 and AH-50002 BOTH ARE REQUIRED)
