LC-XBM26 LCD Projector

KEY FEATURES

  • 2,600 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WSXGA+.
  • Supports analog video input in all color standards up-to 1080i.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 8-bit color processing yields a 16.7 million color palette.
  • Convenient midrange (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Two Dsub15 computer inputs. Switchable monitor output.
  • 10 W sound system. Mic input for PA. Closed Caption decoding (NTSC).
  • Built-in wired LAN connection for projector monitoring and control.
  • Power management and Eco mode help prolong lamp life.
  • Wireless remote control. Digital zoom 50-400%.
  • Color board modes. Custom warm-up screen option. Auto input selection.
  • Kensington® security slot. Local or remote keylock functions.
  • Warranties. Projector: 3 years. Air Filter: 2 years. Lamp: 1 year..

Included Accessories

  • Quick Start Guide,
  • Owner's Manual on CD-ROM,
  • Network Software on CD-ROM,
  • Power Cord,
  • VGA Computer Input Cable (Dsub15 to Dsub15),
  • Wireless Remote Control (with 2 AAA Batteries),
  • Lens Cap,
  • S-Video Input Cable (Dsub15 to S-Video).

Optional Accessories

  • Replacement Lamp,
  • Component Video Input Adapter Cable (Dsub15 to 3RCA),
  • RS232 Control Cable (Dsub9 to Dsub9),
  • Soft Carry Bag,
  • Ceiling Mount, Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology LCD Panels x 3
Brightness (ANSI) up-to 2,600 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WXGA
Max. Video Input 1080i
Contrast Ratio up to 2000:1
Panel Size 0.55'' (14 mm)
Lens Type (Throw:Width) 1.62-1.92:1
Vertical Lens Shift Fixed: 36% Up
Keystone Correction Digital: up-to 30° Up or Down
Inputs Video: Dsub15 x 2; S-Video x 1; RCA x 1;
Audio: MiniStereo x 1; Stereo RCA x 2;
Outputs Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1;
Sound System 10 Watt; 1.6 in (4.1 cm) x 1
Network Control Full Function
Warranty 3 years
Lamp Life Up to 6,000 hours
Lamp Part # 610 349 7518
Fan Noise As low as 29 dBa
Air Filter Replaceable, up-to 5,500 Hours
Maximum Pitch up-to 30° Up or Down
Weight 6.4 lb (2.9 kg)
Ceiling Mount Part # 0173-4293
NameDescriptionSizeType
LC-XBM26 Cad Drawing140.5 KB
LC-XBM26 Cad Drawing Dxf300.2 KB
LC-XBM26 Color Data Sheet836.5 KB

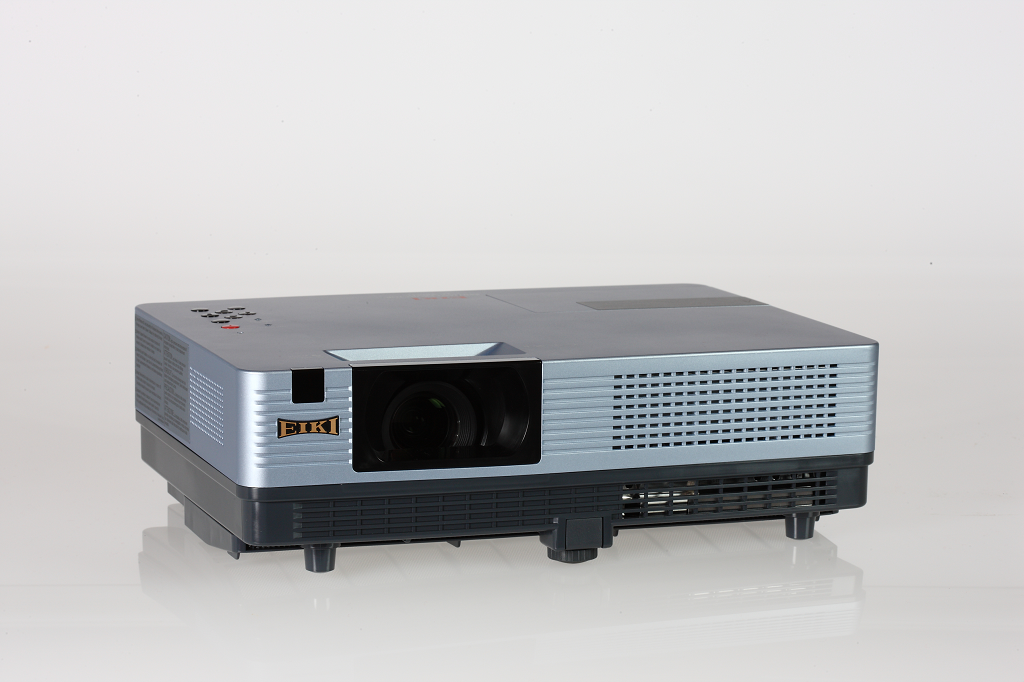

LC-XBM26 Hi-res Image Beauty1LC-XBM26 Hi-res Image Beauty14.2 MBJPG, ZIP
LC-XBM26 Hi-res Image Beauty2LC-XBM26 Hi-res Image Beauty24.0 MBJPG, ZIP

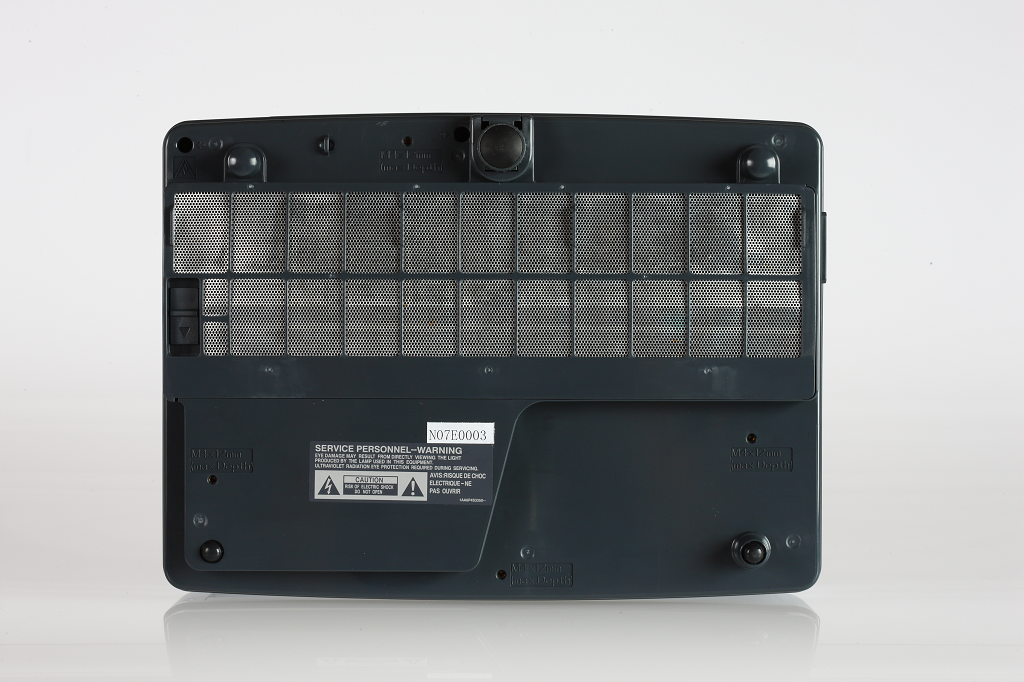

LC-XBM26 Hi-res Image BottomLC-XBM26 Hi-res Image Bottom5.4 MBJPG, ZIP
LC-XBM26 Hi-res Image ConnectionsLC-XBM26 Hi-res Image Connections5.6 MBJPG, ZIP

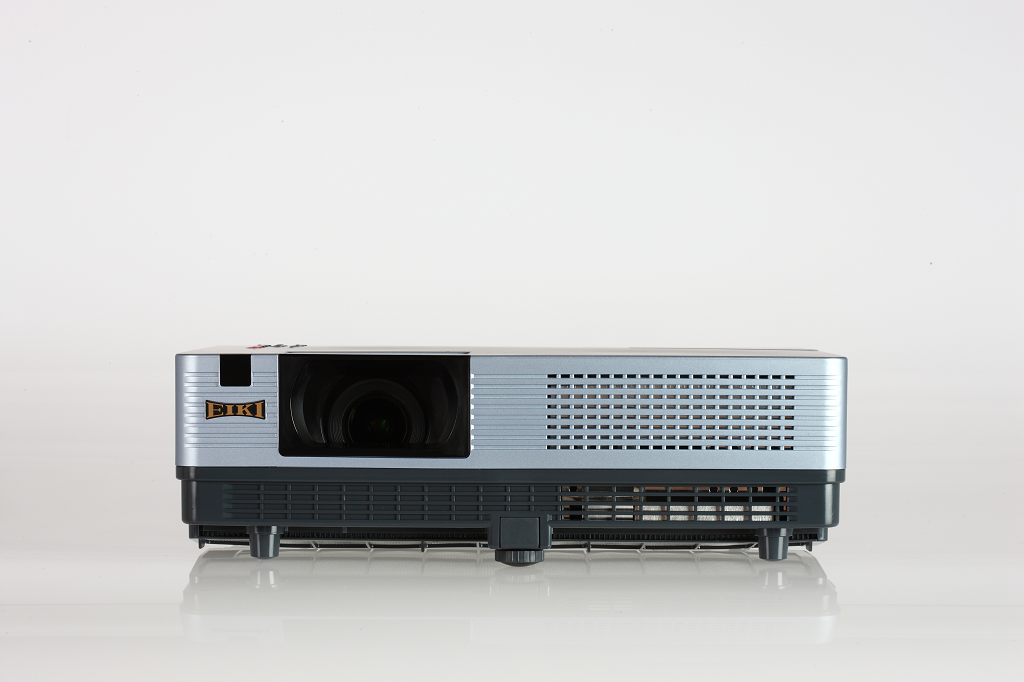

LC-XBM26 Hi-res Image FrontLC-XBM26 Hi-res Image Front3.9 MBJPG, ZIP
LC-XBM26 Hi-res Image RearLC-XBM26 Hi-res Image Rear4.0 MBJPG, ZIP

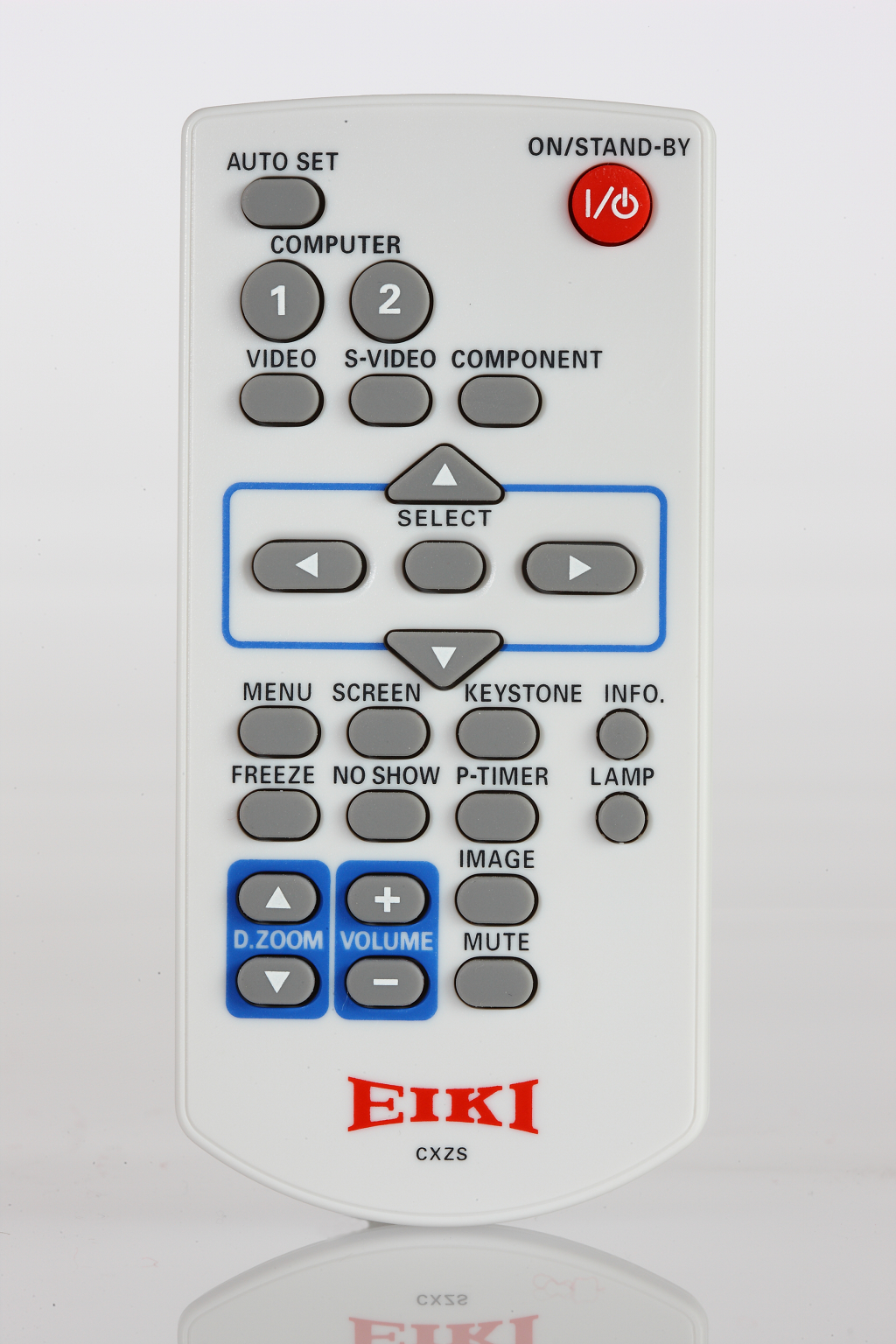

LC-XBM26 Hi-res Image RemoteLC-XBM26 Hi-res Image Remote3.6 MBJPG, ZIP

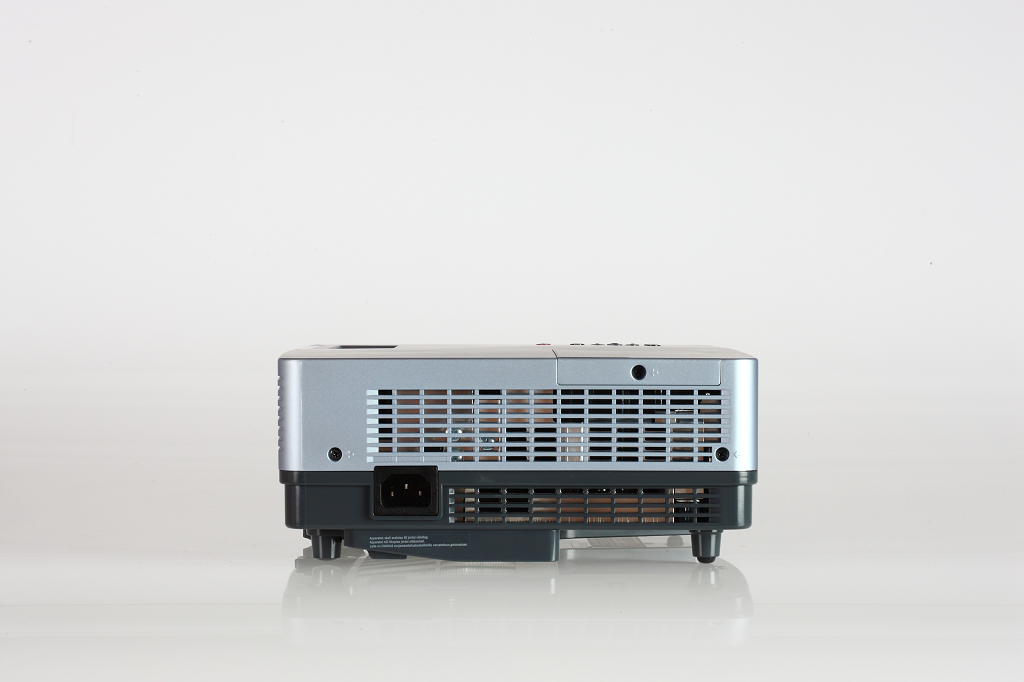

LC-XBM26 Hi-res Image Side1LC-XBM26 Hi-res Image Side13.7 MBJPG, ZIP

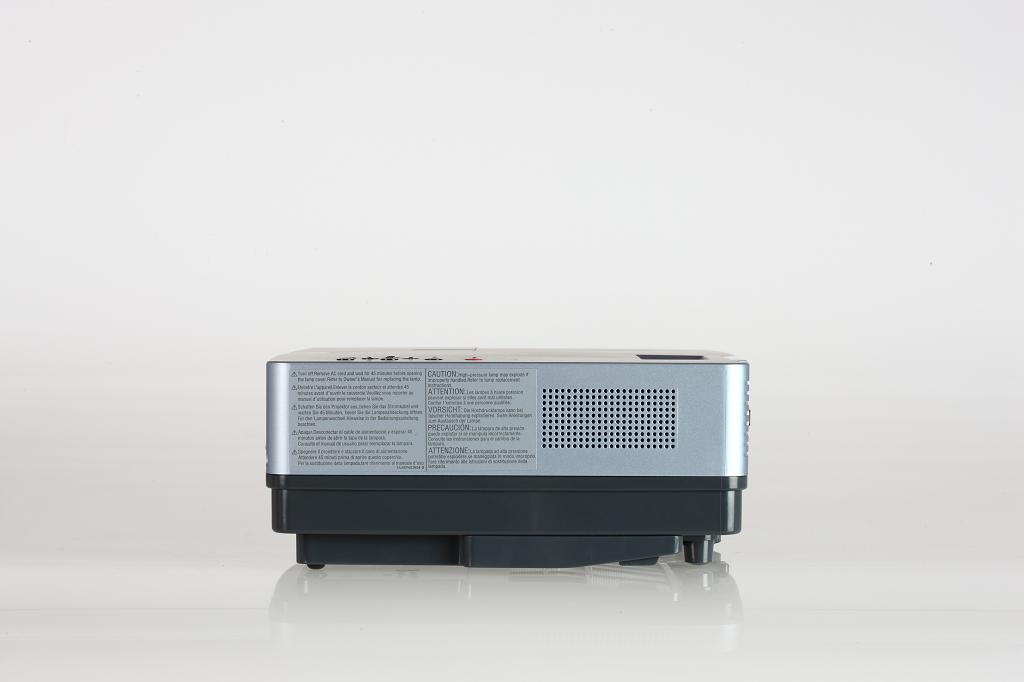

LC-XBM26 Hi-res Image Side2LC-XBM26 Hi-res Image Side23.8 MBJPG, ZIP

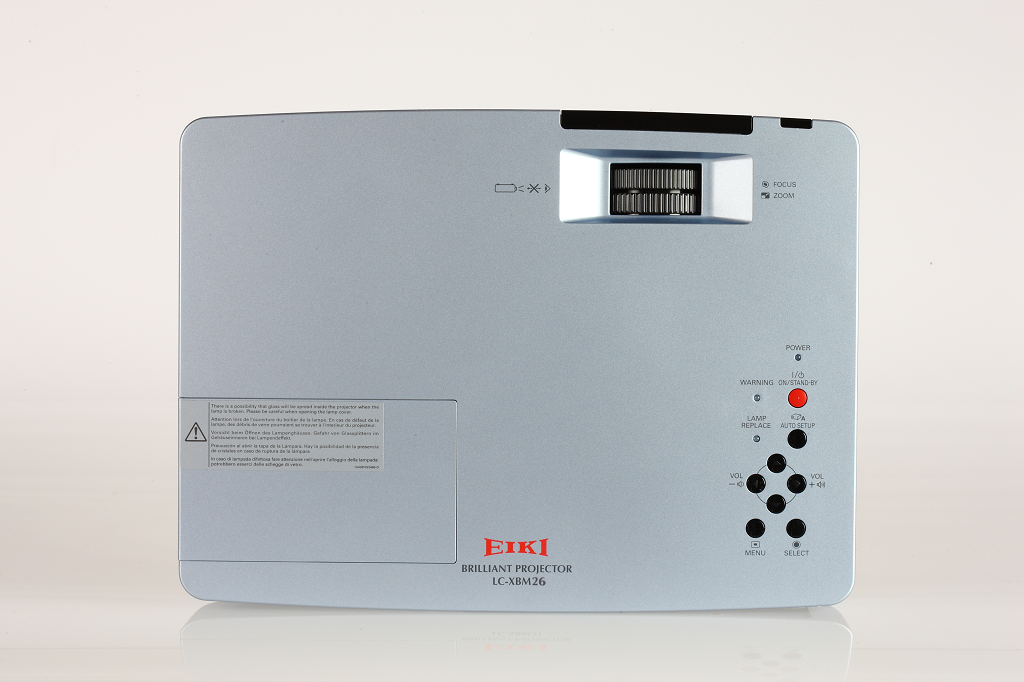

LC-XBM26 Hi-res Image TopLC-XBM26 Hi-res Image Top4.4 MBJPG, ZIP
LC-XBM26 Lens ChartLC-XBM26 Lens Chart12.6 KBPDF
LC-XBM26 Owners ManualLC-XBM26 Owners Manual6.6 MBPDF
LC-XBM26 Remote Control CodesLC-XBM26 Remote Control Codes29.3 KBPDF
LC-XBM26 RS-232 Control SoftwareLC-XBM26 RS-232 Control Software1.4 MB
LC-XBM26 RS-232 Basic Serial CommandsLC-XBM26 RS-232 Basic Serial Commands179.6 KBPDF
LC-XBM26 RS-232 Extended Serial CommandsLC-XBM26 RS-232 Extended Serial Commands437.3 KBPDF
LC-XBM26 SpecificationsLC-XBM26 Specifications304.9 KBPDF
