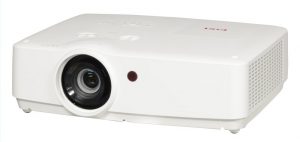

EK-302X Meeting Room Projector

Key Features

  • 5,600 ANSI lumens bright with 80% uniformity and a 8,000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI with MHL (Mobile High-Definition Link) displays HD Video from Smartphones & Tablets.
  • Convenient mid-range (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Horiz., Vert. & Corner Keystone Correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control. Digital zoom: 1/4~ x16.
  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Pin Cushion / Barrel image correction
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable (S-Video to Dsub15), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)



Display Technology 3LCD
Brightness (ANSI) 5,600 lumens
Native Resolution XGA (1024x768), 4:3
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 8,000:1
Imaging System 0.63 in (16 mm) inorganic LCD Panels x 3
Lens Type Attached - Manual Zoom and Focus
Keystone Correction Digital:V:+/- 30° (Auto) - H: +/- 15° (Auto), Corner Keystone
Inputs Image Signal Inputs
Computer 1 (Component/S-Video) Dsub15 x 1;
Computer 2 (switchable Monitor Out) Dsub15 x 1;
Digital Video (w/ HDCP & MHL) HDMI x 2;
USB Type A - Memory Viewer USB Type A x 1;
USB Type B - USB Display/Firmware USB Type B x 1;
Composite Video RCA x 1;
Audio Signal Inputs
Computer Audio MiniStereo x 1;
Video Audio RCA x 2 (L/R);
Outputs Computer Monitor (Computer 2) - Dsub15 x 1;
Audio Output Variable, Mono: MiniStereo x 1
Sound System Amplifier Stereo: 10 Watt; Speaker 1.4 in (3.7 cm) x 2 (Stereo)
Network Control Wired network control.
Wifi USB Type A - Wifi Dongle
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Estimated Lamp Life (Eco / Normal) 4,000 / 3,000 hours
Lamp Part # 23040049
Fan Noise (Eco / Normal) 35.5 dB / 40.0 dB
Air Filter -
Maximum Pitch Up-to 30° Up or Down
Weight 9.9 lb (4.5 kg)
Ceiling Mount Part # 0173-4293
 NameDescriptionSizeType
Icon of EK-302X Series Manual Korean Vol 4 161101EK-302X Series Manual Korean Vol 4 161101EK-302X series manual - Korean Vol. 4 161101 29.4 MBPDF
Icon of EK-302X Color Data SheetEK-302X Color Data SheetEK-302X Color Data Sheet469.7 KBPDF
Icon of EK-302X Hires Beauty ImageEK-302X Hires Beauty ImageEK-302X hires beauty image731.3 KBJPG, ZIP
Icon of EK-302X Hires Front ImageEK-302X Hires Front ImageEK-302X hires front image597.4 KBJPG, ZIP
Icon of EK-302X Hires Lamp ImageEK-302X Hires Lamp ImageEK-302X hires lamp image1.2 MBJPG, ZIP
Icon of EK-302X Hires Left Side ImageEK-302X Hires Left Side ImageEK-302X hires left side image581.3 KBJPG, ZIP
Icon of EK-302X Hires Rear ImageEK-302X Hires Rear ImageEK-302X hires rear image1.8 MBJPG, ZIP
Icon of EK-302X  Lens ChartEK-302X Lens ChartEK-302X Lens Chart69.5 KBPDF
Icon of EK-302X Owners Manual English Vol4EK-302X Owners Manual English Vol4EK-302X Owners Manual26.3 MBPDF
Icon of EK-302X Owners Manual French Vol4EK-302X Owners Manual French Vol4EK-302X Owners Manual26.5 MBPDF
Icon of EK-302X Owners Manual German Vol4EK-302X Owners Manual German Vol4EK-302X Owners Manual26.5 MBPDF
Icon of EK-302X Owners Manual Italian Vol4EK-302X Owners Manual Italian Vol4EK-302X Owners Manual26.5 MBPDF
Icon of EK-302X Owners Manual Spanish Vol4EK-302X Owners Manual Spanish Vol4EK-302X Owners Manual26.4 MBPDF
Icon of EK-302X Owners Manual Traditional Chinese Vol4EK-302X Owners Manual Traditional Chinese Vol4EK-302X Owners Manual29.8 MBPDF
Icon of EK-302X Quick Start Guide English 20160331EK-302X Quick Start Guide English 20160331EK-302X quick start guide English
11.6 MBPDF
Icon of EK-302X RS-232 CommandsEK-302X RS-232 CommandsEK-302X RS-232 Commands117.5 KBPDF
Icon of EK-302X SpecificationsEK-302X SpecificationsEK-302X Specifications102.0 KBPDF
