EK-501W
EK-501WL (no lens)

Key Features

  • 6,000 ANSI lumens bright with 80% uniformity and a 2500:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • Durable inorganic 3-panel LCD imaging engine with a high contrast ratio.
  • 10-bit color processing, for superior color reproduction.
  • Power zoom and focus lens. Optional wide-angle and telephoto lenses.
  • Vertical and Horizontal power lens shift and digital keystone correction.
  • Includes a full set of analog and digital computer and video inputs.
  • Built-in 10 Watt amplifier and speaker system. Closed Caption decoding.
  • Wired LAN connection for monitoring and control.
  • Centered lens with 1-button release. Side-accessed lamp, side-accessed filter.
  • Variable power management option. Optional local or remote keylock.

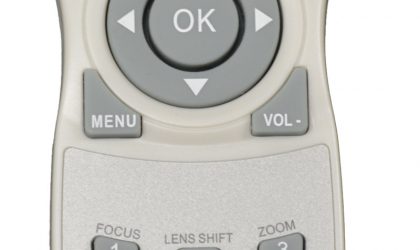

  • Wireless/wired remote control with laser pointer.
  • 3 years / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 10 ft (3 m) Detachable Power Cord, Wireless/Wired Remote Control (with 2 AA Batteries)

Included Accessories: Replacement Lamp, Wideangle, Midrange and Telephoto Lenses, ATA-Style Shipping Case with Wheel and Telescoping Handle, Wired Remote Cable (MiniStereo-MiniStereo), Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 6,000 lumens
Native Resolution WXGA (1200x800), 16:10
Max. Computer Input WUXGA
Max. Video Input 1080i/p
Contrast Ratio 2500:1
Panel Size 0.75 in (19 mm) Inorganic LCD Panels x 3
Lens Type Changeable - Power Zoom and Focus
Power Lens Shift (% of image size) U/D 70%; L/R 30%
Keystone Correction U/D 30º; L/R 15º
Inputs Image Signal Inputs:
1a: Analog Computer - Dsub15 x 1,
Digital Computer / Digital Video (w/HDCP) - DVI-D x 1,
1b: Digital Computer / Digital Video (w/HDCP & MHL) - HDMI x 1,
2: RGBHV / YCbCr - BNC x 5, Component Video - BNC x 3,
3a: Composite Video - BNC x 1,
3b: S-Video x 1
Audio Signal Inputs:
For Inputs 1 & 2 - Stereo: MiniStereo x 3
For Video & S-Video - RCA x 4
Other Input(s):
Wired Remote - MiniStereo x 1
Outputs Outputs:
Computer Monitor - Dsub15 x 1,
Audio Output - Variable, Stereo: MiniStereo x 1
Wired Remote - MiniStereo x 1
Sound System Amplifier Mono: 10 Watt;
Speaker 1.46 in (3.7 cm) x 1 (Mono);
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Estimated Lamp Life (Eco / Normal) 4,000 / 3,000 hours
Lamp Part # -
Fan Noise (Eco / Normal) 32 dB / 36 dB
Air Filter -
Maximum Pitch Up to 360º
Weight with lens 23.1 lb (10.5 kg)
Weight without lens 21.3 lb (9.7 kg)
Ceiling Mount Part # TBD
 NameDescriptionSizeType
Icon of EK-501W Cad DrawingEK-501W Cad DrawingEK-501W cad drawing (dxf)977.3 KBZIP, DXF
Icon of EK-501W Hires Beauty ImageEK-501W Hires Beauty ImageEK-501W hires beauty image4.3 MBPNG, ZIP
Icon of EK-501W Lens ChartEK-501W Lens ChartEK-501W Lens Chart70.6 KBPDF
Icon of EK-501W Owners Manual EnglishEK-501W Owners Manual EnglishEK-501W Owners Manual18.6 MBPDF
Icon of EK-501W Owners Manual French-160914EK-501W Owners Manual French-160914EK-501W Owners Manual18.8 MBPDF
Icon of EK-501W Owners Manual German-160914EK-501W Owners Manual German-160914EK-501W Owners Manual18.6 MBPDF
Icon of EK-501W Owners Manual Italian 160914EK-501W Owners Manual Italian 160914EK-501W Owners Manual18.6 MBPDF
Icon of EK-501W Owners Manual Spanish-160914EK-501W Owners Manual Spanish-160914EK-501W Owners Manual18.8 MBPDF
Icon of EK-501W Owners Manual Traditional ChineseEK-501W Owners Manual Traditional ChineseEK-501W Owners Manual22.2 MBPDF
Icon of EK-501W RS232 CommandsEK-501W RS232 CommandsEK-501W RS232 Commands106.2 KBPDF
Icon of EK-501W SpecificationsEK-501W SpecificationsEK-501W Specifications102.0 KBPDF
