EK-600U Conference Projector

Key Features

  • 6,000 ANSI lumens bright with 85% uniformity and a 10,000:1 contrast ratio.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HD BaseT, HDMI and Display Port Digital connectivity with HDCP compliance.
  • Convenient mid-range (1.8:1) manual zoom and focus lens.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 10 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control. Digital zoom: 1/4~ x16.
  • Horizontal and Vertical Keystone Correction.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year / 6000 hours (whichever occurs first) projector warranty.

Included Accessories: Quick Start Guide, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Component Video Cable (3RCA to Dsub15), S-Video Cable, Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)


Display Technology 1 chip DLP®
Brightness (ANSI) 6,000 lumens
Native Resolution 1920x1200 (16:10)
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 10,000:1 (High Contrast mode)
Imaging System 0.67" DMD™ DLP® chip x 1
Lens Type Attached - Manual Zoom and Focus
Keystone Correction Digital:V:+/- 30°(Auto) H: +/- 30° (Manual)
Inputs Image Signal Inputs:
1 - Dsub15 x 2,
Digital Video (w/HDCP & MHL) - HDMI x 2,
HDBaseT - RJ45 x 1,
Display Port x 1,
S-Video x 1,
Composite Video - RCA x 1
Audio Signal Inputs:
Computer Audio - Mini-Stereo x 2,
Microphone - MiniStereo x 1,
Video Audio - RCA x 2 (L/R)
Other Inputs:
Mouse / Firmware Update - USB Type B mini x 1,
Projector Control by LAN - RJ45 x 1,
RS232C Control - Dsub9 x 1
Outputs Outputs:
USB Power Out / USB Dongle - USB Type A x 1,
12V Trigger - MiniStereo x 1,
3D Sync - Mini DIN 3-Pin x 1
Computer - Dsub15 x 1,
Audio Output Variable, Stereo: MiniStereo x 1
Sound System Amplifier Stereo: 10 Watt; Speaker 1.4 in (3.7 cm) x 2 (Stereo)
Network Control Wired network control.
Wifi -
Warranty Projector - 3 year / 6000 hrs. (whichever occurs first)
Lamp Life (Eco / Normal) 4,000 / 3,000 hours
Lamp Part # -
Fan Noise (Eco / Normal) 32 dB / 35 dB
Air Filter -
Maximum Pitch Up-to 30° Up or Down
Weight 13.6 lb (6.2 kg)
Ceiling Mount Part # -
Icon of EK-600U Cad Drawing (pdf)EK-600U Cad Drawing (pdf)EK-600U cad drawing (pdf)19.7 MBPDF
Icon of EK-600U Color Data SheetEK-600U Color Data SheetEK-600U Color Data Sheet1.7 MBPDF
Icon of EK-600U Color SheetEK-600U Color SheetEK-600U Color Data Sheet1.0 MBPDF
Icon of EK-600U Hires Beauty1 ImageEK-600U Hires Beauty1 ImageEK-600U hires beauty1 image4.8 MBPNG, ZIP

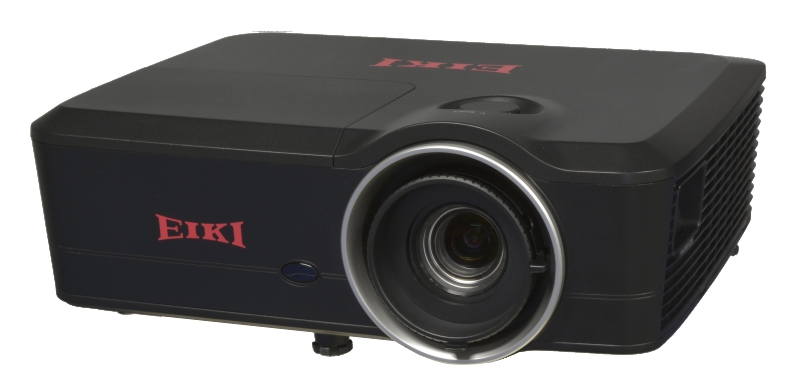

Icon of EK-600U Hires Beauty2 ImageEK-600U Hires Beauty2 ImageEK-600U hires beauty2 image3.6 MBPNG, ZIP
Icon of EK-600U Hires Bottom ImageEK-600U Hires Bottom ImageEK-600U hires bottom image7.6 MBPNG, ZIP
Icon of EK-600U Hires Front ImageEK-600U Hires Front ImageEK-600U hires front image4.9 MBPNG, ZIP
Icon of EK-600U Hires Left Side ImageEK-600U Hires Left Side ImageEK-600U hires left side image3.5 MBPNG, ZIP
Icon of EK-600U Hires Rear ImageEK-600U Hires Rear ImageEK-600U hires rear image4.0 MBPNG, ZIP

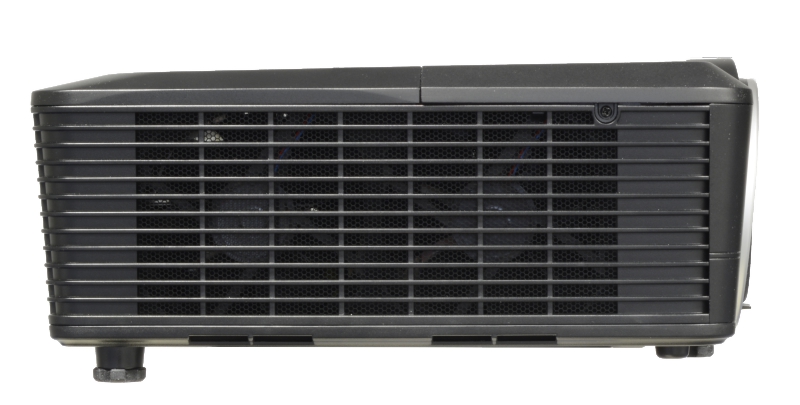

Icon of EK-600U Hires Right Side ImageEK-600U Hires Right Side ImageEK-600U hires right side image3.0 MBPNG, ZIP
Icon of EK-600U Hires Top ImageEK-600U Hires Top ImageEK-600U hires top image7.5 MBPNG, ZIP
Icon of EK-600U Lens ChartEK-600U Lens ChartEK-600U Lens Chart95.0 KBPDF
Icon of EK-600U Owners Manual EnglishEK-600U Owners Manual EnglishEK-600U owners manual English9.3 MBPDF
Icon of EK-600U Owners Manual FrenchEK-600U Owners Manual FrenchEK-600U owners manual French8.4 MBPDF
Icon of EK-600U Owners Manual GermanEK-600U Owners Manual GermanEK-600U owners manual German8.3 MBPDF
Icon of EK-600U Owners Manual ItalianEK-600U Owners Manual ItalianEK-600U owners manual Italian8.3 MBPDF
Icon of EK-600U Owners Manual JapaneseEK-600U Owners Manual JapaneseEK-600U owners manual Japanese8.6 MBPDF
Icon of EK-600U Owners Manual KoreanEK-600U Owners Manual KoreanEK-600U owners manual Korean8.4 MBPDF
Icon of EK-600U Owners Manual RussianEK-600U Owners Manual RussianEK-600U owners manual Russian8.5 MBPDF
Icon of EK-600U Owners Manual Simplified ChineseEK-600U Owners Manual Simplified ChineseEK-600U owners manual Simplified Chinese8.6 MBPDF
Icon of EK-600U Owners Manual SpanishEK-600U Owners Manual SpanishEK-600U owners manual Spanish8.4 MBPDF
Icon of EK-600U Quick Start GuideEK-600U Quick Start GuideEK-600U quick start guide6.7 MBPDF
Icon of EK-600U Remote Control CodesEK-600U Remote Control CodesEK-600U remote control codes495.0 KBPDF
Icon of EK-600U SpecificationsEK-600U SpecificationsEK-600U Specifications102.4 KBPDF
