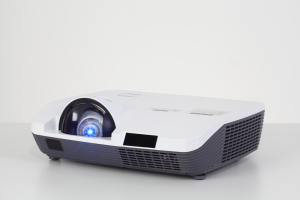

LC-WAU200 HD Widescreen Projector


  • 3,000 ANSI lumens bright with 80% uniformity and a 3000:1 contrast ratio.
  • Native WXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • HDMI Digital connectivity with HDCP compliance.
  • Short throw, with manul focus.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Accepts composite, component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Built-in 7 Watt sound system. Closed Caption decoding (NTSC).
  • Wired network control.
  • Side-accessed air filter & top accessed lamp for ease of maintenance.
  • Color board modes. Custom warm-up screen.
  • Auto input selection. Built-in Test Patterns.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 year projector warranty.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AAA Batteries).

Optional Accessories: Replacement Lamp, Ceiling Mount, Ceiling Post and Plate, Soft Carry Bag.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Color Data Sheet)

Display Technology 3 LCD
Brightness (ANSI) 3,000 ANSI Lumens
Native Resolution WXGA (1280x800)
Max. Computer Input UXGA/WUXGA
Max. Video Input 1080p
Contrast Ratio 3000:1
Panel Size 0.59 in (15 mm) inorganic
Lens Type (Throw:Width) 1.57-3.28 ft (0.48-1.0 m)
Fixed Image Offset Fixed Image Offset, Ratio (Top/Bottom) 7.25:-1
Keystone Correction Vertical - Digital: up-to 15° Up or Down

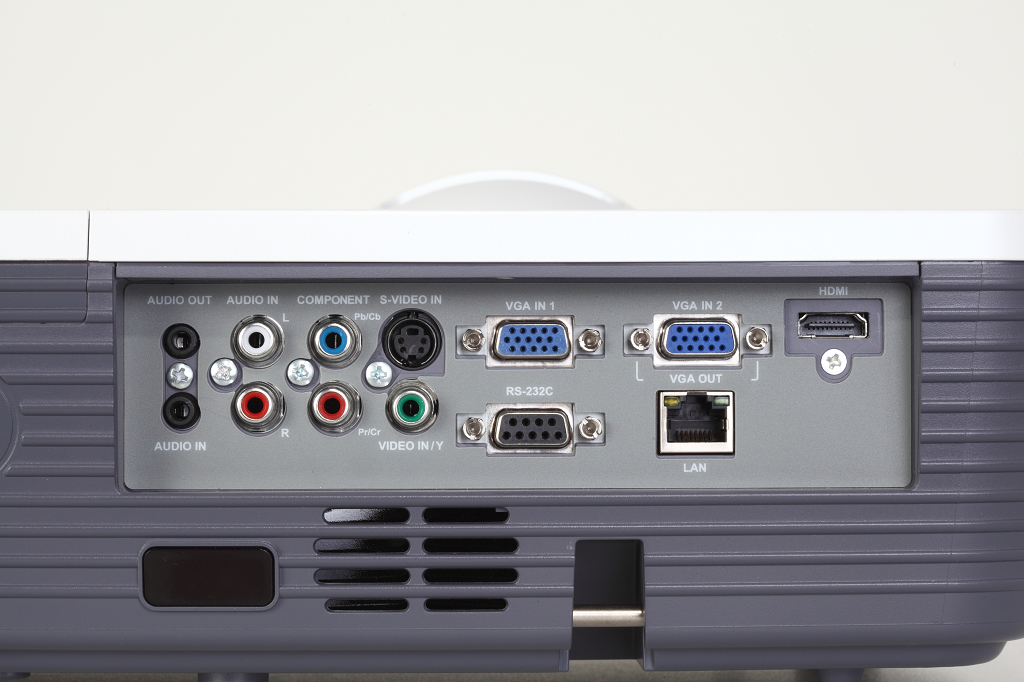

Image Signal Inputs Computer 1 - Dsub15 x 1, Computer 2 - Dsub15 x 1 (Switchable Monitor Output), HDMI (w/HDCP) x 1, S-Video x 1, Component Video RCA x 3, Composite Video RCA x 1
Audio Inputs Computer Audio - Mini-Stereo x 1, Video Audio - RCA x 2 (L/R)
Outputs Computer Monitor (Computer 2) - Dsub15 x 1, Audio Output Variable, Stereo: MiniStereo x 1
Sound System Amplifier: Mono 7 Watt;
Built-in speaker: 1.4 in (3.7 cm) x 1
Network Control Wired LAN for projector control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life 3,000 / 5,000 hours
Lamp Part # 23040047 - 230 Watts UHP
Fan Noise as low as 34 dBA
Air Filter # ---
Maximum Pitch Up-to 30° Up or Down
Weight 8.8 lb (4.0 kg)
Ceiling Mount Part # ---
Closed Caption Yes (NTSC)
Icon of LC-WAU200 Cad DrawingLC-WAU200 Cad DrawingLC-WAU200 cad drawing975.6 KBPDF
Icon of LC-WAU200 Color Data SheetLC-WAU200 Color Data SheetLC-WAU200 Color Data Sheet805.4 KBPDF
Icon of LC-WAU200 Beauty1LC-WAU200 Beauty1LC-WAU200 hi-res image3.7 MBJPG, ZIP
Icon of LC-WAU200 Beauty2LC-WAU200 Beauty2LC-WAU200 hi-res image3.8 MBJPG, ZIP
Icon of LC-WAU200 BottomLC-WAU200 BottomLC-WAU200 hi-res image4.6 MBJPG, ZIP
Icon of LC-WAU200 ConnectionsLC-WAU200 ConnectionsLC-WAU200 hi-res image5.0 MBJPG, ZIP
Icon of LC-WAU200 ControlsLC-WAU200 ControlsLC-WAU200 hi-res image4.2 MBJPG, ZIP
Icon of LC-WAU200 FilterLC-WAU200 FilterLC-WAU200 hi-res image3.6 MBJPG, ZIP
Icon of LC-WAU200 FrontLC-WAU200 FrontLC-WAU200 hi-res image3.5 MBJPG, ZIP
Icon of LC-WAU200 LampLC-WAU200 LampLC-WAU200 hi-res image3.7 MBJPG, ZIP
Icon of LC-WAU200 RearLC-WAU200 RearLC-WAU200 hi-res image3.6 MBJPG, ZIP
Icon of LC-WAU200 RemoteLC-WAU200 RemoteLC-WAU200 hi-res image4.3 MBJPG, ZIP
Icon of LC-WAU200 Side1LC-WAU200 Side1LC-WAU200 hi-res image3.5 MBJPG, ZIP
Icon of LC-WAU200 Side2LC-WAU200 Side2LC-WAU200 hi-res image3.5 MBJPG, ZIP
Icon of LC-WAU200 Lens ChartLC-WAU200 Lens ChartLC-WAU200 lens chart7.2 KBPDF
Icon of LC-WAU200 Owners ManualLC-WAU200 Owners ManualLC-WAU200 Owner's Manual12.5 MBPDF
Icon of LC-WAU200 Quickstart GuideLC-WAU200 Quickstart GuideLC-WAU200 Quick Start Guide14.2 MBPDF
Icon of LC-WAU200 RS-232 Basic Serial CommandsLC-WAU200 RS-232 Basic Serial CommandsLC-WAU200 RS-232 Basic Serial Commands591.2 KBPDF
Icon of LC-WAU200 SpecificationsLC-WAU200 SpecificationsLC-WAU200 Specifications142.2 KBPDF
