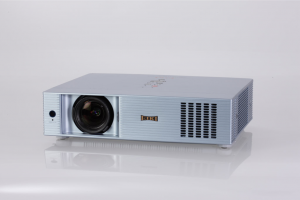

LC-XB43N LCD Projector

Outstanding Features

High brightness and contrast, with up to 3000 hours est. lamp life. Two computer inputs plus one computer monitor output. Project straight up or down: projector supports pitch through 360°. UXGA & WXGA compatible. Interlace to Progressive conversion. Turn ON and Show! (Countdown can be optionally skipped.) Turn OFF and Go! (A/C cord can be removed immediately.) Wired LAN (RJ45) for network monitoring and control. Energy Saving: reduced power consumption in Standby Eco mode.

Key Features

  • 4,500 ANSI Lumens bright, with 85% uniformity and a 1000:1 contrast ratio.
  • Weighs less than 8 lb! Compact and lightweight design.
  • 3 panel LCD imaging for rich, color saturated computer and video projection.
  • Native XGA resolution. Compatible with input resolutions up-to UXGA & WUXGA.
  • Compatible with Normal and Widescreen video inputs up-to 1080p.
  • Smart data compression / expansion, and video scaling.
  • Convenient midrange (1.6:1) manual zoom and focus lens.
  • Two Dsub15 computer inputs. Switchable monitor output.
  • Quiet operation: fan noise as low as 30 dBA.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Corner Keystone Correction. Closed Caption decoding (NTSC).
  • Accepts Composite, Component, and S-Video in all major standards.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Variable Power Management option. Optional local or remote keylock.
  • 3 year/6000 hrs (whichever comes first) projector warranty.

Included Accessories: Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord. VGA-type Computer Input Cable (Dsub15 ~ Dsub15). Wireless Remote Control & Batteries (AAA x 2). Network Software on CD-ROM. USB Thumb Drive. Soft Carry Bag.

Optional Accessories: Replacement Lamp. Component Video Input Cable (Dsub15~3-RCA). Ceiling Mount. Ceiling Post and Plate.

Specifications Overview

Display Technology 3LCD
Brightness (ANSI) 4,500 lumens
Native Resolution XGA (1024x768)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 1000:1
Panel Size 0.8" (inorganic)
Lens Type (Throw:Width) 1.15-1.85:1
Power Lens Shift Up 40%
Keystone Correction U/D 40°
Inputs Dsub15 x 1 and DVI-I x 1; RCA x 1 or S-Video x 1; MiniStereo x 1; RCA (audio) x 2;
Outputs Dsub15 x 1; MiniStereo x 1
Sound System 1 Watt; 1.1" dia. speaker x 1
Network Control Wired / wireless LAN with content delivery
Warranty 3 years/6000 hrs (whichever comes first)
Lamp Life Up to 3,000 hours
Lamp Part # 610 333 9740
Fan Noise As low as 31 dBa
Air Filter Standard
Maximum Pitch Up to 360°
Weight 7.7 lb (3.6 kg)
Ceiling Mount Part # 0173-4305
 NameDescriptionSizeType
Icon of LC-XB43N Cad DrawingLC-XB43N Cad Drawing0.1 MB
Icon of LC-XB43N Cad Drawing DxfLC-XB43N Cad Drawing Dxf0.1 MB
Icon of LC-XB43N Color Data SheetLC-XB43N Color Data SheetLC-XB43N Color Data Sheet0.3 MBPDF
Icon of LC-XB43N Hi-res Image Beauty1LC-XB43N Hi-res Image Beauty1LC-XB43N Hi-res Image Beauty10.6 MBJPG, ZIP
Icon of LC-XB43N Hi-res Image Beauty2LC-XB43N Hi-res Image Beauty2LC-XB43N Hi-res Image Beauty20.4 MBJPG, ZIP
Icon of LC-XB43N Hi-res Image ConnectionsLC-XB43N Hi-res Image ConnectionsLC-XB43N Hi-res Image Connections4.1 MBJPG, ZIP
Icon of LC-XB43N Hi-res Image ControlsLC-XB43N Hi-res Image ControlsLC-XB43N Hi-res Image Controls5.1 MBJPG, ZIP
Icon of LC-XB43N Hi-res Image RemoteLC-XB43N Hi-res Image RemoteLC-XB43N Hi-res Image Remote4.1 MBJPG, ZIP
Icon of LC-XB43N Lens ChartLC-XB43N Lens ChartLC-XB43N Lens Chart13 KBPDF
Icon of LC-XB43N Owners ManualLC-XB43N Owners ManualLC-XB43N Owners Manual9.4 MBPDF
Icon of Pjnet Manager Software V1-20Pjnet Manager Software V1-20Pjnet Manager Software V1-20 for models LC-WB100, LC-XD25U, LC-XB43, LC-XB43N6.2 MBZIP
Icon of LC-XB43N Remote Control CodesLC-XB43N Remote Control CodesLC-XB43N Remote Control Codes25 KBPDF
Icon of LC-XB43N RS-232 Control SoftwareLC-XB43N RS-232 Control Software2.9 MB
Icon of LC-XB43N RS-232 Basic Serial CommandsLC-XB43N RS-232 Basic Serial CommandsLC-XB43N RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XB43N RS-232 Extended Serial CommandsLC-XB43N RS-232 Extended Serial CommandsLC-XB43N RS-232 Extended Serial Commands0.5 MBPDF
Icon of LC-XB43N SpecificationsLC-XB43N SpecificationsLC-XB43N Specifications0.4 MBPDF
