LC-XBL26W LCD Projector
Outstanding Features
Low-cost, yet feature-rich, the LC-XBL26W has been designed for affordable performance with classrooms in mind. Get 2,600 lumens of 3LCD imaging at XGA resolution. Or, for less demanding rooms, consider the 2,200 lumen LC-XBL21W.
Key Features
- 2,600 ANSI lumens bright with 85% uniformity and a 500:1 contrast ratio.
- Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
- Supports analog video input in all color standards up-to 1080i.
- 3 panel LCD imaging delivers a rich, color-saturated picture.
- 8-bit color processing yields a 16.7 million color palette.
- Convenient midrange (1.2:1) manual zoom and focus lens.
- Fixed image offset. Automatic vertical digital keystone correction.
- Two Dsub15 computer inputs. Switchable monitor output.
- Built-in 1 Watt amplifier and speaker system. Closed Caption decoding.
- Built-in wired LAN connection for projector monitoring and control.
- Power management and Eco mode help prolong lamp life.
- Wireless remote control. Digital zoom 50-400%.
- Kensington® security slot. Local or remote keylock functions.
- 3 year/6000 hrs. (whichever comes first) projector warranty.
Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Power Cord, Lens Cover, S-Video Input Cable (Dsub15 to S-Video), VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries).
Optional Accessories: Soft Carry Bag, Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), Ceiling Mount, Ceiling Post & Plate.
Specifications Overview
Display Technology | LCD Panels x 3 |
Brightness (ANSI) | up-to 2,600 ANSI lumens |
Native Resolution | XGA (1024x768) |
Max. Computer Input | WUXGA |
Max. Video Input | 1080i |
Contrast Ratio | 500:1 |
Panel Size | 0.55'' (14 mm) |
Lens Type (Throw:Width) | 1.62-1.92:1 |
Vertical Lens Shift | Fixed: 36% Up |
Keystone Correction | Digital: up-to 30° Up or Down |
Inputs | Video: Dsub15 x 2; S-Video x 1; RCA x 1;Audio: MiniStereo x 1; Stereo RCA x 2; |
Outputs | Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1; |
Sound System | 1 Watt; 1.1'' (2.8 cm) speaker x 1 |
Network Control | Wired LAN monitor & control |
Warranty | 3 year/6000 hrs. (whichever comes first) projector warranty. |
Lamp Life | Up to 6,000 hours |
Lamp Part # | 610 349 7518 |
Fan Noise | As low as 29 dBa |
Air Filter | Replaceable, up-to 5,500 Hours |
Maximum Pitch | up-to 30° Up or Down |
Weight | 5.7 lb (2.6 kg) |
Ceiling Mount Part # | 0173-4341 |
Name | Description | Size | Type | |
---|---|---|---|---|
LC-XBL26W Color Data Sheet | LC-XBL26W Color Data Sheet | 1.0 MB | ||
LC-XBL26W Lens Chart | LC-XBL26W Lens Chart | 13 KB | ||
LC-XBL26W Remote Control Codes | LC-XBL26W Remote Control Codes | 24 KB | ||
LC-XBL26W RS-232 Basic Serial Commands | LC-XBL26W RS-232 Basic Serial Commands | 0.2 MB | ||
LC-XBL26W RS-232 Extended Serial Commands | LC-XBL26W RS-232 Extended Serial Commands | 0.5 MB | ||
LC-XBL26W Specifications | LC-XBL26W Specifications | 40 KB |

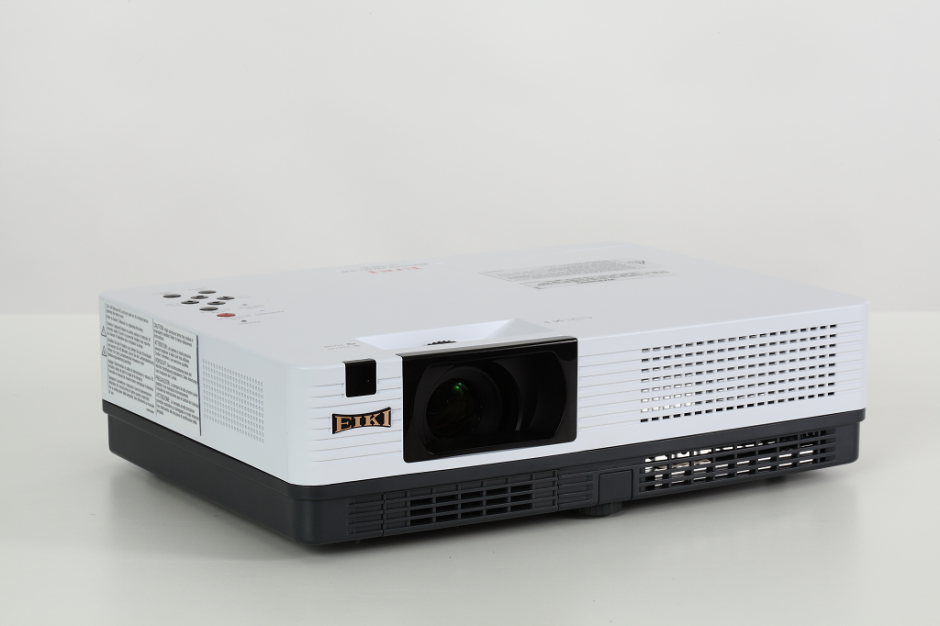

- LC XBL26W hi res image beauty1

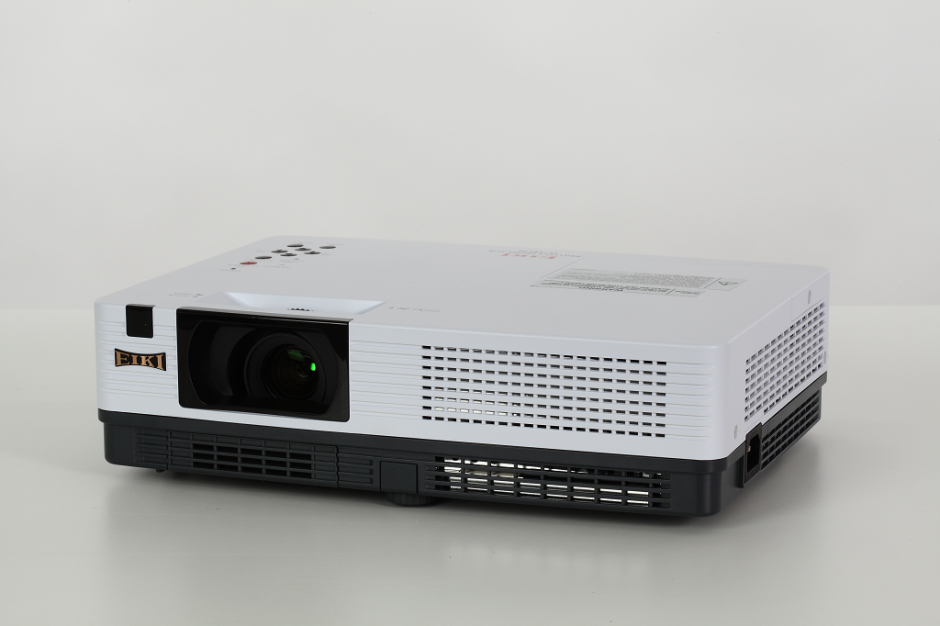

- LC XBL26W hi res image beauty2

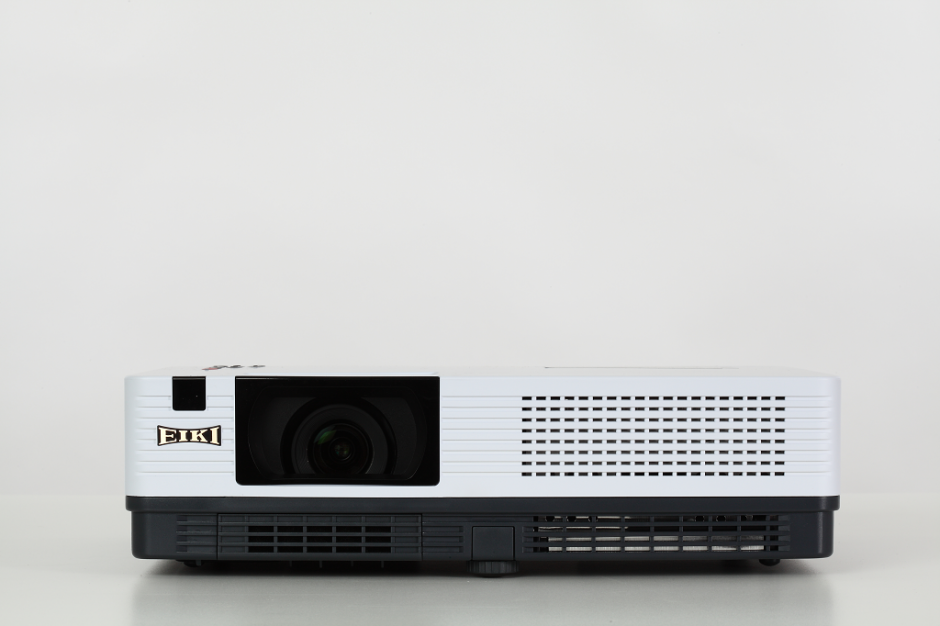

- LC XBL26W hi res image front

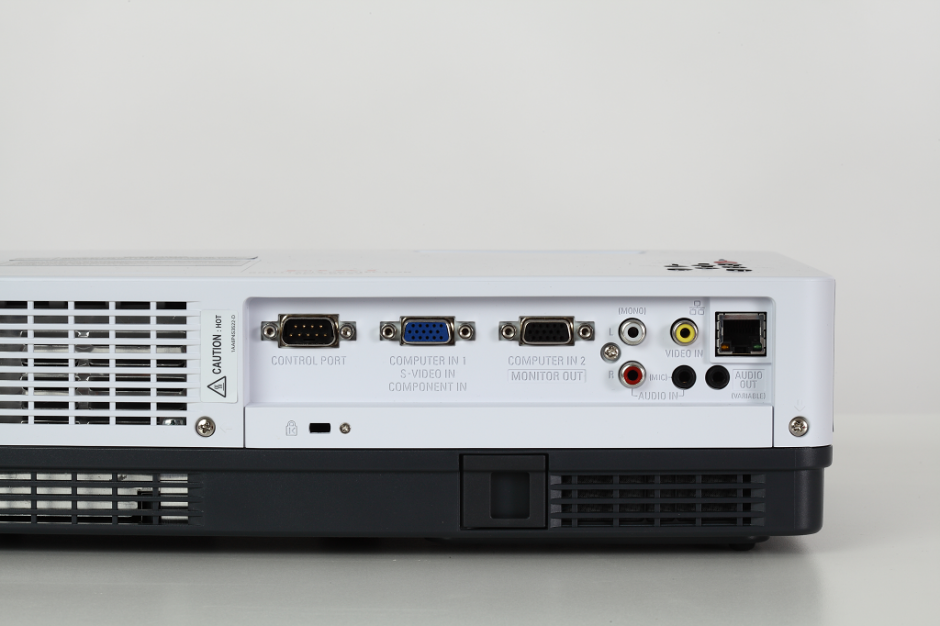

- LC XBL26W hi res image connections

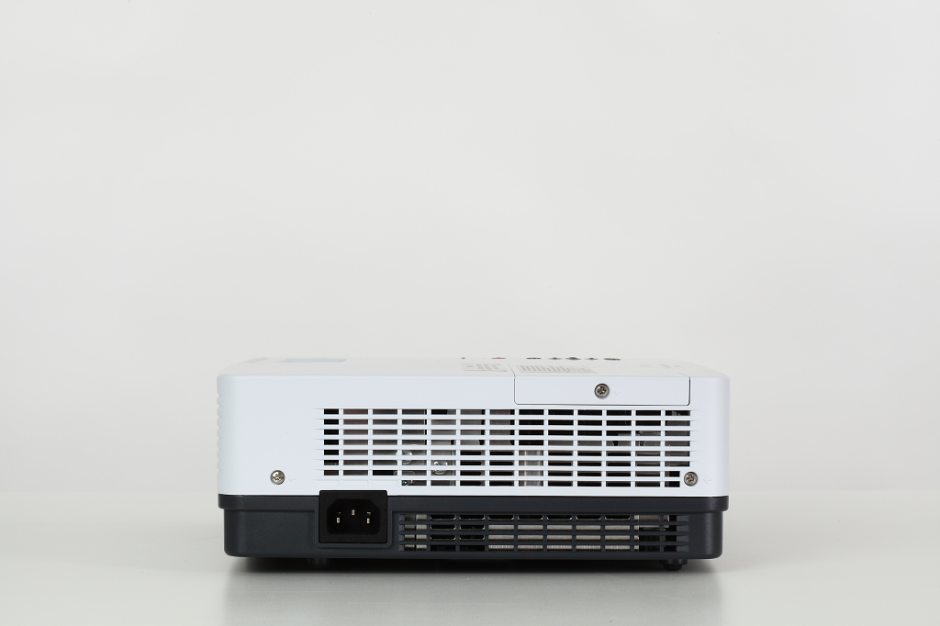

- LC XBL26W hi res image side2

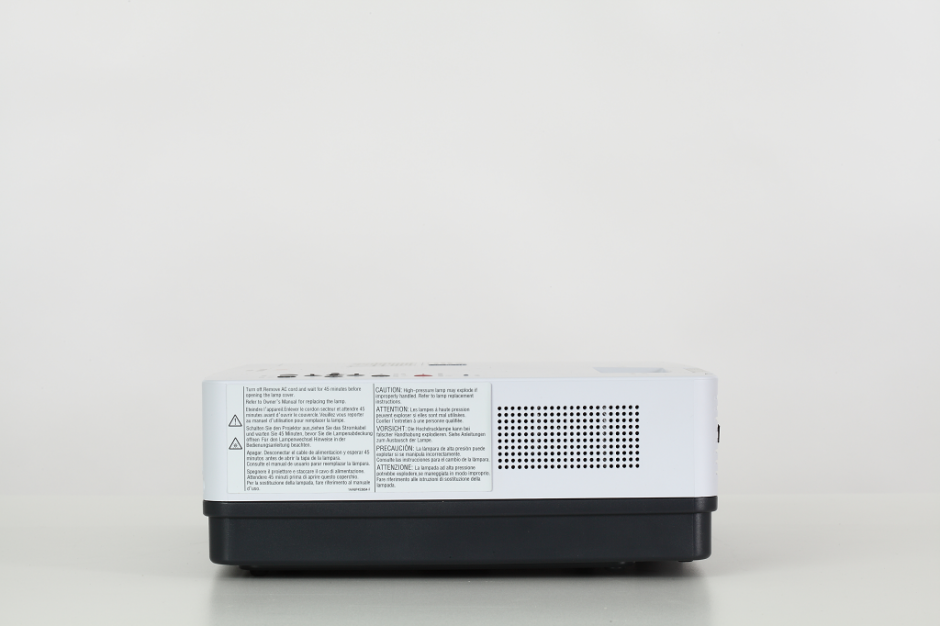

- LC XBL26W hi res image side1

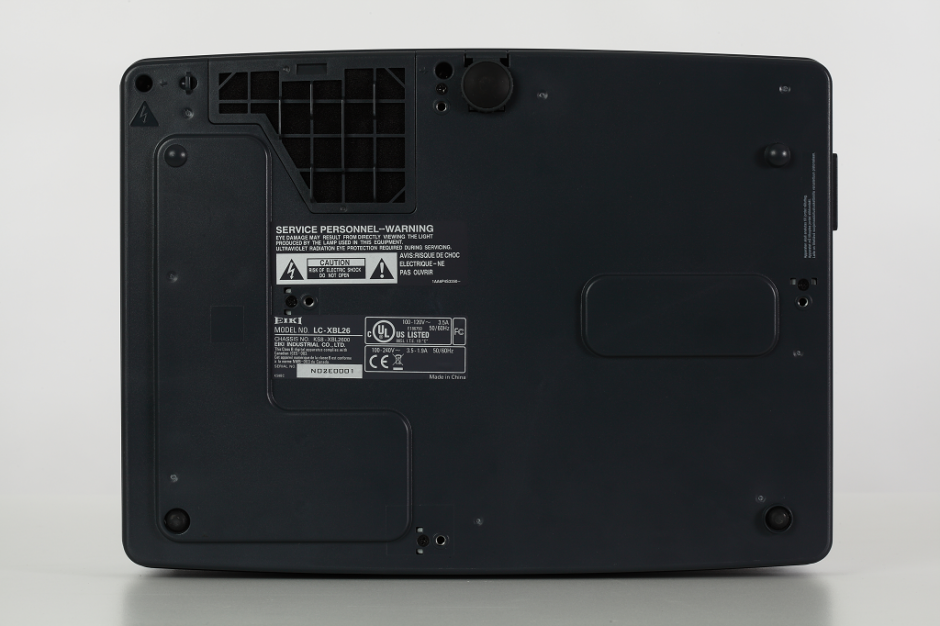

- LC XBL26W hi res image bottom

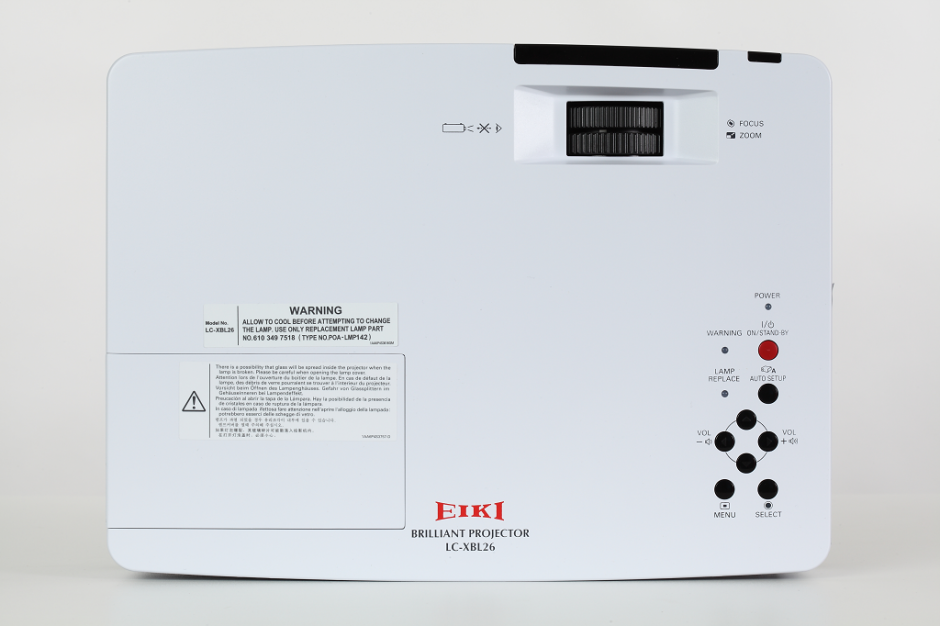

- LC XBL26W hi res image control panel

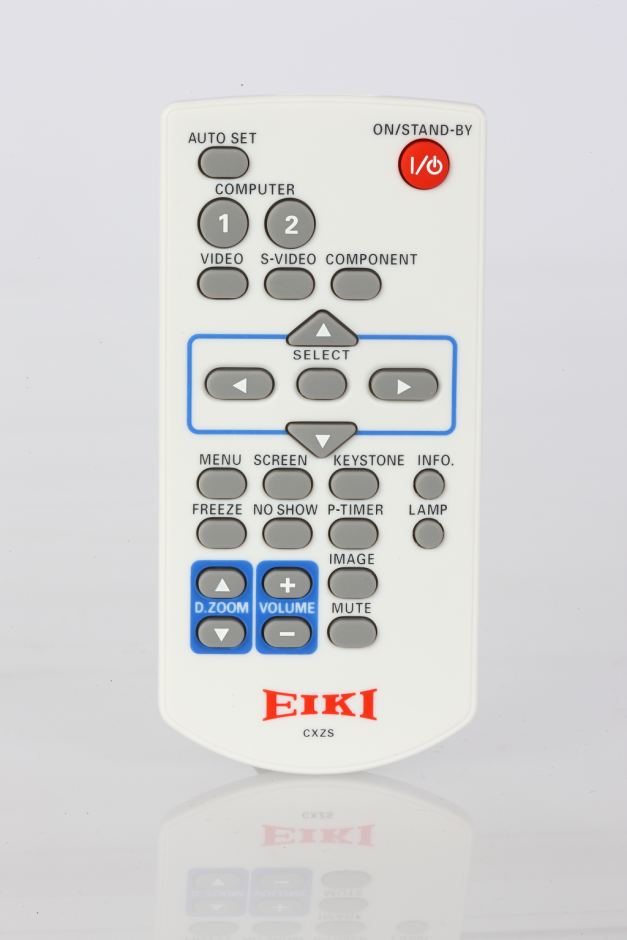

- LC XBL26W hi res image remote

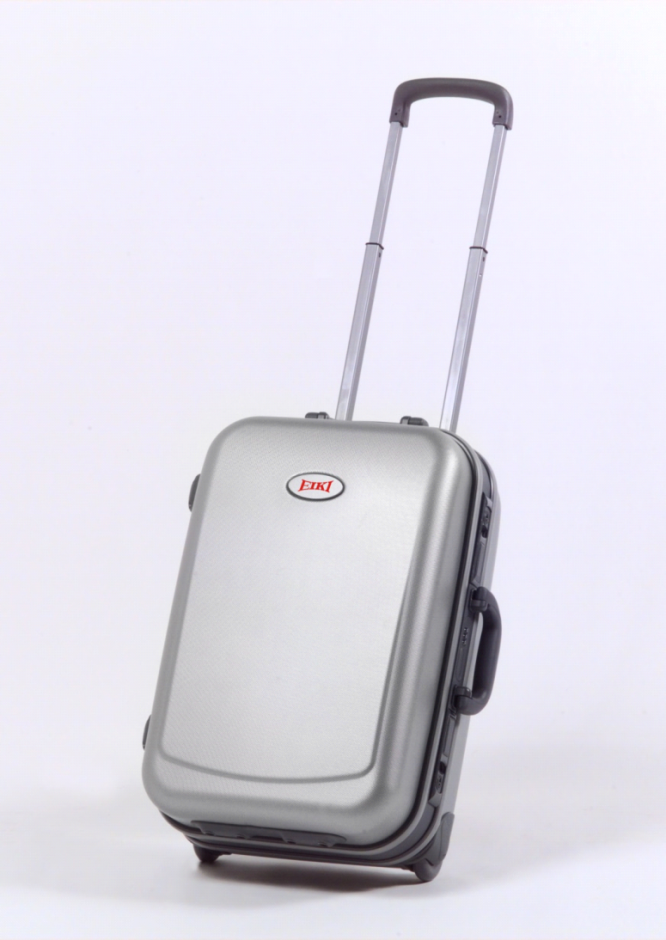

- LC XBL26W hi res image case
