LC-XBM21 LCD Projector

Outstanding Features

The cost effective LC-XBM21 projector offers reduced maintenance and enhanced picture and sound. Here's 2,200 lumens of 3LCD imaging at XGA resolution. For more demanding rooms, consider the 2,600 lumen LC-XBM26, or the 3,000 lumen LC-XBM31 (which also provides slightly shorter throw ratios).

Key Features

  • 2,200 ANSI lumens bright with 85% uniformity and a 2000:1 contrast ratio.
  • Native XGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog video input in all color standards up-to 1080i.
  • 3 panel LCD imaging delivers a rich, color-saturated picture.
  • 8-bit color processing yields a 16.7 million color palette.
  • Convenient midrange (1.2:1) manual zoom and focus lens.
  • Fixed image offset. Automatic vertical digital keystone correction.
  • Two Dsub15 computer inputs. Switchable monitor output.
  • 10 W sound system. Mic input for PA. Closed Caption decoding (NTSC).
  • Built-in wired LAN connection for projector monitoring and control.
  • Power management and Eco mode help prolong lamp life.

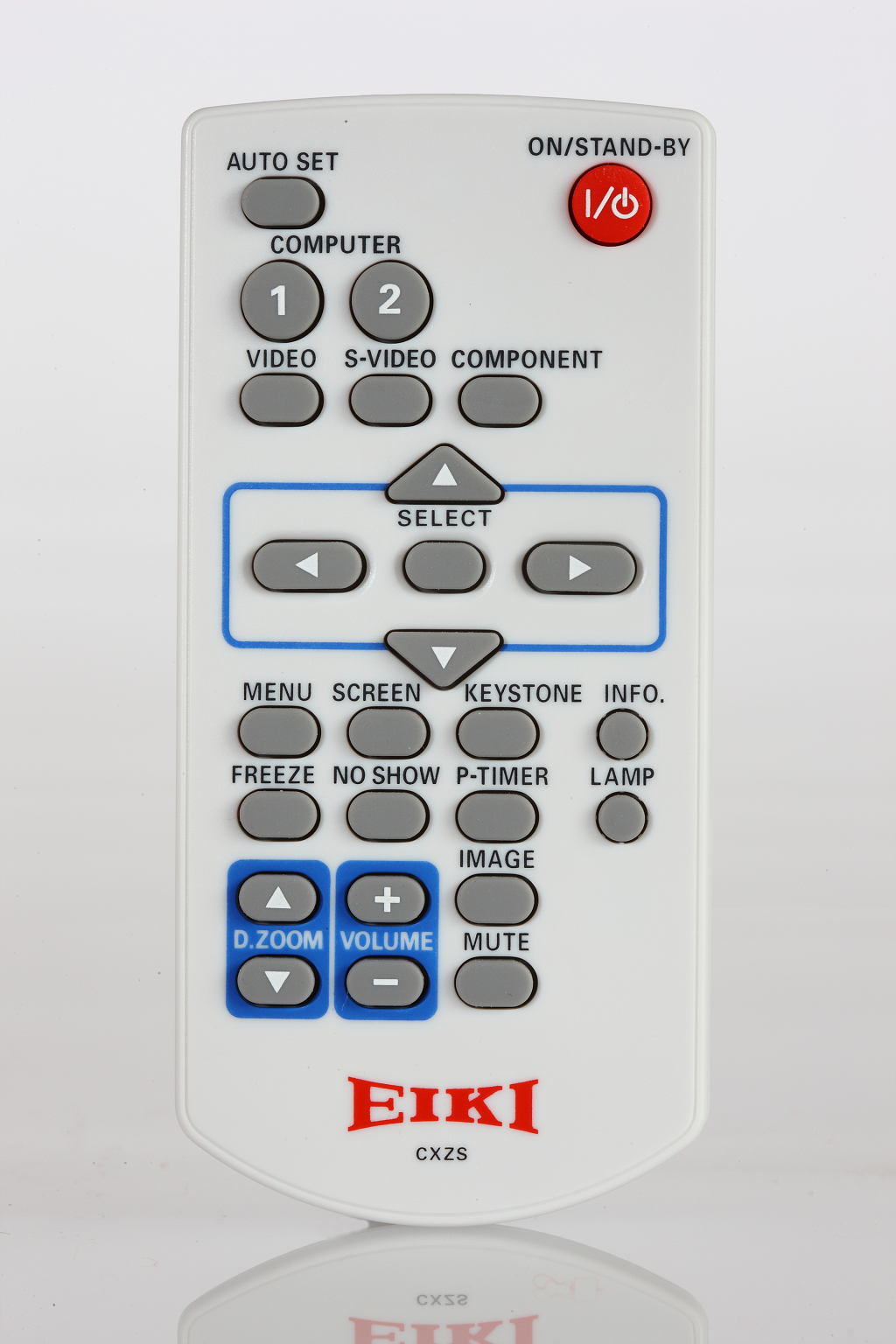

  • Wireless remote control. Digital zoom 50-400%.
  • Color board modes. Custom warm-up screen option. Auto input selection.
  • Kensington® security slot. Local or remote keylock functions.
  • Warranties. Projector: 3 years. Air Filter: 2 years. Lamp: 1 year.

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, Network Software on CD-ROM, Power Cord, VGA Computer Input Cable (Dsub15 to Dsub15), Wireless Remote Control (with 2 AAA Batteries), Lens Cap, Filter Cover (for use with ceiling mount - inverse installation), S-Video Input Cable (Dsub15 to S-Video)

Optional Accessories: Replacement Lamp, Replacement Air Filter, Component Video Input Adapter Cable (Dsub15 to 3RCA), RS232 Control Cable (Dsub9 to Dsub9), Soft Carry Bag, Ceiling Mount, Post & Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)
()

Display Technology LCD Panels x 3
Brightness (ANSI) up-to 2,200 ANSI lumens
Native Resolution XGA (1024x768)
Max. Computer Input WUXGA
Max. Video Input 1080i
Contrast Ratio 2000:1
Panel Size 0.55'' (14mm)
Lens Type (Throw:Width) 1.62-1.92:1
Power Lens Shift Fixed: 36% Up
Keystone Correction Digital: up-to 30° Up or Down

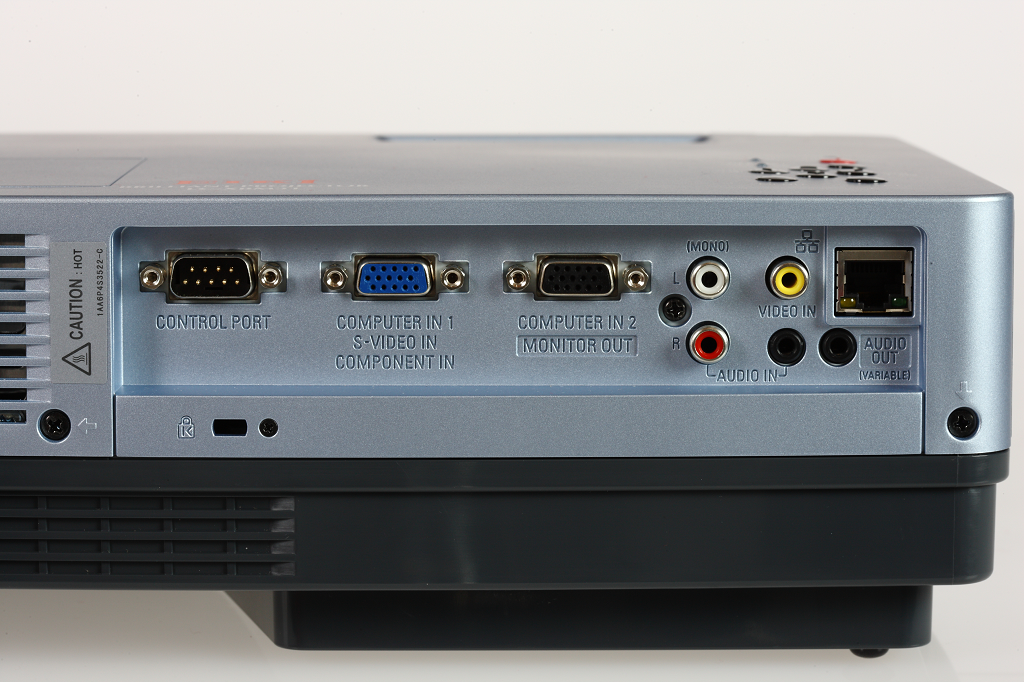

Inputs Video: Dsub15 x 2; S-Video x 1; RCA x 1;
Audio: MiniStereo x 1; Stereo RCA x 2;
Outputs Video: Dsub15 x 1 (switchable); Audio: variable, Ministereo x 1;
Sound System 10 Watt; 1.6'' (4cm) speaker x 1
Network Control Wired LAN monitor & control
Warranty 3 years
Lamp Life Up to 6,000 hours per lamp
Lamp Part # 610 349 7518
Fan Noise As low as 29 dBa
Air Filter Replaceable, up-to 5,500 Hours
Maximum Pitch up-to 30° Up or Down
Weight 6.4 lb (2.9 kg)
Ceiling Mount Part # 0173-4353
 NameDescriptionSizeType
Icon of LC-XBM21 Cad DrawingLC-XBM21 Cad Drawing0.1 MB
Icon of LC-XBM21 Cad Drawing DxfLC-XBM21 Cad Drawing Dxf0.3 MB
Icon of LC-XBM21 Color Data SheetLC-XBM21 Color Data SheetLC-XBM21 Color Data Sheet0.8 MBPDF
Icon of LC-XBM21 Lens ChartLC-XBM21 Lens ChartLC-XBM21 Lens Chart13 KBPDF
Icon of LC-XBM21 Owners ManualLC-XBM21 Owners ManualLC-XBM21 Owners Manual6.6 MBPDF
Icon of LC-XBM21 Remote Control CodesLC-XBM21 Remote Control CodesLC-XBM21 Remote Control Codes29 KBPDF
Icon of LC-XBM21 RS-232 Control SoftwareLC-XBM21 RS-232 Control Software1.4 MB
Icon of LC-XBM21 RS-232 Basic Serial CommandsLC-XBM21 RS-232 Basic Serial CommandsLC-XBM21 RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XBM21 RS-232 Extended Serial CommandsLC-XBM21 RS-232 Extended Serial CommandsLC-XBM21 RS-232 Extended Serial Commands0.4 MBPDF
Icon of LC-XBM21 SpecificationsLC-XBM21 SpecificationsLC-XBM21 Specifications0.3 MBPDF
