EIP-UHS100 HD Widescreen DLP® Projector

Key Features

  • 8,000 ANSI lumens bright with 80% uniformity and a 2400:1 contrast ratio.
  • HDMI and 3G HD-SDI Digital connectivity.
  • Native WUXGA resolution. Compatible with inputs up-to UXGA and WUXGA.
  • Supports analog and digital video input in all color standards up-to 1080p.
  • User-changeable color wheel to optimize brightness or color.
  • Displays both 4:3 and 16:9 aspect ratios. Supports most HDTV resolutions.
  • Wired network monitoring and control.
  • Rear-accessed lamp for ease of maintenance.
  • Optional lens cover a range of 0.75 to 8.56:1 Throw ratios.
  • Built-in Edge Blending and Image Warping.
  • Lens Memory Features allow up to 10 saved settings.
  • Built-in Picture in Picture and Picture by Picture.
  • Security bar. Kensington® MicroSaver® security slot. PIN lock.
  • 3 years / 6000 hours projector warranty (whichever occurs first).

Included Accessories: Quick Start Guide, Owner's Manual on CD-ROM, VGA Computer Input Cable (Dsub15 to Dsub15), 6.0 ft (1.8 m) Detachable Power Cord, Remote Control (with 2 AA Batteries), Wired Remote Cable (MiniStereo to MiniStereo), Screw for Lens Lock, Color Wheel. Optional Accessories: Replacement Lamp, Component Video Input Cable (Dsub15 to 3RCA), ATA-Style Case with Wheels and Telescoping Handle, Ceiling Mount, Ceiling Post and Plate.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
()
()



Display Technology 1 chip DLP®
Brightness (ANSI) 8,000 lumens
Native Resolution WUXGA (1920 x 1200), 16:10
Max. Computer Input WUXGA
Max. Video Input 1080p
Contrast Ratio 2400:1
Panel Size 0.67" DMD™ DLP® chip
Lens Type (Throw:Width) 1.73-2.27:1
Power Lens Shift --
Vertical Keystone Correction Horizontal Keystone Correction Digital: Up-to 20º up or down; Digital: Up-to 35º left or right
Inputs Dsub15 x 1; DVI-D (w/ HDCP) x 1; HDMI® x 1; BNC x 5;  BNC x 1; DC12V x 1
Outputs 3G HD-SDI
Sound System -
Network Control Wired LAN monitor & control
Warranty 3 year/6000 hrs. (whichever comes first) projector warranty.
Lamp Life up-to 2,500 hours
Lamp Part # --
Fan Noise (Normal / Eco) 43 / 39 dBa
Air Filter Cartridge Filter (35,000 hours)
Maximum Pitch up-to 15° Up or Down
Weight 52.9 lb (24 kg)
Ceiling Mount Part # --
 NameDescriptionSizeType
Icon of EIP-UHS100 CAD DrawingEIP-UHS100 CAD DrawingEIP-UHS100 CAD Drawing183.3 KBPDF
Icon of EIP-UHS100 Cad Drawing DxfEIP-UHS100 Cad Drawing DxfEIP-UHS100 cad drawing dxf4.8 MBDXF
Icon of EIP-UHS100 Color Data SheetEIP-UHS100 Color Data SheetEIP-UHS100 Color Data Sheet190.1 KBPDF
Icon of EIP-UHS100 Lens ChartEIP-UHS100 Lens ChartEIP-UHS100 Lens Chart74.9 KBPDF
Icon of EIP-UHS100 Owners ManualEIP-UHS100 Owners ManualEIP-UHS100 Owners Manual19.0 MBPDF
Icon of EIP-UHS100 RS-232 Basic Serial Commands V100EIP-UHS100 RS-232 Basic Serial Commands V100EIP-UHS100 RS-232 Basic Serial Commands v100425.0 KBPDF
Icon of EIP-UHS100 SpecificationsEIP-UHS100 SpecificationsEIP-UHS100 Specifications108.3 KBPDF

Related Products

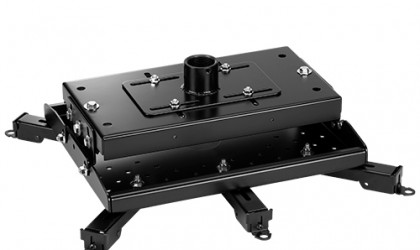

0173-5032 Ceiling Mount
