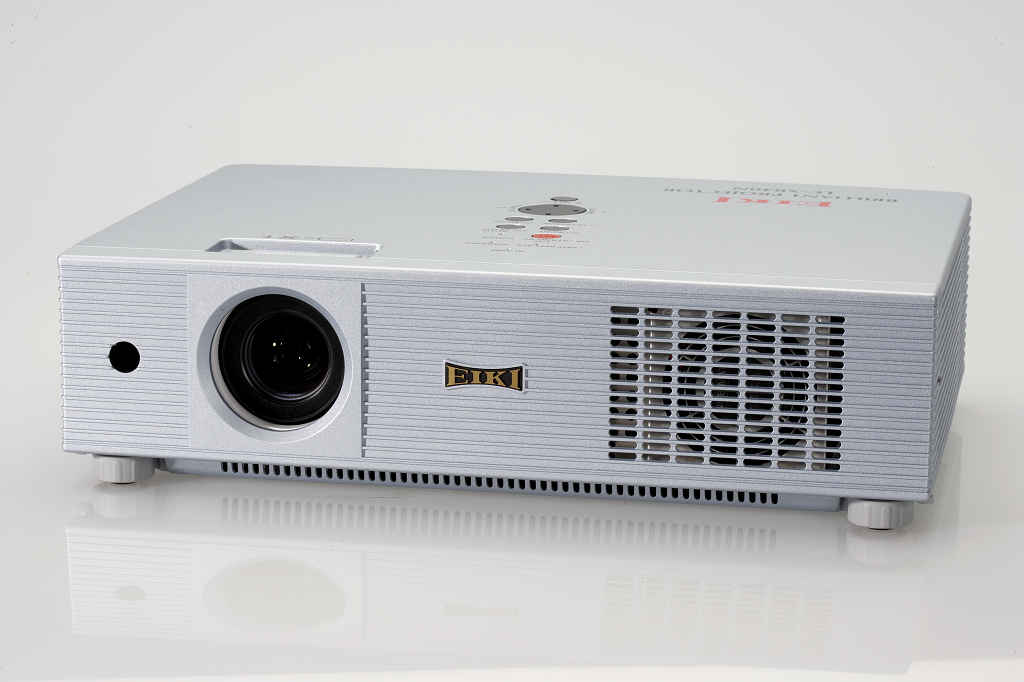

LC-XB40N LCD Projector

Outstanding Features:
Wired network projector control and content delivery (PC only). WiFi wireless network projector control and content delivery (PC only). Computerless slideshow using optional USB memory adapter. (PC only software). Built-in security alarm system for protection from tampering and theft.
High brightness and contrast. Two VGA inputs, one monitor output. Capable of 360° pitch. Integrated lens cover. UXGA & WXGA compatible. Interlace to Progressive conversion. Turn ON and Show! Turn OFF and Go!

Key Features

  • 4000 ANSI Lumens, 85% uniformity, and 500:1 contrast ratio.
  • Weighs less than 8 lbs! Compact, low-profile design!
  • 3 panel LCD imaging delivers a rich, color saturated picture.
  • XGA resolution. WXGA, UXGA ~ VGA and MAC compatible.
  • Quiet operation: fan noise as low as 29 dBA.
  • Smart data compression / expansion, and video scaling.
  • Convenient mid-range 1.2:1 manual zoom and focus lens.
  • Preset image offset. Vertical digital keystone correction.
  • Two computer inputs, plus one VGA computer monitor output.
  • DVI-I input supports analog & digital data, plus digital video w/HDCP
  • Accepts Composite, S, and Component Video in all major standards.
  • Displays both 4:3 and 16:9 formats. Supports most HDTV resolutions.
  • Converts Interlace to Progressive scan. 3-2 (and 2-2) Pulldown support.
  • Variable Power Management option. Optional local or remote keylock.
  • Slideshow Page Up/Down on remote control. 16X digital zoom.
  • Custom warm-up screen option. Factory defaults reset.
  • Wireless/wired remote with mouse control and laser pointer.
  • 3 Year* Projector Warranty!

Included Accessories: Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord. PC Application Software and Manual on CD ROM. VGA type Computer Input Cable (HD15 ~ HD15). Wireless/wired Remote Control with Mouse Control & Laser Pointer & Batteries (AA x 2). USB Wireless Lan Adapter. Soft Carry Bag.

Optional Accessories: Replacement Lamp. Component Video Input Cable (HD15~3-RCA). Scart Video Input Cable (HD15~Scart). MAC Adapter. MAC Monitor Cable. DB9~Mini Din-8 cable for RS-232 control. Luggage-Style ("wheelie") Carrying Case with Wheels,Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Extension Cable for Serial Cable. 256 MB USB Memory Computerless Slideshow Adapter. EZ-250 Local Control.

Specifications Overview

(Right click a link and choose "Save ..." to download a file)
(Download a detailed black & white pdf specification sheet)

Display Technology 3LCD
Brightness (ANSI) 4000 ANSI Lumens
Native Resolution 1024x768 (XGA)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 500:1
Panel Size 0.8"
Lens Type (Throw:Width) 1.64~2.00:1
Anti Keystone Preset Image Offset, Ratio (Top:Bottom) 9:1
Keystone Correction Digital: up to 40° up or down

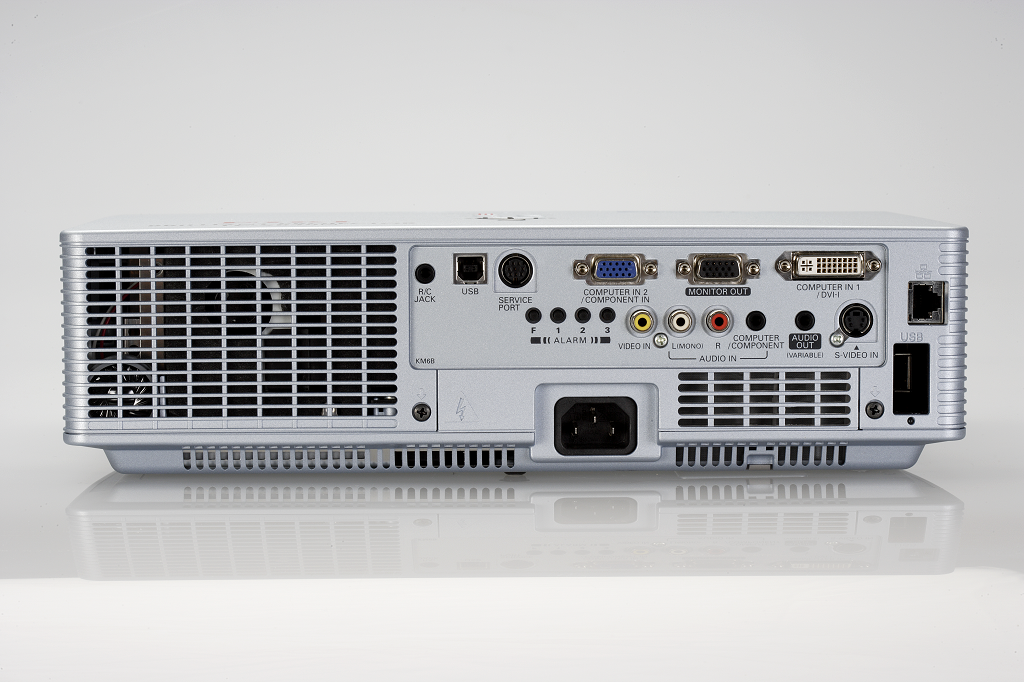

Inputs HD15 x 1, DVI-I x 1, RCA x 1, S-Video x 1;
MiniStereo x 1, RCA x 2 audio
Outputs HD15 x 1, MiniStereo x 1
Sound System 1 Watt; speaker: 1.1 in. (2.8 cm.) x 1
Network Control Wired LAN network projector control and content delivery.
WiFi wireless network projector control and content delivery.
Warranty 3 years
Lamp Life 2,500 hours
Lamp Part # 610 331 6345
Fan Noise as low as 29 dBA
Air Filter Standard
Maximum Pitch anywhere up to 360° off the horizontal axis
Weight 7.5 lb. (3.5 kg.)
Ceiling Mount Part # 0173-4305
LC-XB40N Cad Drawing90.7 KB
LC-XB40N Color Data Sheet783.6 KB
LC-XB40N Hi-res Image BackLC-XB40N Hi-res Image Back17.6 MBZIP, TIF

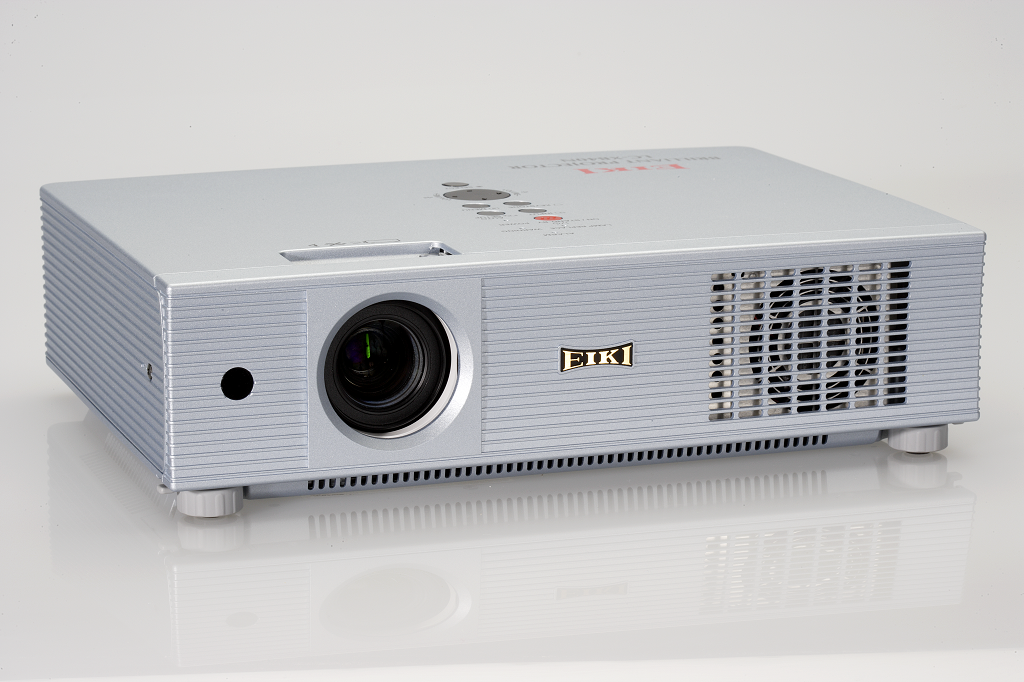

LC-XB40N Hi-res Image Beauty1LC-XB40N Hi-res Image Beauty117.1 MBZIP, TIF
LC-XB40N Hi-res Image Beauty2LC-XB40N Hi-res Image Beauty217.9 MBZIP, TIF

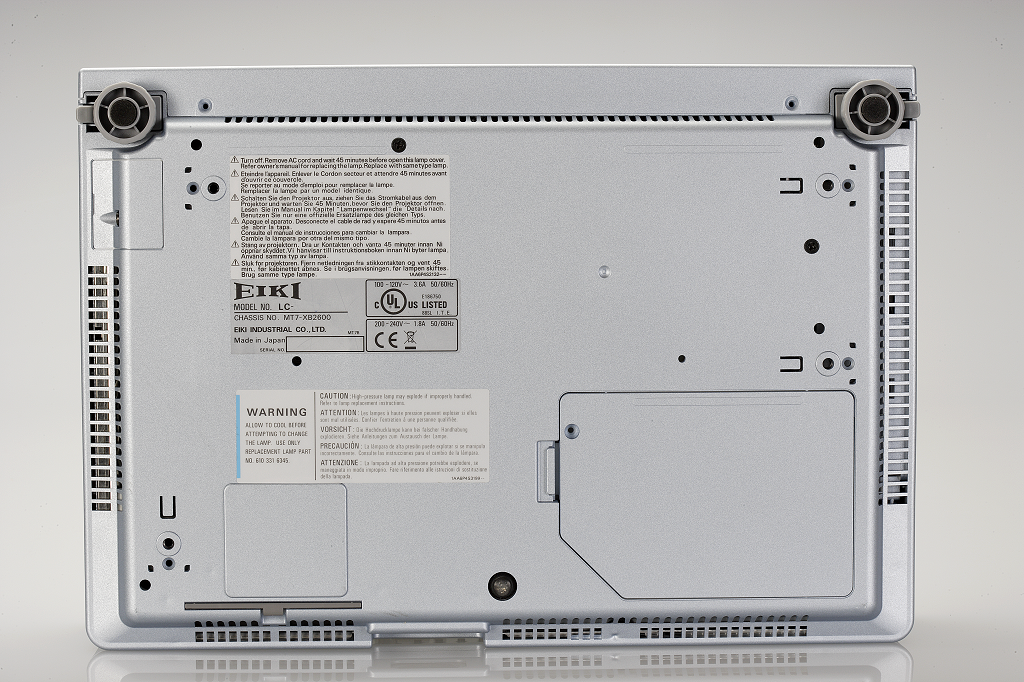

LC-XB40N Hi-res Image BottomLC-XB40N Hi-res Image Bottom26.0 MBZIP, TIF

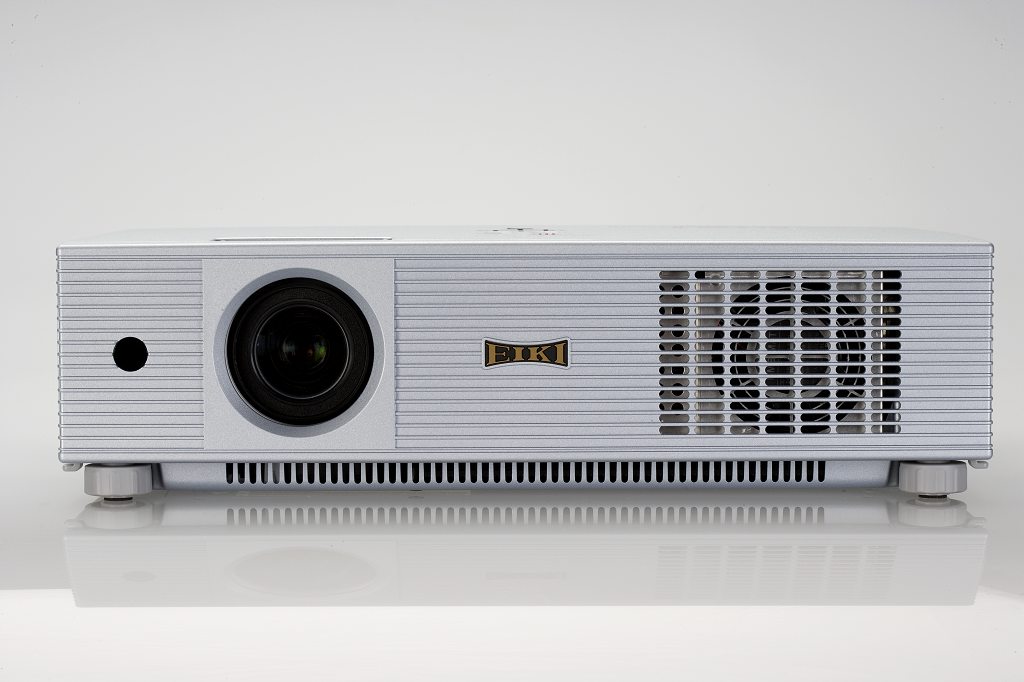

LC-XB40N Hi-res Image FrontLC-XB40N Hi-res Image Front17.5 MBZIP, TIF

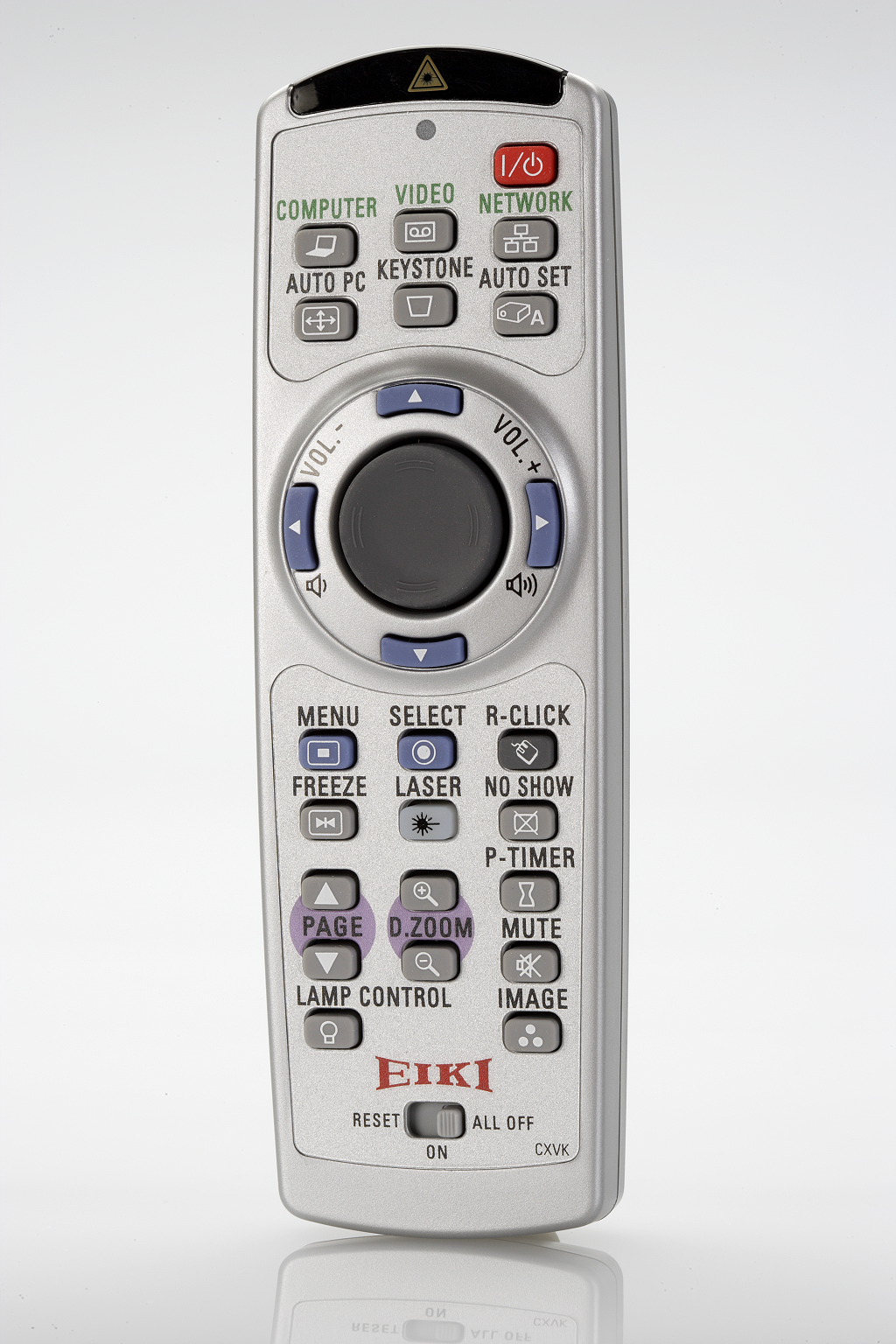

LC-XB40N Hi-res Image RemoteLC-XB40N Hi-res Image Remote18.8 MBZIP, TIF

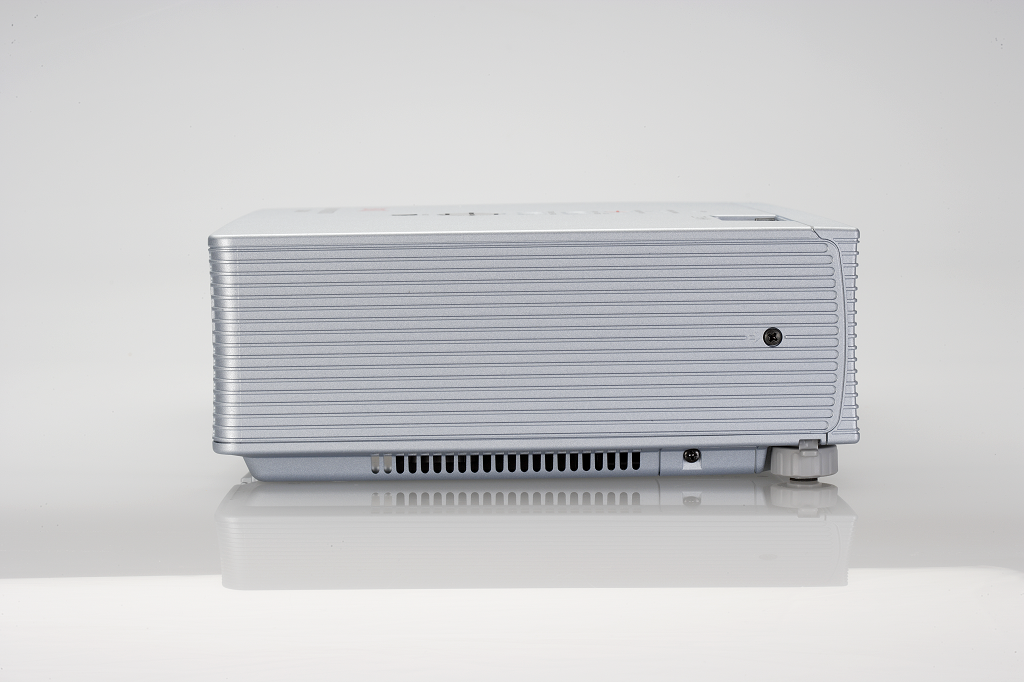

LC-XB40N Hi-res Image Side1LC-XB40N Hi-res Image Side116.6 MBZIP, TIF

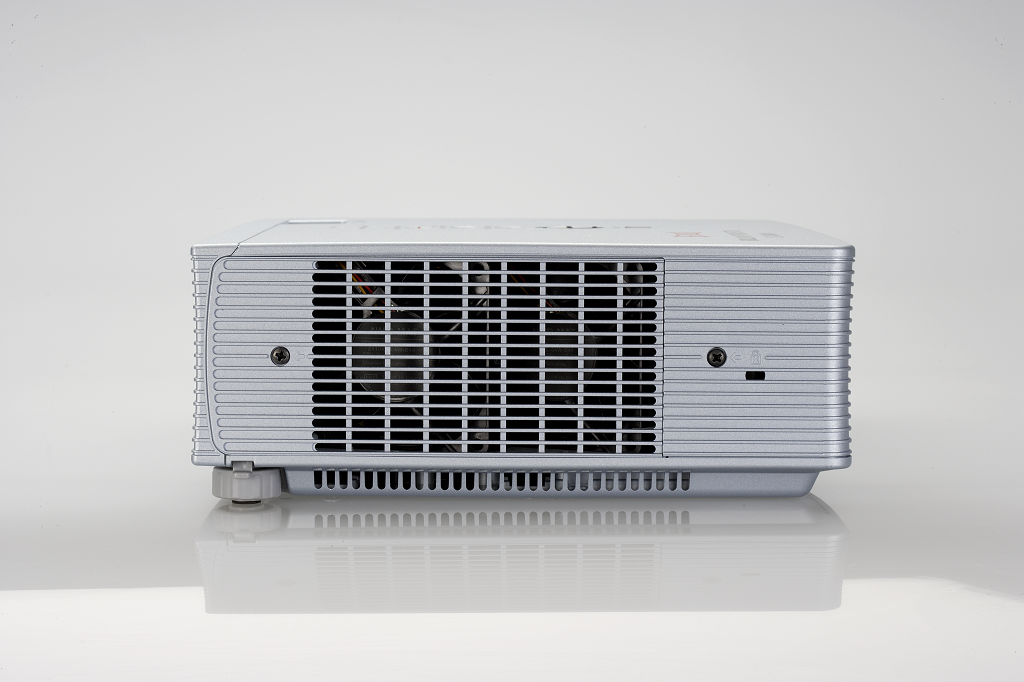

LC-XB40N Hi-res Image Side2LC-XB40N Hi-res Image Side216.5 MBZIP, TIF

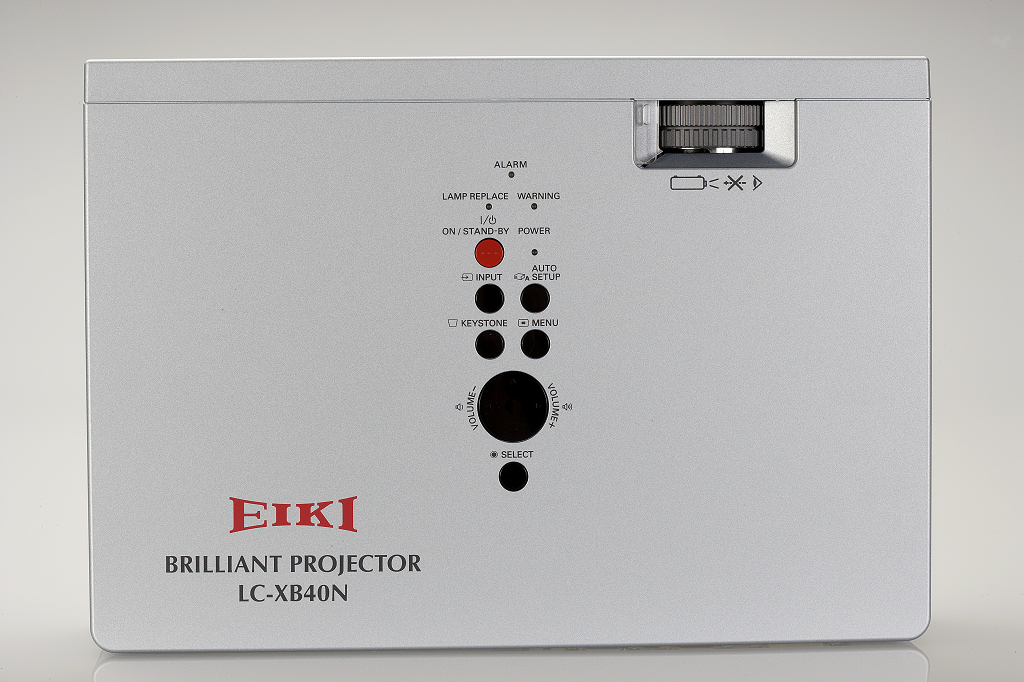

LC-XB40N Hi-res Image TopLC-XB40N Hi-res Image Top25.7 MBZIP, TIF
LC-XB40N Network SoftwareLC-XB40N Network Software41.4 MB
LC-XB40N Network ManualLC-XB40N Network Manual2.4 MBPDF
LC-XB40N Owners ManualLC-XB40N Owners Manual2.8 MBPDF
LC-XB40N Remote Control CodesLC-XB40N Remote Control Codes68.2 KBPDF
LC-XB40N RS-232 Control SoftwareLC-XB40N RS-232 Control Software1.4 MB
LC-XB40N RS-232 Basic Serial CommandsLC-XB40N RS-232 Basic Serial Commands180.3 KBPDF
LC-XB40N RS-232 Extended Serial CommandsLC-XB40N RS-232 Extended Serial Commands313.6 KBPDF
LC-XB40N SpecificationsLC-XB40N Specifications32.9 KBPDF
