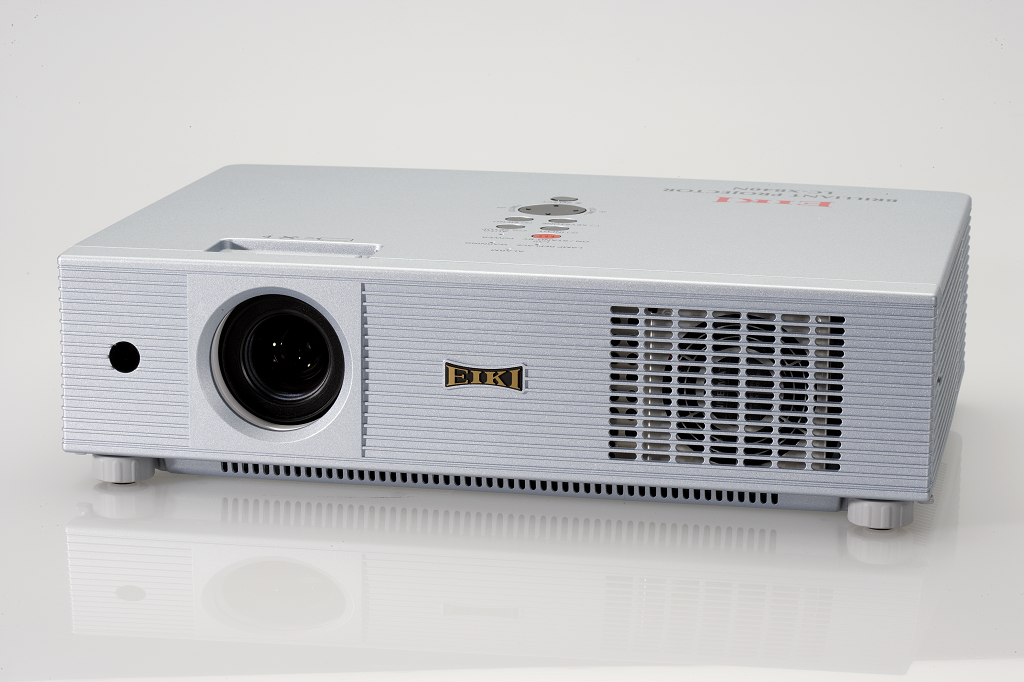

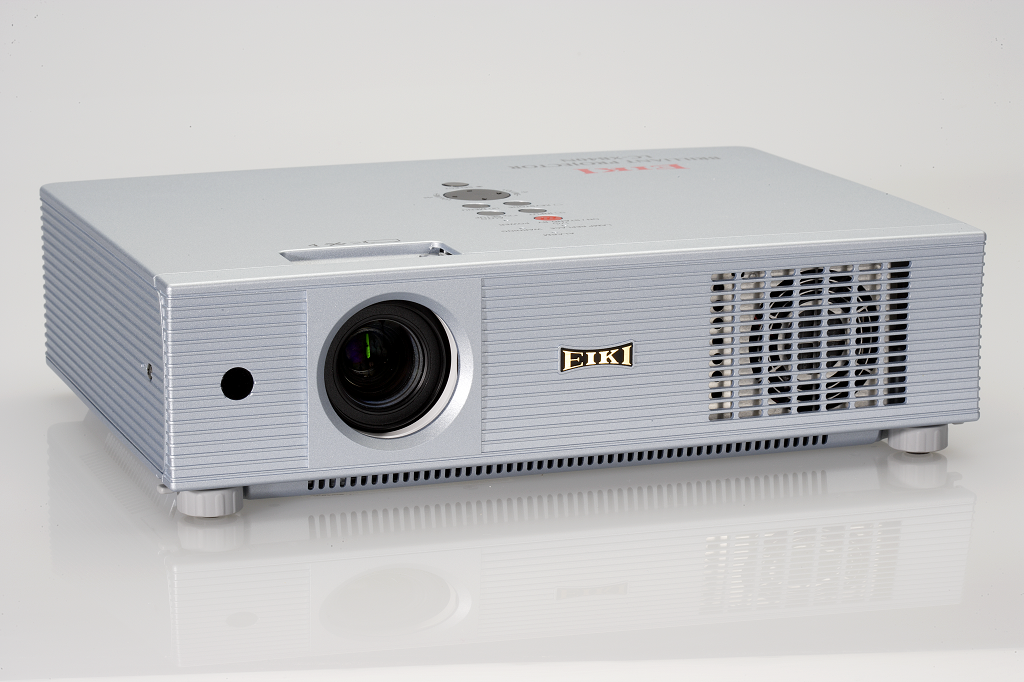

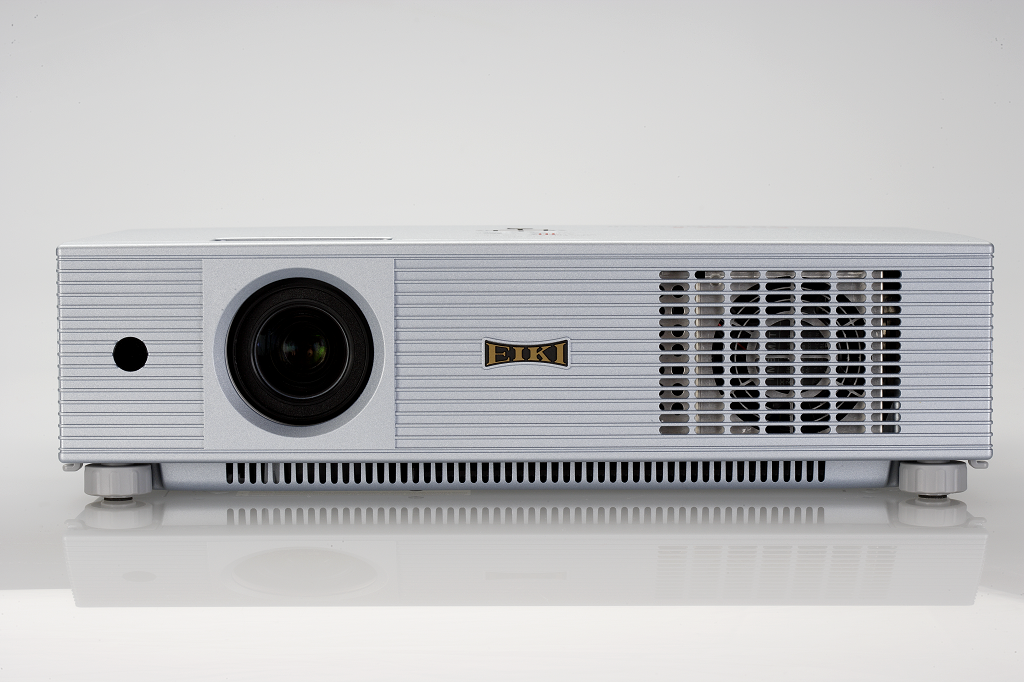

LC-XB40 LCD Projector

Outstanding Features:
High brightness and contrast. Two VGA inputs plus one VGA monitor output. Project straight up or down: projector supports pitch through 360°. Integrated lens cover can’t be misplaced. UXGA & WXGA compatible. Interlace to Progressive conversion. Turn ON and Show! (Countdown can be optionally skipped.) Turn OFF and Go! (A/C cord can be removed immediately after OFF).

Key Features

  • 4000 ANSI Lumens, 85% uniformity, and 500:1 contrast ratio.
  • Weighs less than 8 lbs! Compact, low-profile design!
  • 3 panel LCD imaging delivers a rich, color saturated picture.
  • XGA resolution. WXGA, UXGA ~ VGA and MAC compatible.
  • Quiet operation: fan noise as low as 29 dBA in ECO mode.
  • Smart data compression / expansion, and video scaling.
  • Convenient mid-range 1.2:1 manual zoom and focus lens.
  • Two VGA computer inputs, plus one VGA computer monitor output.
  • Preset image offset. Vertical digital keystone correction.
  • Accepts Composite, S, and Component Video in all major standards.
  • Displays both 4:3 and 16:9 formats. Supports most HDTV resolutions.
  • Converts Interlace to Progressive scan. 3-2 (and 2-2) Pulldown support.
  • Variable Power Management option. Optional local or remote keylock.
  • Custom warm-up screen image option. Factory defaults reset.

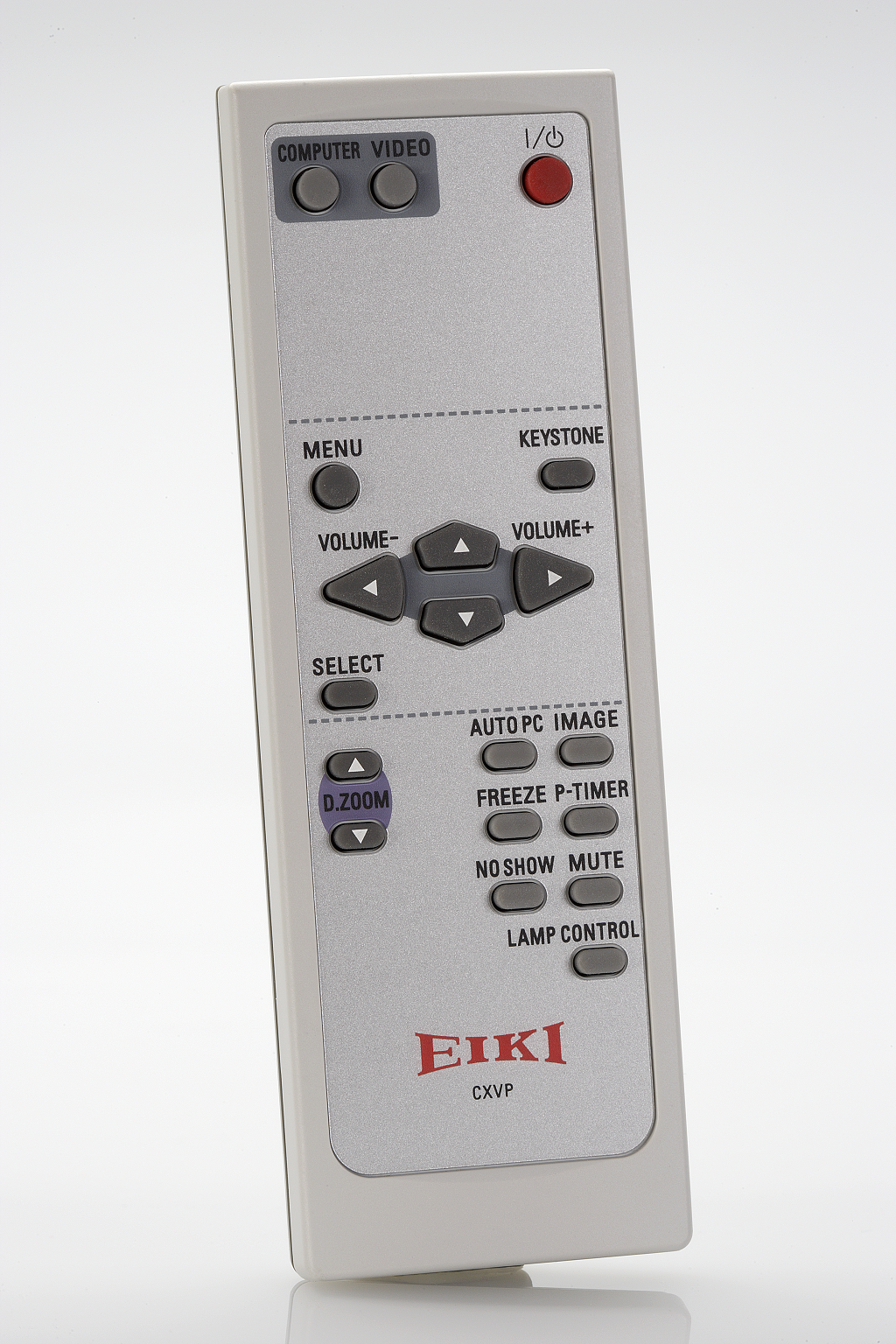

  • Wireless remote control. 16X digital zoom. Auto input search.
  • 3 Year* Projector Warranty!

Included Accessories: Quick Start Guide. Owner’s Manual on CD-ROM. AC Power Cord. VGA-type Computer Input Cable (HD15 ~ HD15). Wireless Remote Control & Batteries (AA x 2).

Optional Accessories: Soft Carry Bag. Replacement Lamp. VGA-type Computer Input Cable (HD15 ~ HD15). Component Video Input Cable (HD15~3-RCA). Scart Video Input Cable (HD15~Scart). MAC Adapter. MAC Monitor Cable. DB9~Mini DIN-8 cable for RS-232 control. Luggage-Style ("wheelie") Carrying Case with Wheels, Telescoping Handle, and Detachable Computer Compartment. ATA-Style Shipping Case with Wheels and Telescoping Handle. Ceiling Mount. Ceiling Post and Plate. 33’ (10m) Extension Cable for Serial Cable. EZ-250 Local Control. NPC-1 Network Control.

Specifications Overview

Display Technology 3LCD
Brightness (ANSI) 4000 ANSI Lumens
Native Resolution 1024x768 (XGA)
Max. Computer Input UXGA
Max. Video Input 1080i
Contrast Ratio 500:1
Panel Size 0.8"
Lens Type (Throw:Width) 1.64~2.00:1
Anti Keystone Preset Image Offset, Ratio (Top:Bottom) 9:1
Keystone Correction Digital: up to 40° up or down

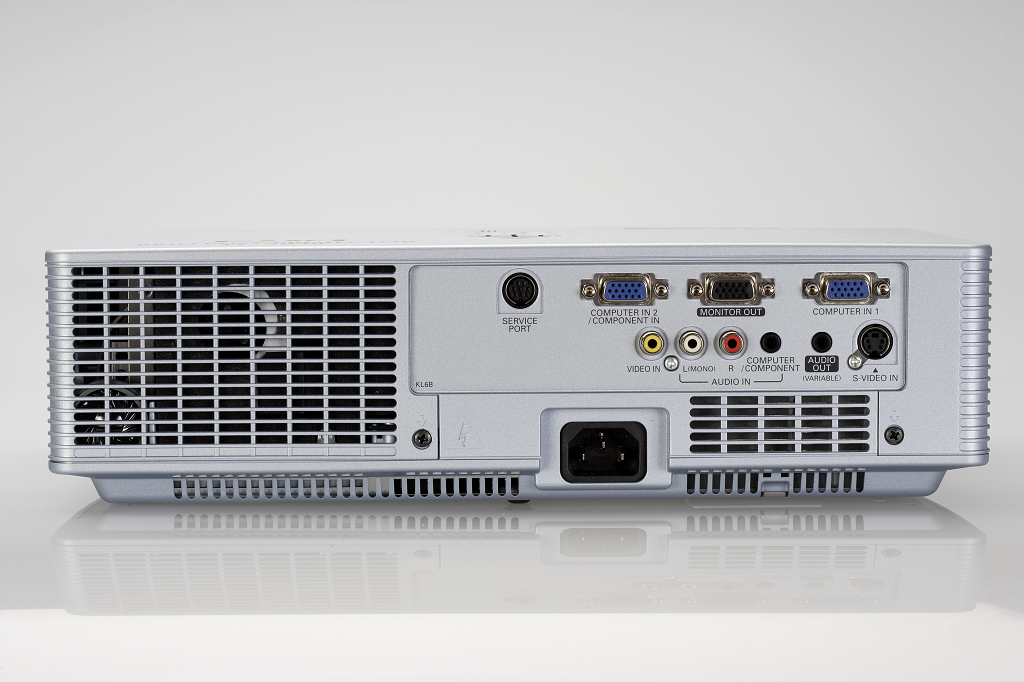

Inputs HD15 x 2, RCA x 1, S-Video x 1;
MiniStereo x 1, RCA x 2 audio
Outputs HD15 x 1, MiniStereo x 1 1/td>
Sound System 1 Watt; speaker: 1.1 in. (2.8 cm.) x 1
Network Control ---
Warranty 3 years
Lamp Life 2,500 hours
Lamp Part # 610 331 6345
Fan Noise as low as 29 dBA
Air Filter Standard
Maximum Pitch anywhere up to 360° off the horizontal axis
Weight 7.3 lb. (3.3 kg.)
Ceiling Mount Part # 0173-4305
Icon of LC-XB40 Cad DrawingLC-XB40 Cad Drawing86 KB
Icon of LC-XB40 Cad Drawing DxfLC-XB40 Cad Drawing Dxf0.4 MB
Icon of LC-XB40 Color Data SheetLC-XB40 Color Data SheetLC-XB40 Color Data Sheet0.8 MBPDF
Icon of LC-XB40 Lens ChartLC-XB40 Lens ChartLC-XB40 Lens Chart33 KBPDF
Icon of LC-XB40 Owners ManualLC-XB40 Owners ManualLC-XB40 Owners Manual1.8 MBPDF
Icon of LC-XB40 RS-232 Control SoftwareLC-XB40 RS-232 Control Software1.4 MB
Icon of LC-XB40 RS-232 Basic Serial CommandsLC-XB40 RS-232 Basic Serial CommandsLC-XB40 RS-232 Basic Serial Commands0.2 MBPDF
Icon of LC-XB40 RS-232 Extended Serial CommandsLC-XB40 RS-232 Extended Serial CommandsLC-XB40 RS-232 Extended Serial Commands0.3 MBPDF
Icon of LC-XB40 SpecificationsLC-XB40 SpecificationsLC-XB40 Specifications32 KBPDF
